| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PXG-M15-24WD15DC DC CONVERTER +/-15V 15W |
2,199 | 76.19 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 89% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
|
PXG-M15-24WS05DC DC CONVERTER 5V 15W |
3,132 | 76.78 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 3A | 15 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 88% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
PXG-M20-48WS12DC DC CONVERTER 12V 20W |
2,541 | 85.48 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.67A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 88.5% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
|
PXG-M20-24WS24DC DC CONVERTER 24V 20W |
2,747 | 85.48 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 833mA | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 88.5% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
|
PXG-M20-48WS24DC DC CONVERTER 24V 20W |
3,317 | 85.48 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 833mA | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 88.5% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
|
PXG-M20-24WS12DC DC CONVERTER 12V 20W |
2,345 | 85.48 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 88.5% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
|
PXG-M20-48WS05DC DC CONVERTER 5V 20W |
3,009 | 89.21 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXG-M (20W) | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 4A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 89.5% | Through Hole | 1.60 L x 1.00 W x 0.40 H (40.6mm x 25.4mm x 10.2mm) | ||
|
IQL48011A280V-009-RDC DC CONVERTER 28V 308W |
3,901 | 97.09 |
RFQ |
Datasheet |
8-DIP Module, 1/4 Brick | Tray | iQL (308W) | Active | Intermediate Bus Converter | 1 | 36V | 75V | 28V | - | - | - | 11A | 308 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 115°C | 92.5% | Through Hole | 2.28 L x 1.45 W x 0.52 H (57.9mm x 36.8mm x 13.2mm) | ||
|
|
IQL48025A120V-009-RDC DC CONVERTER 12V 300W |
3,641 | 97.09 |
RFQ |
Datasheet |
8-DIP Module, 1/4 Brick | Tray | iQL (300W) | Active | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 25A | 300 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 118°C | 93.5% | Through Hole | 2.28 L x 1.45 W x 0.52 H (57.9mm x 36.8mm x 13.2mm) | ||
|
PXD-M30-24WS12DC DC CONVERTER 12V 30W |
3,896 | 110.17 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXD-M (30W) | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 89% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
|
PXD-M30-48WD12DC DC CONVERTER +/-12V 30W |
3,789 | 113.02 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXD-M (30W) | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 90% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
|
PXD-M30-24WD12DC DC CONVERTER +/-12V 30W |
2,717 | 113.02 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXD-M (30W) | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 5 kV | ITE (Commercial), Medical | Adjustable Output | -40°C ~ 105°C (With Derating) | 86.5% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
PXD60-48WS24DC DC CONVERTER 24V 60W |
2,784 | 115.21 |
RFQ |
Datasheet |
6-DIP Module | Tube | PXD60 (60W) | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 2.5A | 60 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 91% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
GQA2W005A240V-N07-RDC DC CONVERTER 24V 120W |
3,926 | 121.85 |
RFQ |
Datasheet |
Quarter Brick | Tray | GQA120 (120W) | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 5A | 120 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 105°C | 87% | Through Hole | 2.39 L x 1.56 W x 0.50 H (60.6mm x 39.5mm x 12.7mm) | ||
|
CN300B110-24DC-DC, PCB MOUNT, HALF BRICK, IN |
2,048 | 159.54 |
RFQ |
Datasheet |
Half Brick | Bulk | CN-B110 (300W) | Active | Isolated Module | 1 | 43V | 160V | 24V | - | - | - | 12.5A | 300 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Load Sharing, Remote On/Off, Remote Sense | -40°C ~ 100°C | 90% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
PAH350S48-12DC DC CONVERTER 12V 350W |
3,478 | 164.46 |
RFQ |
Datasheet |
9-DIP Module, 1/2 Brick | Bulk | PAH350 (350W) | Active | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 29.2A | 350 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 100°C | 89% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
CN100A24-24DC DC CONVERTER 24V 100W |
3,786 | 185.72 |
RFQ |
Datasheet |
8-DIP Module, 1/4 Brick | Bulk | CN-A24 (100W) | Active | Isolated Module | 1 | 14.4V | 36V | 24V | - | - | - | 4.2A | 100 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 100°C | 88% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
CHVM3-12-0300NWDC DC CONVERTER -300V 3W |
2,669 | 208.38 |
RFQ |
Datasheet |
6-SIP Module | Box | CHVM (3W) | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | -300V | - | - | - | 10mA | 3 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -10°C ~ 60°C (With Derating) | - | Through Hole | 3.15 L x 0.47 W x 0.78 H (80.0mm x 12.0mm x 19.8mm) | ||
|
CHVM1R5-12-1500PDC DC CONVERTER 1500V 1.5W |
3,070 | 220.96 |
RFQ |
Datasheet |
7-SIP Module | Box | CHVM (3W) | Active | Non-Isolated PoL Module | 1 | 11V | 13V | 1500V | - | - | - | 1mA | 1.5 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -10°C ~ 50°C | - | Through Hole | 1.73 L x 0.63 W x 1.18 H (44.0mm x 16.0mm x 30.0mm) | ||
|

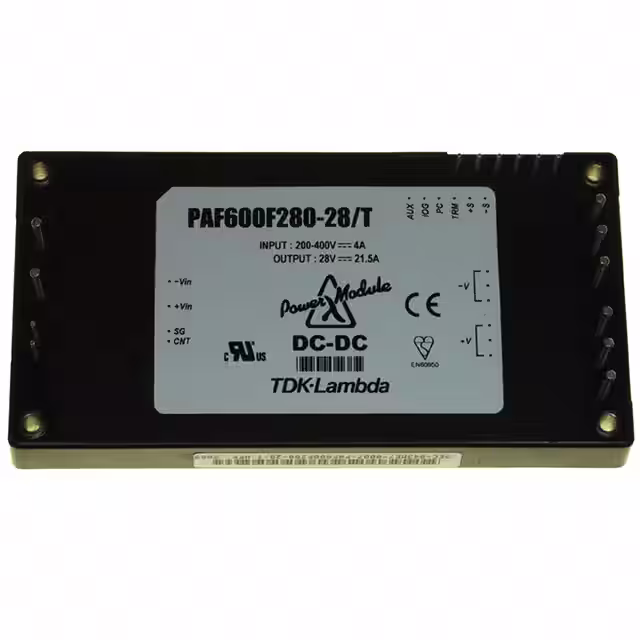

PAF600F280-28/TDC DC CONVERTER 16.8-33.6V 600W |
2,364 | 250.61 |
RFQ |
Datasheet |
Full Brick | Bulk | PAF600F280 (600W) | Active | Isolated Module | 1 | 200V | 400V | 16.8 ~ 33.6V | - | - | - | 21.5A | 600 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 100°C | 91% | Through Hole | 4.60 L x 2.40 W x 0.50 H (116.8mm x 61.0mm x 12.7mm) |
