Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output1	Voltage-Output2	Voltage-Output3	Voltage-Output4	Current-Output(Max)	Power(Watts)	Voltage-Isolation	Applications	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension
PDM2-S24-S15-S DC DC CONVERTER 15V 2W CUI Inc.	517	6.17	RFQ	Datasheet	6-SIP Module, 4 Leads	Tube	PDM2-S (2W)	Active	Isolated Module	1	21.6V	26.4V	15V	-	-	-	133mA	2 W	1.5 kV	ITE (Commercial)	SCP	-40°C ~ 105°C	84%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
PDM2-S24-S12-S DC DC CONVERTER 12V 2W CUI Inc.	280	6.17	RFQ	Datasheet	6-SIP Module, 4 Leads	Tube	PDM2-S (2W)	Active	Isolated Module	1	21.6V	26.4V	12V	-	-	-	167mA	2 W	1.5 kV	ITE (Commercial)	SCP	-40°C ~ 105°C	84%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
PQS075-S5-S5-S DC DC CONVERTER 5V 750MW CUI Inc.	737	2.35	RFQ	Datasheet	4-SIP Module	Tube	PQS075-S (0.75W)	Active	Isolated Module	1	4.75V	5.25V	5V	-	-	-	150mA	750 mW	1.5 kV	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	72%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm)
PDME1-S5-D5-S DC DC CONVERTER +/-5V 1W CUI Inc.	122	2.35	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	PDME1-S (1W)	Active	Isolated Module	2	4.5V	5.5V	5V	-5V	-	-	100mA, 100mA	1 W	1.5 kV	ITE (Commercial)	SCP	-40°C ~ 105°C (With Derating)	82%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm)
PDME1-S5-D15-S DC DC CONVERTER +/-15V 1W CUI Inc.	1,807	2.57	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	PDME1-S (1W)	Active	Isolated Module	2	4.5V	5.5V	15V	-15V	-	-	34mA, 34mA	1 W	1.5 kV	ITE (Commercial)	SCP	-40°C ~ 105°C (With Derating)	83%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm)
PDME1-S5-D12-S DC DC CONVERTER +/-12V 1W CUI Inc.	1,319	2.57	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	PDME1-S (1W)	Active	Isolated Module	2	4.5V	5.5V	12V	-12V	-	-	42mA, 42mA	1 W	1.5 kV	ITE (Commercial)	SCP	-40°C ~ 105°C (With Derating)	83%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm)
PDME1-S5-D9-S DC DC CONVERTER +/-9V 1W CUI Inc.	417	2.57	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	PDME1-S (1W)	Active	Isolated Module	2	4.5V	5.5V	9V	-9V	-	-	56mA, 56mA	1 W	1.5 kV	ITE (Commercial)	SCP	-40°C ~ 105°C (With Derating)	83%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm)
PDME1-S5-D3-S DC DC CONVERTER +/-3.3V 1W CUI Inc.	148	2.57	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	PDME1-S (1W)	Active	Isolated Module	2	4.5V	5.5V	3.3V	-3.3V	-	-	152mA, 152mA	1 W	1.5 kV	ITE (Commercial)	SCP	-40°C ~ 105°C (With Derating)	74%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm)
PDSE1-S12-S12-S DC-DC 1.5KV ISOLATED, 1 W, 10.8~ CUI Inc.	2,552	2.59	RFQ	Datasheet	4-SIP Module	Tube	PDSE1-S (1W)	Active	Isolated Module	1	10.8V	13.2V	12V	-	-	-	83mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	80%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm)
PDSE1-S12-S5-S DC-DC 1.5KV ISOLATED, 1 W, 10.8~ CUI Inc.	115	2.59	RFQ	Datasheet	4-SIP Module	Tube	PDSE1-S (1W)	Active	Isolated Module	1	10.8V	13.2V	5V	-	-	-	200mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	80%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm)
PDSE1-S24-S5-S DC-DC 1.5KV ISOLATED, 1 W, 21.6~ CUI Inc.	297	2.70	RFQ	Datasheet	4-SIP Module	Tube	PDSE1-S (1W)	Active	Isolated Module	1	21.6V	26.4V	5V	-	-	-	200mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	79%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm)

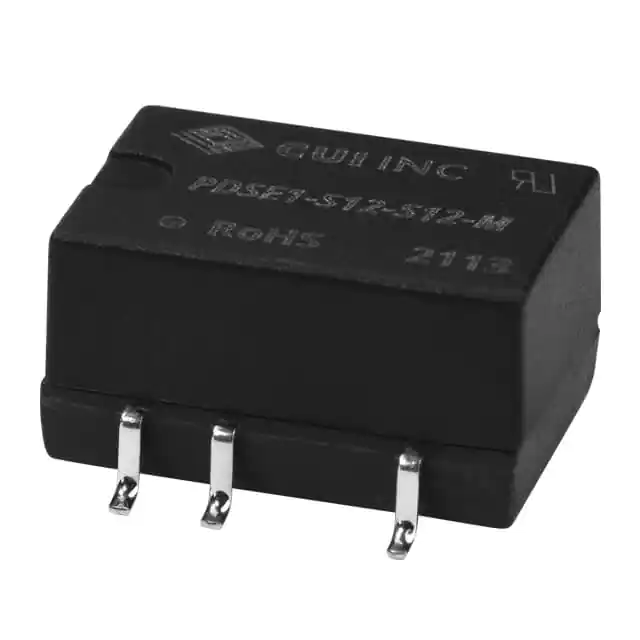

PDSE1-S12-S5-M-TR DC-DC ISOLATED 1.5KV, 1 W, 10.8~ CUI Inc.	1,652	3.42	RFQ	Datasheet	8-SMD Module, 5 Leads	Tape & Reel (TR),Cut Tape (CT)	PDSE1-M (1W)	Active	Isolated Module	1	10.8V	13.2V	5V	-	-	-	200mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	86%	Surface Mount	0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm)

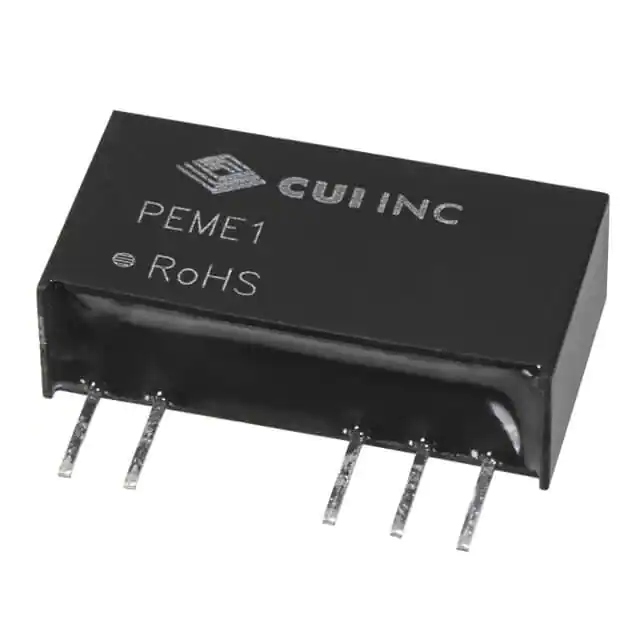

PEME1-S5-D15-S DC DC CONVERTER +/-15V 1W CUI Inc.	563	2.79	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	PEME1-S (1W)	Active	Isolated Module	2	4.5V	5.5V	15V	-15V	-	-	34mA, 34mA	1 W	3 kV	ITE (Commercial)	SCP	-40°C ~ 105°C (With Derating)	83%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm)
VX78039-500 DC DC CONVERTER 9V 4.5W CUI Inc.	570	2.81	RFQ	Datasheet	3-SIP Module	Tube	VX78-500	Active	Linear Regulator Replacement	1	12V	36V	9V	-	-	-	500mA	4.5 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	93%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.6mm x 7.6mm x 10.2mm)
PDSE1-S5-S5-M-TR DC DC CONVERTER 5V 1W CUI Inc.	735	3.55	RFQ	Datasheet	8-SMD Module, 5 Leads	Tape & Reel (TR),Cut Tape (CT)	PDSE1-M (1W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	200mA	1 W	1.5 kV	ITE (Commercial)	SCP	-40°C ~ 105°C (With Derating)	82%	Surface Mount	0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm)
PESE1-S5-S5-M-TR DC DC CONVERTER 5V 1W CUI Inc.	1,283	3.64	RFQ	Datasheet	8-SMD Module, 5 Leads	Tape & Reel (TR),Cut Tape (CT)	PESE1-M (1W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	200mA	1 W	3 kV	ITE (Commercial)	SCP	-40°C ~ 105°C (With Derating)	82%	Surface Mount	0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm)
V78E03-500-SMT-TR DC DC CONVERTER 3.3V CUI Inc.	300	3.80	RFQ	Datasheet	10-SMD Module, 8 Leads	Tape & Reel (TR),Cut Tape (CT)	V78E-500-SMT	Active	Non-Isolated PoL Module	1	4.75V	36V	3.3V	-	-	-	500mA	-	-	ITE (Commercial)	Remote On/Off, SCP	-40°C ~ 85°C (With Derating)	86%	Surface Mount	0.60 L x 0.33 W x 0.32 H (15.2mm x 8.5mm x 8.3mm)
VX7803-1000 DC DC CONVERTER 3.3V 3.3W CUI Inc.	734	3.39	RFQ	Datasheet	3-SIP Module	Tube	VX78-1000	Active	Linear Regulator Replacement	1	6V	36V	3.3V	-	-	-	1A	3.3 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	90%	Through Hole	0.45 L x 0.35 W x 0.69 H (11.5mm x 9.0mm x 17.5mm)
PDSE1-S24-D15-M-TR DC-DC ISOLATED 1.5KV, 1 W, 21.6~ CUI Inc.	1,297	4.39	RFQ	Datasheet	10-SMD Module, 6 Leads	Tape & Reel (TR),Cut Tape (CT)	PDSE1-M (1W)	Active	Isolated Module	2	21.6V	26.4V	15V	-15V	-	-	34mA, 34mA	1.02 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	83%	Surface Mount	0.60 L x 0.33 W x 0.29 H (15.2mm x 8.5mm x 7.3mm)
V78E03-1000-SMT-TR DC DC CONVERTER 3.3V 3.3W CUI Inc.	297	4.93	RFQ	Datasheet	10-SMD Module, 8 Leads	Tape & Reel (TR),Cut Tape (CT)	V78E-1000-SMT	Active	Non-Isolated PoL Module	1	6.5V	36V	3.3V	-	-	-	1A	3.3 W	-	ITE (Commercial)	Remote On/Off, SCP	-40°C ~ 85°C (With Derating)	90%	Surface Mount	0.60 L x 0.33 W x 0.32 H (15.2mm x 8.5mm x 8.3mm)
