| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC3SBW-24D05DC DC CONVERTER +/-5V 15W |
3,142 | 32.87 |
RFQ |
Datasheet |
6-DIP Module | Tube | EC3SBW (15W) | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 1.5A, 1.5A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | Through Hole | 1.00 L x 1.00 W x 0.40 H (25.4mm x 25.4mm x 10.2mm) | ||
|
|
EC3SBW-24D12DC DC CONVERTER +/-12V 15W |
3,923 | 32.87 |
RFQ |
Datasheet |
6-DIP Module | Tube | EC3SBW (15W) | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 625mA, 625mA | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | Through Hole | 1.00 L x 1.00 W x 0.40 H (25.4mm x 25.4mm x 10.2mm) | ||
|
EC4SBW-48S15DC DC CONVERTER 15V 20W |
2,994 | 35.26 |
RFQ |
Datasheet |
6-DIP Module | Tube | EC4SBW (20W) | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1.33A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | Through Hole | 1.00 L x 1.00 W x 0.40 H (25.4mm x 25.4mm x 10.2mm) | ||
|
EC7B-48S12DC DC CONVERTER 12V 20W |
2,234 | 43.47 |
RFQ |
Datasheet |
6-DIP Module | Tube | EC7B (20W) | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
EC9BW-48D15DC DC CONVERTER +/-15V 30W |
2,657 | 41.91 |
RFQ |
Datasheet |
6-DIP Module | Tube | EC9BW (30W) | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 91% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
|
EC9BW-24S05DC DC CONVERTER 5V 30W |
2,132 | 41.91 |
RFQ |
Datasheet |
6-DIP Module | Tube | EC9BW (30W) | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89.5% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|

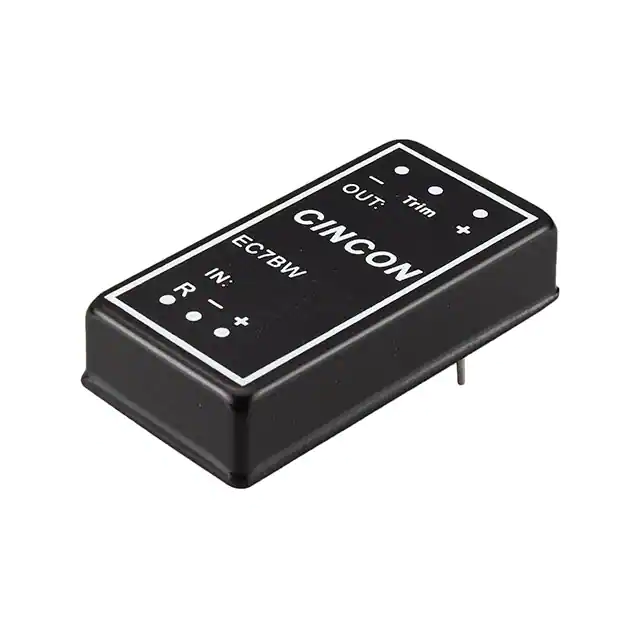

EC7BW-24S05DC DC CONVERTER 5V 20W |
3,889 | 42.07 |
RFQ |
Datasheet |
6-DIP Module | Tube | EC7BW (20W) | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
EC1SC02DC DC CONVERTER 12V 20W |
3,785 | 43.78 |
RFQ |
Datasheet |
8-DIP Module, 7 Leads | Tube | EC1SC (20W) | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -25°C ~ 100°C (With Derating) | 83% | Through Hole | 2.00 L x 1.60 W x 0.45 H (50.8mm x 40.6mm x 11.4mm) | ||
|
EC5SBW-48S05DC DC CONVERTER 5V 30W |
3,810 | 43.82 |
RFQ |
Datasheet |
6-DIP Module | Tube | EC5SBW (30W) | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | Through Hole | 1.00 L x 1.00 W x 0.40 H (25.4mm x 25.4mm x 10.2mm) | ||
|
|
EC5SBW-24D15DC DC CONVERTER +/-15V 30W |
2,854 | 43.82 |
RFQ |
Datasheet |
6-DIP Module | Tube | EC5SBW (30W) | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | Through Hole | 1.00 L x 1.00 W x 0.40 H (25.4mm x 25.4mm x 10.2mm) | ||
|
EC3SCW-24S12DC DC CONVERTER 12V 30W |
3,823 | 45.02 |
RFQ |
Datasheet |
8-DIP Module, 7 Leads | Tube | EC3SCW (30W) | Not For New Designs | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 91% | Through Hole | 2.00 L x 1.60 W x 0.40 H (50.8mm x 40.6mm x 10.2mm) | ||
|
|

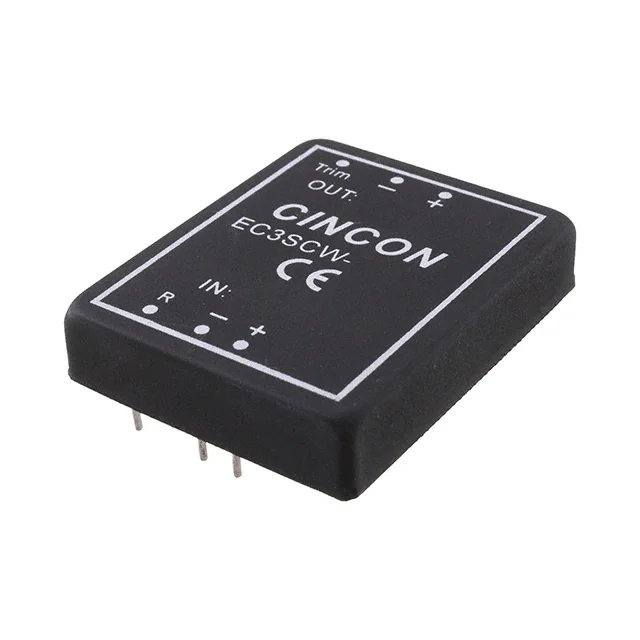

EC3SCW-24S05DC DC CONVERTER 5V 30W |
2,303 | 45.02 |
RFQ |
Datasheet |
8-DIP Module, 7 Leads | Tube | EC3SCW (30W) | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | Through Hole | 2.00 L x 1.60 W x 0.40 H (50.8mm x 40.6mm x 10.2mm) | ||
|
|
EC3SCW-24S3V3DC DC CONVERTER 3.3V 25W |
3,908 | 45.02 |
RFQ |
Datasheet |
8-DIP Module, 7 Leads | Tube | EC3SCW (30W) | Not For New Designs | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 7.5A | 25 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | Through Hole | 2.00 L x 1.60 W x 0.40 H (50.8mm x 40.6mm x 10.2mm) | ||
|

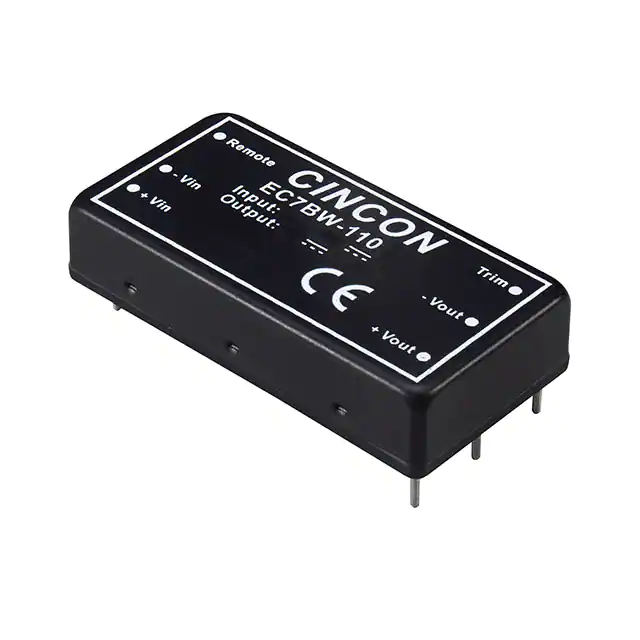

EC7BW-110S12DC DC CONVERTER 12V 20W |
3,955 | 48.50 |
RFQ |
Datasheet |
6-DIP Module | Tube | EC7BW-110 (20W) | Active | Isolated Module | 1 | 43V | 160V | 12V | - | - | - | 1.67A | 20 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | Through Hole | 2.00 L x 1.00 W x 0.40 H (50.8mm x 25.4mm x 10.2mm) | ||
|
|
EC1SC06DC DC CONVERTER +/-5V 20W |
3,831 | 49.02 |
RFQ |
Datasheet |
8-DIP Module, 7 Leads | Tube | EC1SC (20W) | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 2A, 2A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -25°C ~ 100°C (With Derating) | 83% | Through Hole | 2.00 L x 1.60 W x 0.45 H (50.8mm x 40.6mm x 11.4mm) | ||
|
|
EC1SC15DC DC CONVERTER +/-15V 20W |
2,438 | 49.02 |
RFQ |
Datasheet |
8-DIP Module, 7 Leads | Tube | EC1SC (20W) | Active | Isolated Module | 2 | 18V | 72V | 15V | -15V | - | - | 666mA, 666mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -25°C ~ 100°C (With Derating) | 84% | Through Hole | 2.00 L x 1.60 W x 0.45 H (50.8mm x 40.6mm x 11.4mm) | ||
|
ECLB40W-24D12DC DC CONVERTER +/-12V 40W |
3,544 | 50.00 |
RFQ |
Datasheet |
6-DIP Module | Tray | ECLB40W (40W) | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 1.667A, 1.667A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | Through Hole | 2.05 L x 1.20 W x 0.40 H (52.0mm x 30.5mm x 10.2mm) | ||
|
ECLB40W-110D12DC DC CONVERTER +/-12V 40W |
3,150 | 60.00 |
RFQ |
Datasheet |
6-DIP Module | Tray | ECLB40W-110S (40W) | Active | Isolated Module | 2 | 43V | 160V | 12V | -12V | - | - | 1.667A, 1.667A | 40 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | Through Hole | 2.05 L x 1.20 W x 0.40 H (52.0mm x 30.5mm x 10.2mm) | ||
|
CHB50-48S15DC DC CONVERTER 15V 50W |
2,522 | 63.72 |
RFQ |
Datasheet |
Half Brick | Tray | CHB50 (50W) | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 3.33A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|
CHB50-24S33DC DC CONVERTER 3.3V 33W |
2,639 | 63.72 |
RFQ |
Datasheet |
Half Brick | Tray | CHB50 (50W) | Active | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 10A | 33 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 81% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) |
