| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC7AW-48D12DC-DC CONVERTER |
3,863 | 26.90 |
RFQ |
Datasheet |
24-DIP Module, 9 Leads | Tube | EC7AW (10W) | Active | Isolated Module | 2 | 18V | 74V | 12V | -12V | - | - | 417mA, 417mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 89.5% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
|
EC7AW-24D15DC-DC CONVERTER |
2,109 | 26.90 |
RFQ |
Datasheet |
24-DIP Module, 9 Leads | Tube | EC7AW (10W) | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 89% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | ||
|
CQB75-300S15DCDC CONVERTER |
2,511 | 100.00 |
RFQ |
Datasheet |
Quarter Brick | Box | CQB75-300S (75W) | Active | Isolated Module | 1 | 180V | 450V | 15V | - | - | - | 5A | 75 W | 3 kV | ITE (Commercial) | Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 90% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
CQB200-24S28BRICK DC-DC CQB200-24S28 |
3,692 | 129.00 |
RFQ |
Datasheet |
Quarter Brick | Box | CQB200 (200W) | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 7.14A | 200 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 92% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
|
CQB200-24S24BRICK DC-DC CQB200-24S24 |
3,600 | 129.00 |
RFQ |
Datasheet |
Quarter Brick | Box | CQB200 (200W) | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 8.33A | 200 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 91.5% | Through Hole | 2.28 L x 1.45 W x 0.50 H (57.9mm x 36.8mm x 12.7mm) | ||
|
EC1SA02NSDC DC CONVERTER 12V 1W |
3,838 | 3.34 |
RFQ |
Datasheet |
8-SMD Module, 6 Leads | Strip | EC1SAN (1W) | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 79% | Surface Mount | 0.54 L x 0.36 W x 0.30 H (13.7mm x 9.2mm x 7.4mm) | ||
|
|
EC1SA03NSDC DC CONVERTER 15V 1W |
2,959 | 3.34 |
RFQ |
Datasheet |
8-SMD Module, 6 Leads | Strip | EC1SAN (1W) | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 79% | Surface Mount | 0.54 L x 0.36 W x 0.30 H (13.7mm x 9.2mm x 7.4mm) | ||
|

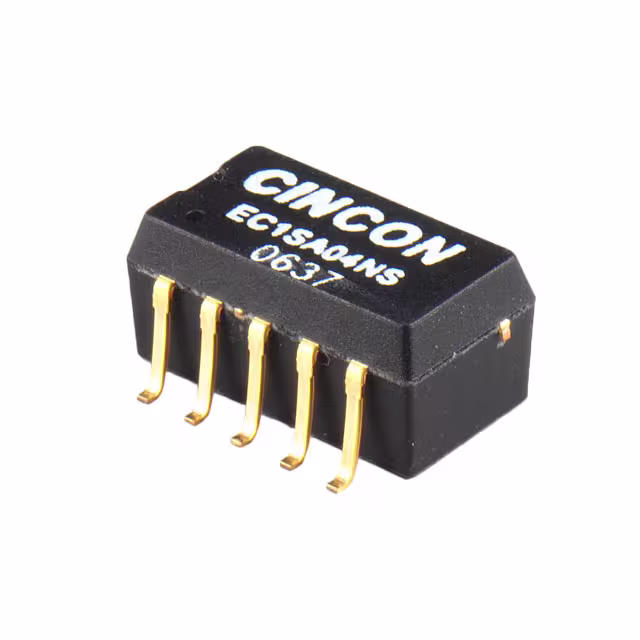

EC1SA04NSDC DC CONVERTER +/-12V 1W |
3,281 | 3.34 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Strip | EC1SAN (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | Surface Mount | 0.64 L x 0.36 W x 0.30 H (16.2mm x 9.2mm x 7.4mm) | ||
|
|
EC1SA05NSDC DC CONVERTER +/-15V 1W |
3,529 | 3.34 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Strip | EC1SAN (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 78% | Surface Mount | 0.64 L x 0.36 W x 0.30 H (16.2mm x 9.2mm x 7.4mm) | ||
|
|
EC1SA06NSDC DC CONVERTER +/-5V 1W |
3,801 | 3.34 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Strip | EC1SAN (1W) | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 74% | Surface Mount | 0.64 L x 0.36 W x 0.30 H (16.2mm x 9.2mm x 7.4mm) | ||
|
|
EC1SA11NSDC DC CONVERTER 5V 1W |
2,419 | 3.34 |
RFQ |
Datasheet |
8-SMD Module, 6 Leads | Strip | EC1SAN (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | Surface Mount | 0.54 L x 0.36 W x 0.30 H (13.7mm x 9.2mm x 7.4mm) | ||
|
|
EC1SA12NSDC DC CONVERTER 12V 1W |
2,690 | 3.34 |
RFQ |
Datasheet |
8-SMD Module, 6 Leads | Strip | EC1SAN (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | Surface Mount | 0.54 L x 0.36 W x 0.30 H (13.7mm x 9.2mm x 7.4mm) | ||
|
|
EC1SA13NSDC DC CONVERTER 15V 1W |
2,193 | 3.34 |
RFQ |
Datasheet |
8-SMD Module, 6 Leads | Strip | EC1SAN (1W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | Surface Mount | 0.54 L x 0.36 W x 0.30 H (13.7mm x 9.2mm x 7.4mm) | ||
|
|
EC1SA14NSDC DC CONVERTER +/-12V 1W |
2,895 | 3.34 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Strip | EC1SAN (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | Surface Mount | 0.64 L x 0.36 W x 0.30 H (16.2mm x 9.2mm x 7.4mm) | ||
|
|
EC1SA15NSDC DC CONVERTER +/-15V 1W |
3,896 | 3.34 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Strip | EC1SAN (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | Surface Mount | 0.64 L x 0.36 W x 0.30 H (16.2mm x 9.2mm x 7.4mm) | ||
|
|
EC1SA16NSDC DC CONVERTER +/-5V 1W |
2,797 | 3.34 |
RFQ |
Datasheet |
10-SMD Module, 6 Leads | Strip | EC1SAN (1W) | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 77% | Surface Mount | 0.64 L x 0.36 W x 0.30 H (16.2mm x 9.2mm x 7.4mm) | ||
|

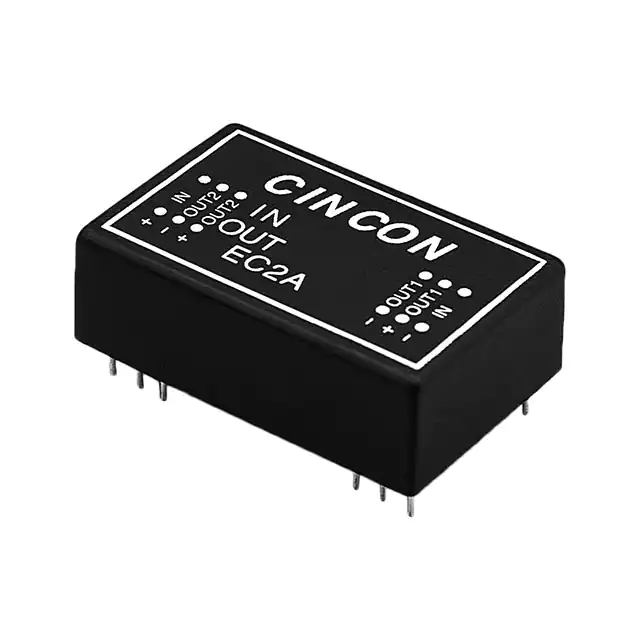

EC2A01DC DC CONVERTER 5V 1.5W |
3,284 | 6.77 |
RFQ |
24-DIP Module, 14 Leads | Tube | EC2A (1.5W) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 300mA | 1.5 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | |||
|
|
EC2A02DC DC CONVERTER 12V 1.5W |
2,395 | 6.77 |
RFQ |
24-DIP Module, 14 Leads | Tube | EC2A (1.5W) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 125mA | 1.5 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | |||
|
|
EC2A03DC DC CONVERTER 15V 1.5W |
2,122 | 6.77 |
RFQ |
24-DIP Module, 14 Leads | Tube | EC2A (1.5W) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 100mA | 1.5 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) | |||
|
|
EC2A11DC DC CONVERTER 5V 1.5W |
3,426 | 6.77 |
RFQ |
24-DIP Module, 14 Leads | Tube | EC2A (1.5W) | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 300mA | 1.5 W | 500 V | ITE (Commercial) | SCP | -25°C ~ 71°C | 50% | Through Hole | 1.25 L x 0.80 W x 0.40 H (31.8mm x 20.3mm x 10.2mm) |
