Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output1	Voltage-Output2	Voltage-Output3	Voltage-Output4	Current-Output(Max)	Power(Watts)	Voltage-Isolation	Applications	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension
AM1S-4815SZ DC DC CONVERTER 15V 999MW aimtec	2,858	5.54	RFQ	Datasheet	4-SIP Module	Tube	AM1S-Z (1W)	Active	Isolated Module	1	43.2V	52.8V	15V	-	-	-	66.6mA	999 mW	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	76%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.7mm x 6.0mm x 10.2mm)
AM1S-4812SZ DC DC CONVERTER 12V 1.2W aimtec	2,772	5.54	RFQ	Datasheet	4-SIP Module	Tube	AM1S-Z (1W)	Active	Isolated Module	1	43.2V	52.8V	12V	-	-	-	100mA	1.2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	77%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.7mm x 6.0mm x 10.2mm)
AM1SS-0303S-NZ DC DC CONVERTER 3.3V 1W aimtec	3,980	5.56	RFQ	Datasheet	4-SIP Module	Tube	AM1SS-NZ (1W)	Active	Isolated Module	1	2.97V	3.63V	3.3V	-	-	-	303mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C	72%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.1mm)
AM20EW-11003SH22-NZ DC DC CONVERTER 3.3V 17W aimtec	2,118	66.08	RFQ	Datasheet	6-DIP Module	Tube	AM20EW-NZ (20W)	Active	Isolated Module	1	40V	160V	3.3V	-	-	-	5A	17 W	2.25 kV	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	82%	Through Hole	2.00 L x 1.00 W x 0.46 H (50.8mm x 25.4mm x 11.8mm)
AM1LR-0503SH30-NZ DC DC CONVERTER 3.3V 1W aimtec	2,117	5.57	RFQ	Datasheet	10-SMD Module, 6 Leads	Tube	AM1LR-NZ (1W)	Active	Isolated Module	1	4.75V	5.25V	3.3V	-	-	-	243mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 71°C (With Derating)	58%	Surface Mount	0.60 L x 0.44 W x 0.28 H (15.2mm x 11.2mm x 7.3mm)

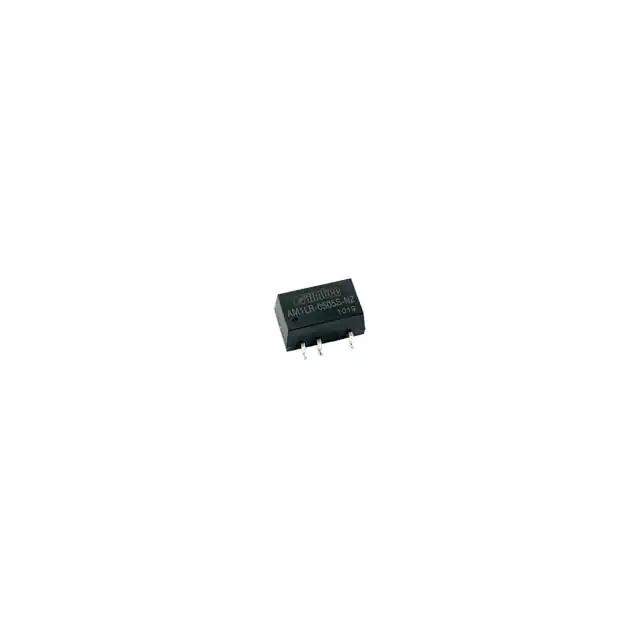

AM1LR-1205SH30-NZ DC DC CONVERTER 5V 1W aimtec	2,724	5.57	RFQ	Datasheet	SMD	Tube	AM1LR-NZ (1W)	Active	Isolated Module	1	11.4V	12.6V	5V	-	-	-	200mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	73%	Surface Mount	0.60 L x 0.44 W x 0.28 H (15.2mm x 11.2mm x 7.3mm)
AM1PS-0503SH30JZ DC DC CONVERTER 3.3V 1W aimtec	3,352	5.58	RFQ	Datasheet	8-DIP Module	Tube	AM1PS-JZ (1W)	Active	Isolated Module	1	4.5V	5.5V	3.3V	-	-	-	303mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 105°C	74%	Through Hole	0.50 L x 0.40 W x 0.32 H (12.7mm x 10.2mm x 8.2mm)
AM1SR-0503SJZ DC DC CONVERTER 3.3V 1W aimtec	3,033	5.58	RFQ	Datasheet	4-SIP Module	Tube	AM1SR-JZ (1W)	Active	Isolated Module	1	4.75V	5.25V	3V	-	-	-	200mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 85°C	68%	Through Hole	0.46 L x 0.40 W x 0.24 H (11.6mm x 10.2mm x 6.0mm)

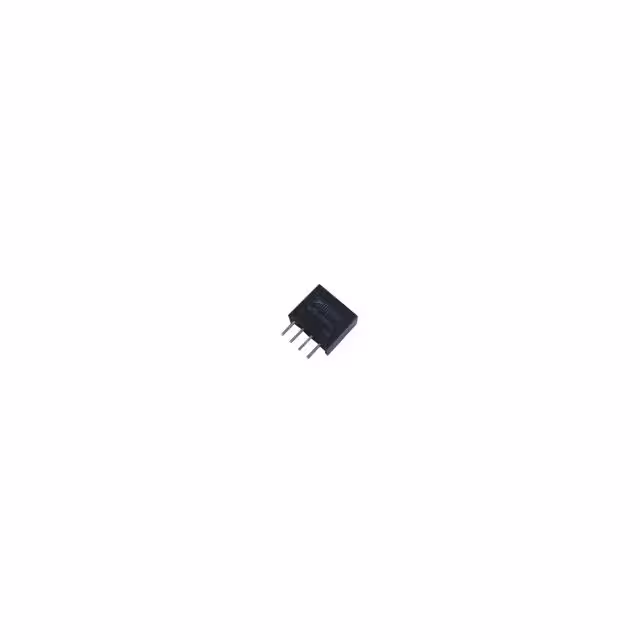

AM1SR-0512SJZ DC DC CONVERTER 12V 1W aimtec	3,083	5.58	RFQ	Datasheet	4-SIP Module	Tube	AM1SR-JZ (1W)	Active	Isolated Module	1	4.75V	5.25V	12V	-	-	-	62mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 85°C	73%	Through Hole	0.46 L x 0.40 W x 0.24 H (11.6mm x 10.2mm x 6.0mm)
AM1SR-0515SJZ DC DC CONVERTER 15V 1W aimtec	2,741	5.58	RFQ	Datasheet	4-SIP Module	Tube	AM1SR-JZ (1W)	Active	Isolated Module	1	4.75V	5.25V	15V	-	-	-	50mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 85°C	74%	Through Hole	0.46 L x 0.40 W x 0.24 H (11.6mm x 10.2mm x 6.0mm)
AM1PS-0515SH30JZ DC DC CONVERTER 15V 1W aimtec	2,458	5.58	RFQ	Datasheet	8-DIP Module	Tube	AM1PS-JZ (1W)	Active	Isolated Module	1	4.5V	5.5V	15V	-	-	-	67mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 105°C	83%	Through Hole	0.50 L x 0.40 W x 0.32 H (12.7mm x 10.2mm x 8.2mm)
AM1PS-0524SH30JZ DC DC CONVERTER 24V 1W aimtec	2,064	5.58	RFQ	Datasheet	8-DIP Module	Tube	AM1PS-JZ (1W)	Active	Isolated Module	1	4.5V	5.5V	24V	-	-	-	42mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 105°C	85%	Through Hole	0.50 L x 0.40 W x 0.32 H (12.7mm x 10.2mm x 8.2mm)
AM1D-4812SH30Z DC DC CONVERTER 12V 1W aimtec	2,168	5.61	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	AM1D-Z (1W)	Active	Isolated Module	1	43.2V	52.8V	12V	-	-	-	83mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	76%	Through Hole	0.76 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
AM1D-4815DH30Z DC DC CONVERTER +/-15V 1W aimtec	3,038	5.61	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	AM1D-Z (1W)	Active	Isolated Module	2	43.2V	52.8V	15V	-15V	-	-	33mA, 33mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	77%	Through Hole	0.76 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
AM1D-4815SH30Z DC DC CONVERTER 15V 1W aimtec	2,686	5.61	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	AM1D-Z (1W)	Active	Isolated Module	1	43.2V	52.8V	15V	-	-	-	67mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	77%	Through Hole	0.76 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
AM1D-4809SH30Z DC DC CONVERTER 9V 1W aimtec	2,317	5.61	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	AM1D-Z (1W)	Active	Isolated Module	1	43.2V	52.8V	9V	-	-	-	111mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	76%	Through Hole	0.76 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
AM1D-4812DH30Z DC DC CONVERTER +/-12V 1W aimtec	3,527	5.61	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	AM1D-Z (1W)	Active	Isolated Module	2	43.2V	52.8V	12V	-12V	-	-	42mA, 42mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	74%	Through Hole	0.76 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
AM1D-4809DH30Z DC DC CONVERTER +/-9V 1W aimtec	2,685	5.61	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	AM1D-Z (1W)	Active	Isolated Module	2	43.2V	52.8V	9V	-9V	-	-	56mA, 56mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	73%	Through Hole	0.76 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
AM1D-4824SH30Z DC DC CONVERTER 24V 1W aimtec	2,842	5.61	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	AM1D-Z (1W)	Active	Isolated Module	1	43.2V	52.8V	24V	-	-	-	42mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	76%	Through Hole	0.76 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
AM1D-4803DH30Z DC DC CONVERTER +/-3.3V 1W aimtec	2,156	5.61	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	AM1D-Z (1W)	Active	Isolated Module	2	43.2V	52.8V	3.3V	-3.3V	-	-	152mA, 152mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	62%	Through Hole	0.76 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
