Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output1	Voltage-Output2	Voltage-Output3	Voltage-Output4	Current-Output(Max)	Power(Watts)	Voltage-Isolation	Applications	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension
1T8CE_0503S3UP DC-DC GAPTEC Electronic	3,259	3.07	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8CE_3UP (1W)	Active	Isolated Module	1	4.5V	5.5V	3.3V	-	-	-	303mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	74%	Surface Mount	0.50 L x 0.43 W x 0.28 H (12.8mm x 10.8mm x 7.1mm)
1T8CE_0509S3UP DC-DC GAPTEC Electronic	2,209	3.07	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8CE_3UP (1W)	Active	Isolated Module	1	4.5V	5.5V	9V	-	-	-	112mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	83%	Surface Mount	0.50 L x 0.43 W x 0.28 H (12.8mm x 10.8mm x 7.1mm)
1T8A1_0515S1.5UP DC-DC GAPTEC Electronic	2,471	3.62	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8A1_1.5UP (1W)	Active	Isolated Module	1	4.5V	5.5V	15V	-	-	-	67mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	83%	Surface Mount	0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm)
1T8A1_0509S1.5UP DC-DC GAPTEC Electronic	3,269	3.62	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8A1_1.5UP (1W)	Active	Isolated Module	1	4.5V	5.5V	9V	-	-	-	111mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	83%	Surface Mount	0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm)

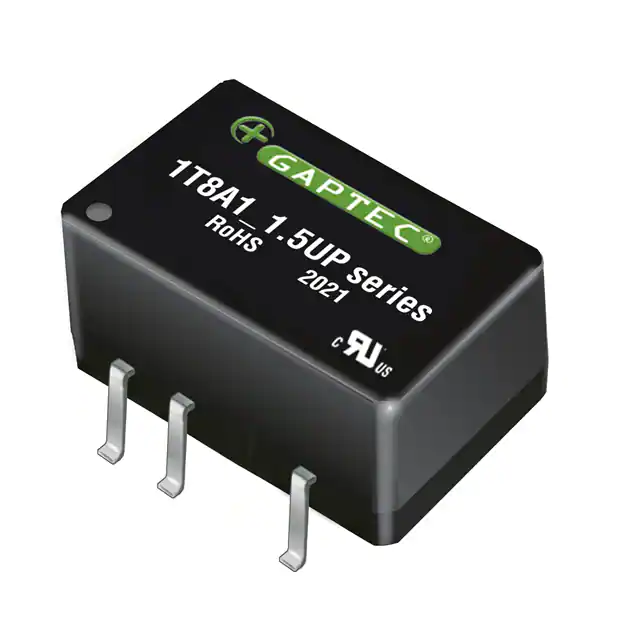

1T8A1_0512S1.5UP DC-DC GAPTEC Electronic	3,718	3.62	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8A1_1.5UP (1W)	Active	Isolated Module	1	4.5V	5.5V	12V	-	-	-	84mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	83%	Surface Mount	0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm)
1T8A1_0503S1.5UP DC-DC GAPTEC Electronic	2,784	3.62	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8A1_1.5UP (1W)	Active	Isolated Module	1	4.5V	5.5V	3.3V	-	-	-	303mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	74%	Surface Mount	0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm)
1T8A1_0524S1.5UP DC-DC GAPTEC Electronic	3,363	3.62	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8A1_1.5UP (1W)	Active	Isolated Module	1	4.5V	5.5V	24V	-	-	-	42mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	85%	Surface Mount	0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm)
1T8A1_0505S1.5UP DC-DC GAPTEC Electronic	2,347	3.62	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8A1_1.5UP (1W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	200mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	82%	Surface Mount	0.52 L x 0.33 W x 0.29 H (13.2mm x 8.5mm x 7.3mm)
LME78_09-1.0 DC-DC POL GAPTEC Electronic	3,260	4.07	RFQ	Datasheet	3-SIP Module	Tube	LME78_1.0	Active	Non-Isolated PoL Module	1	13V	36V	9V	-	-	-	1A	9 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	94%	Through Hole	0.46 L x 0.31 W x 0.41 H (11.6mm x 8.0mm x 10.4mm)
LME78_15-1.0 DC-DC POL GAPTEC Electronic	3,273	4.07	RFQ	Datasheet	3-SIP Module	Tube	LME78_1.0	Active	Non-Isolated PoL Module	1	20V	36V	15V	-	-	-	1A	15 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	96%	Through Hole	0.46 L x 0.31 W x 0.41 H (11.6mm x 8.0mm x 10.4mm)
2S4E_1207S1U DC-DC GAPTEC Electronic	3,168	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	10.8V	13.2V	7.2V	-	-	-	278mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	80%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_0505S1U DC-DC GAPTEC Electronic	3,156	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	400mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	81%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_1524S1U DC-DC GAPTEC Electronic	3,309	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	13.5V	16.5V	24V	-	-	-	83mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	84%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_0509S1U DC-DC GAPTEC Electronic	2,874	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	4.5V	5.5V	9V	-	-	-	222mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	83%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_1509S1U DC-DC GAPTEC Electronic	2,443	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	13.5V	16.5V	9V	-	-	-	222mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	80%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_4815S1U DC-DC GAPTEC Electronic	3,591	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	43.2V	52.8V	15V	-	-	-	133mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	82%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_1507S1U DC-DC GAPTEC Electronic	2,784	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	13.5V	16.5V	7.2V	-	-	-	278mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	83%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_4809S1U DC-DC GAPTEC Electronic	2,669	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	43.2V	52.8V	9V	-	-	-	222mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	83%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_4807S1U DC-DC GAPTEC Electronic	2,425	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	43.2V	52.8V	7.2V	-	-	-	278mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	83%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
2S4E_1505S1U DC-DC GAPTEC Electronic	2,565	4.28	RFQ	Datasheet	4-SIP Module	Tube	2S4E_1U (2W)	Active	Isolated Module	1	13.5V	16.5V	5V	-	-	-	400mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	81%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.7mm x 7.5mm x 10.2mm)
