| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
75QBW4_4824S2.25DC-DC |
2,063 | 88.14 |
RFQ |
Datasheet |
Quarter Brick | Tube | 75QBW4_2.25 (75W) | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 3.13A | 75 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 92% | Through Hole | 2.43 L x 1.58 W x 0.50 H (61.8mm x 40.2mm x 12.7mm) | ||
|
|
75QBW4_4805S2.25DC-DC |
2,519 | 88.14 |
RFQ |
Datasheet |
Quarter Brick | Tube | 75QBW4_2.25 (75W) | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 15A | 75 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 91% | Through Hole | 2.43 L x 1.58 W x 0.50 H (61.8mm x 40.2mm x 12.7mm) | ||
|
60DAW4_2405S1.6DC-DC |
3,727 | 88.26 |
RFQ |
Datasheet |
6-DIP Module | Tube | 60DAW4_1.6 (60W) | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 12A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 92.5% | Through Hole | 2.00 L x 1.00 W x 0.47 H (50.8mm x 25.4mm x 12.0mm) | ||
|
|
60DAW4_2412S1.6DC-DC |
3,583 | 88.26 |
RFQ |
Datasheet |
6-DIP Module | Tube | 60DAW4_1.6 (60W) | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 5A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 92.5% | Through Hole | 2.00 L x 1.00 W x 0.47 H (50.8mm x 25.4mm x 12.0mm) | ||
|
|
60DAW4_4815S1.6DC-DC |
3,378 | 88.26 |
RFQ |
Datasheet |
6-DIP Module | Tube | 60DAW4_1.6 (60W) | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 4A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 93% | Through Hole | 2.00 L x 1.00 W x 0.47 H (50.8mm x 25.4mm x 12.0mm) | ||
|
|
60DAW4_4812S1.6DC-DC |
2,923 | 88.26 |
RFQ |
Datasheet |
6-DIP Module | Tube | 60DAW4_1.6 (60W) | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 5A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 92.5% | Through Hole | 2.00 L x 1.00 W x 0.47 H (50.8mm x 25.4mm x 12.0mm) | ||
|
|
60DAW4_4805S1.6DC-DC |
2,479 | 88.26 |
RFQ |
Datasheet |
6-DIP Module | Tube | 60DAW4_1.6 (60W) | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 12A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 93% | Through Hole | 2.00 L x 1.00 W x 0.47 H (50.8mm x 25.4mm x 12.0mm) | ||
|
|
60DAW4_2412D1.6DC-DC |
3,685 | 88.26 |
RFQ |
Datasheet |
6-DIP Module | Tube | 60DAW4_1.6 (60W) | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 2.5A, 2.5A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 91% | Through Hole | 2.00 L x 1.00 W x 0.47 H (50.8mm x 25.4mm x 12.0mm) | ||
|
|
60DAW4_4812D1.6DC-DC |
2,237 | 88.26 |
RFQ |
Datasheet |
6-DIP Module | Tube | 60DAW4_1.6 (60W) | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 2.5A, 2.5A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 91% | Through Hole | 2.00 L x 1.00 W x 0.47 H (50.8mm x 25.4mm x 12.0mm) | ||
|
|
60DAW4_2415S1.6DC-DC |
3,424 | 88.26 |
RFQ |
Datasheet |
6-DIP Module | Tube | 60DAW4_1.6 (60W) | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 4A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 93% | Through Hole | 2.00 L x 1.00 W x 0.47 H (50.8mm x 25.4mm x 12.0mm) | ||
|
|
60DAW4_4815D1.6DC-DC |
3,565 | 88.26 |
RFQ |
Datasheet |
6-DIP Module | Tube | 60DAW4_1.6 (60W) | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 2A, 2A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 91% | Through Hole | 2.00 L x 1.00 W x 0.47 H (50.8mm x 25.4mm x 12.0mm) | ||
|
150QBW4_4824S2.25DC-DC |
2,195 | 113.15 |
RFQ |
Datasheet |
Quarter Brick | Tube | 150QBW4_2.25 (150W) | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 6.25A | 150 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 91% | Through Hole | 2.43 L x 1.58 W x 0.50 H (61.8mm x 40.2mm x 12.7mm) | ||
|
|
150QBW4_4812S2.25DC-DC |
3,758 | 113.15 |
RFQ |
Datasheet |
Quarter Brick | Tube | 150QBW4_2.25 (150W) | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 12.5A | 150 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 91% | Through Hole | 2.43 L x 1.58 W x 0.50 H (61.8mm x 40.2mm x 12.7mm) | ||
|
|

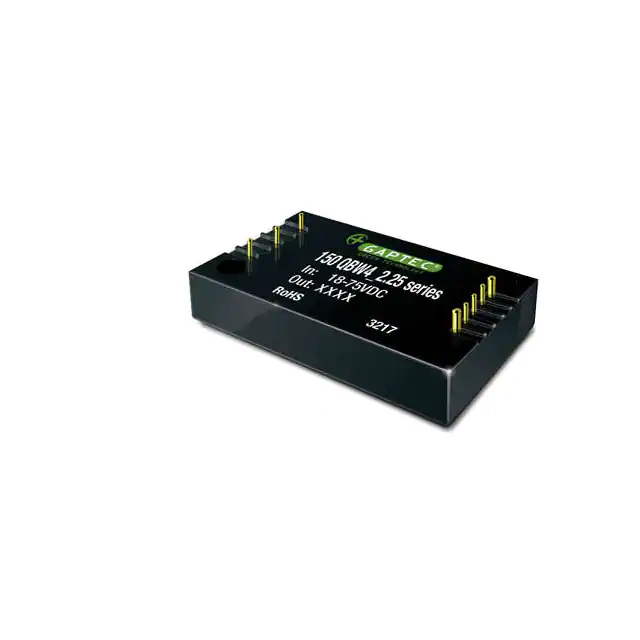

150QBW4_4848S2.25DC-DC |
2,848 | 113.15 |
RFQ |
Datasheet |
Quarter Brick | Tube | 150QBW4_2.25 (150W) | Active | Isolated Module | 1 | 18V | 75V | 48V | - | - | - | 3.13A | 150 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 91% | Through Hole | 2.43 L x 1.58 W x 0.50 H (61.8mm x 40.2mm x 12.7mm) | ||
|
150HBRW4_11012S3DC-DC |
2,765 | 102.40 |
RFQ |
Datasheet |
Half Brick | Tube | 150HBRW4_3 (150W) | Active | Isolated Module | 1 | 66V | 160V | 12V | - | - | - | 10A | 120 W | 3 kV | ITE (Commercial), Railway | Remote Sense | -40°C ~ 100°C (With Derating) | 89% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|

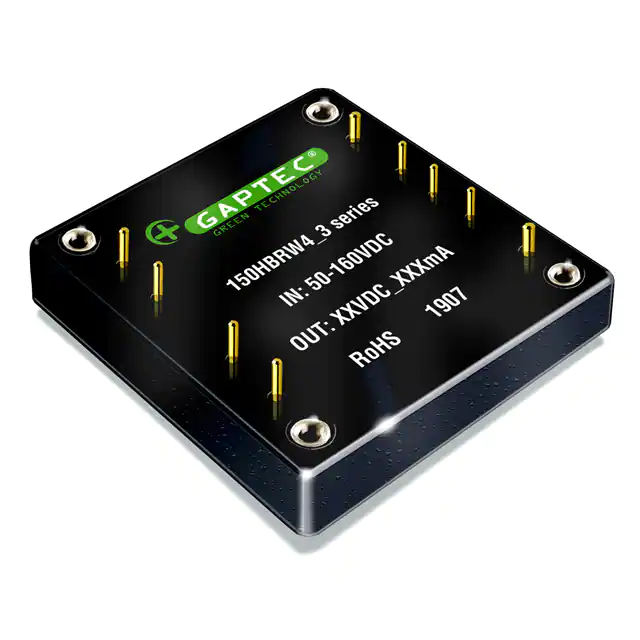

150HBRW4_11015S3DC-DC |
3,279 | 102.40 |
RFQ |
Datasheet |
Half Brick | Tube | 150HBRW4_3 (150W) | Active | Isolated Module | 1 | 66V | 160V | 15V | - | - | - | 10A | 150 W | 3 kV | ITE (Commercial), Railway | Remote Sense | -40°C ~ 100°C (With Derating) | 89% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
|
150HBRW4_11024S3DC-DC |
2,102 | 102.40 |
RFQ |
Datasheet |
Half Brick | Tube | 150HBRW4_3 (150W) | Active | Isolated Module | 1 | 66V | 160V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial), Railway | Remote Sense | -40°C ~ 100°C (With Derating) | 91% | Through Hole | 2.40 L x 2.28 W x 0.50 H (61.0mm x 57.9mm x 12.7mm) | ||
|
100QBW4_4824S2.25DC-DC |
2,717 | 105.59 |
RFQ |
Datasheet |
Quarter Brick | Tube | 100QBW4_2.25 (100W) | Active | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 4.2A | 101 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 93% | Through Hole | 2.43 L x 1.58 W x 0.50 H (61.8mm x 40.2mm x 12.7mm) | ||
|
|
100QBW4_4805S2.25DC-DC |
2,700 | 105.59 |
RFQ |
Datasheet |
Quarter Brick | Tube | 100QBW4_2.25 (100W) | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 20A | 100 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 93% | Through Hole | 2.43 L x 1.58 W x 0.50 H (61.8mm x 40.2mm x 12.7mm) | ||
|
|
100QBW4_4812S2.25DC-DC |
2,617 | 105.59 |
RFQ |
Datasheet |
Quarter Brick | Tube | 100QBW4_2.25 (100W) | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 8.3A | 100 W | 2.25 kV | ITE (Commercial) | Remote Sense | -40°C ~ 85°C (With Derating) | 93% | Through Hole | 2.43 L x 1.58 W x 0.50 H (61.8mm x 40.2mm x 12.7mm) |
