| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

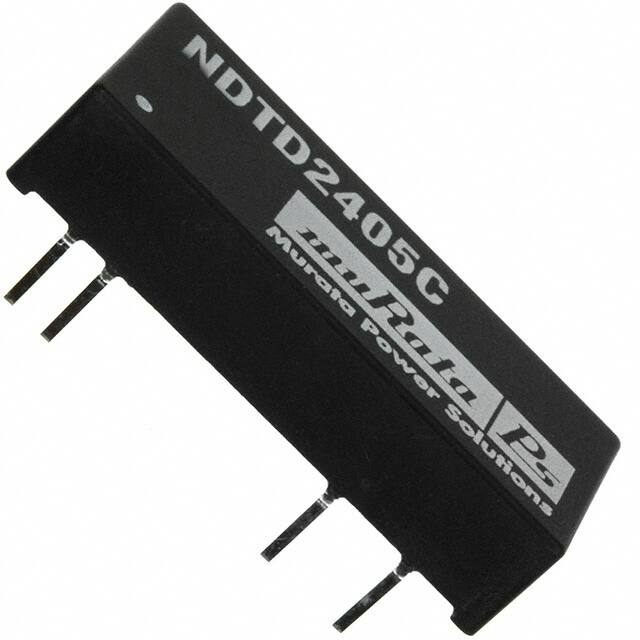

NDTD2405CDC DC CONVERTER +/-5V 3W |
2,315 | 17.82 |
RFQ |
Datasheet |
24-DIP Module (600 mil, 8 Leads) | Tube | NDTD (3W) | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 300mA, 300mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | Through Hole | 1.27 L x 0.58 W x 0.27 H (32.3mm x 14.7mm x 6.9mm) | ||
|
NCS6S4815CDC DC CONVERTER 15V 6W |
2,672 | 22.00 |
RFQ |
Datasheet |
24-DIP Module (600 mil, 7 Leads) | Tube | NCS6 (6W) | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 400mA | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | Through Hole | 1.26 L x 0.79 W x 0.39 H (32.0mm x 20.1mm x 9.9mm) | ||
|

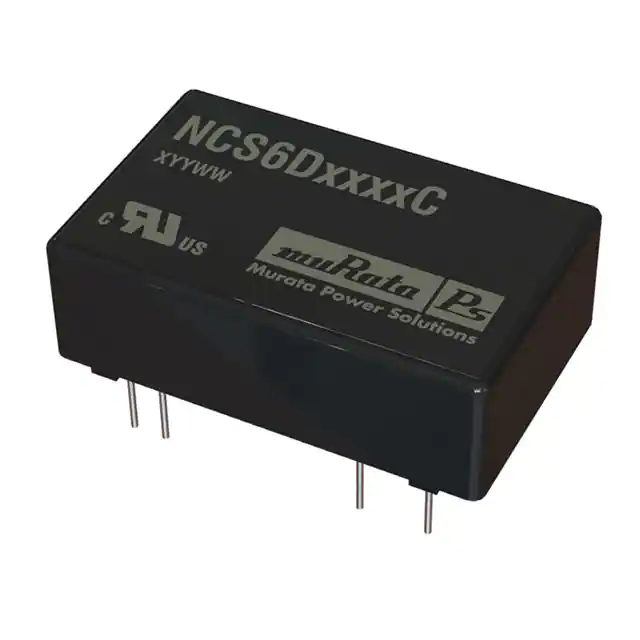

NCS6D4815CDC DC CONVERTER +/-15V 6W |
2,524 | 22.00 |
RFQ |
Datasheet |
24-DIP Module (600 mil, 8 Leads) | Tube | NCS6 (6W) | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 84% | Through Hole | 1.26 L x 0.79 W x 0.39 H (32.0mm x 20.0mm x 10.0mm) | ||
|
NCM6D0505ECDC DC CONVERTER +/-5V 6W |
2,755 | 27.07 |
RFQ |
Datasheet |
24-DIP Module, 8 Leads | Tube | NCM6 (6W) | Active | Isolated Module | 2 | 4.5V | 9V | 5V | -5V | - | - | 600mA, 600mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 80% | Through Hole | 1.26 L x 0.79 W x 0.43 H (32.0mm x 20.0mm x 10.8mm) | ||
|
|
NCM6D0515CDC DC CONVERTER +/-15V 6W |
2,501 | 27.07 |
RFQ |
Datasheet |
23-DIP Module, 7 Leads | Tube | NCM6 (6W) | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 82% | Through Hole | 1.26 L x 0.79 W x 0.43 H (32.0mm x 20.0mm x 10.8mm) | ||
|
|
NCM6S1212ECDC DC CONVERTER 12V 6W |
2,890 | 27.07 |
RFQ |
Datasheet |
24-DIP Module, 7 Leads | Tube | NCM6 (6W) | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 86% | Through Hole | 1.26 L x 0.79 W x 0.43 H (32.0mm x 20.0mm x 10.8mm) | ||
|
|
NCM6D1212CDC DC CONVERTER +/-12V 6W |
3,720 | 27.07 |
RFQ |
Datasheet |
23-DIP Module, 7 Leads | Tube | NCM6 (6W) | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 88% | Through Hole | 1.26 L x 0.79 W x 0.43 H (32.0mm x 20.0mm x 10.8mm) | ||
|
|
NCM6S0505CDC DC CONVERTER 5V 6W |
2,618 | 27.07 |
RFQ |
Datasheet |
23-SMD Module, 7 Leads | Tube | NCM6 (6W) | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 1.2A | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 80% | Through Hole | 1.26 L x 0.79 W x 0.43 H (32.0mm x 20.0mm x 10.8mm) | ||
|
|
NCM6D0515ECDC DC CONVERTER +/-15V 6W |
2,993 | 27.07 |
RFQ |
Datasheet |
24-DIP Module, 8 Leads | Tube | NCM6 (6W) | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 5.2 kV | ITE (Commercial), Medical | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 82% | Through Hole | 1.26 L x 0.79 W x 0.43 H (32.0mm x 20.0mm x 10.8mm) | ||
|

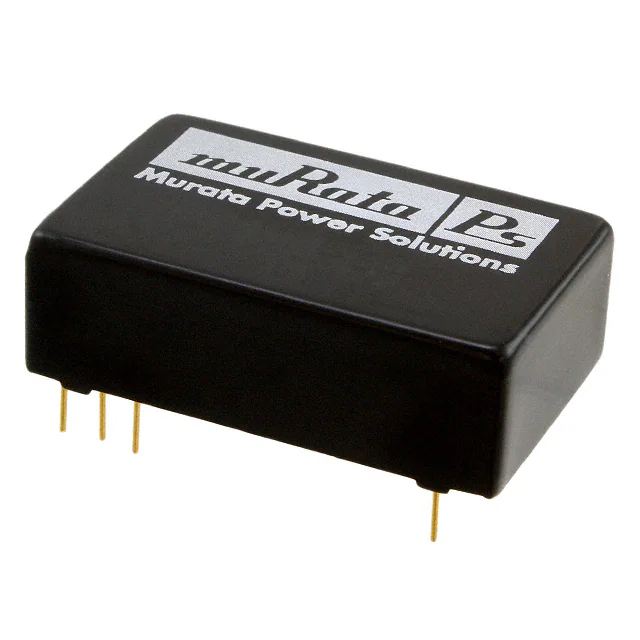

NCS12S4812CDC DC CONVERTER 12V 12W |
2,582 | 30.46 |
RFQ |
Datasheet |
24-DIP Module, 8 Leads | Tube | NCS12 (12W) | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1A | 12 W | 1.5 kV | ITE (Commercial) | OTP, SCP, UVLO | -40°C ~ 85°C | 84.5% | Through Hole | 1.26 L x 0.79 W x 0.41 H (32.0mm x 20.0mm x 10.5mm) | ||
|
NPH10S2405EICDC DC CONVERTER 5.1V 10W |
3,889 | 36.18 |
RFQ |
Datasheet |
6-DIP Module | Tube | NPH10S (10W) | Not For New Designs | Isolated Module | 1 | 18V | 36V | 5.1V | - | - | - | 1.96A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 110°C | 83% | Through Hole | 1.26 L x 0.98 W x 0.39 H (32.0mm x 24.9mm x 9.9mm) | ||
|
UEI15-120-Q48P-CDC DC CONVERTER 12V 15W |
3,803 | 37.09 |
RFQ |
Datasheet |
6-DIP Module | Tray | UEI15 (15W) | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.3A | 15 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 85% | Through Hole | 1.10 L x 0.96 W x 0.32 H (27.9mm x 24.4mm x 8.1mm) | ||
|
SPM15-120-Q48-CDC DC CONVERTER 12V 15W |
2,766 | 42.57 |
RFQ |
Datasheet |
6-DIP Module | Tube | SPM15 (15W) | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.3A | 15 W | 1.6 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 84% | Through Hole | 1.00 L x 1.00 W x 0.41 H (25.4mm x 25.4mm x 10.4mm) | ||
|
|
SPM15-033-Q12P-CDC DC CONVERTER 3.3V 15W |
3,420 | 42.91 |
RFQ |
Datasheet |
6-DIP Module | Tube | SPM15 (15W) | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 4.5A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | - | Through Hole | 1.00 L x 1.00 W x 0.41 H (25.4mm x 25.4mm x 10.4mm) | ||
|

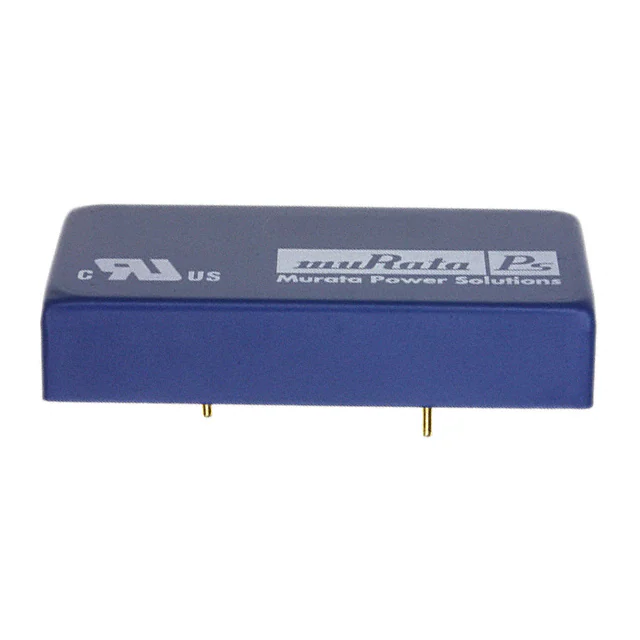

NPH15S2403EICDC DC CONVERTER 3.4V 15W |
2,119 | 48.13 |
RFQ |
Datasheet |
6-DIP Module | Tube | NPH15S (15W) | Not For New Designs | Isolated Module | 1 | 18V | 36V | 3.4V | - | - | - | 4.4A | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 110°C | 81% | Through Hole | 1.97 L x 0.98 W x 0.39 H (50.0mm x 24.9mm x 9.9mm) | ||
|

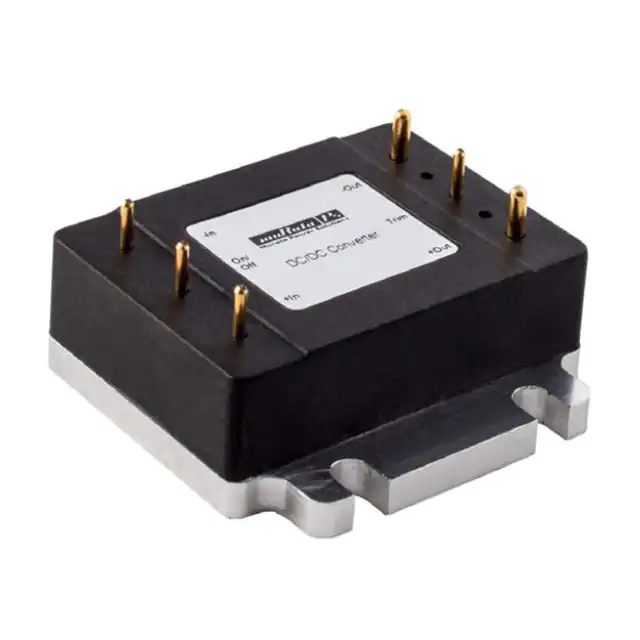

IRS-12/4.5-Q48N-CDC DC CONVERTER 12V 54W |
3,682 | 52.16 |
RFQ |
Datasheet |
9-DIP Module, 1/16 Brick | Tray | IRS (50W) | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 4.55A | 54 W | 2.25 kV | ITE (Commercial), Railway | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 89% | Through Hole | 1.44 L x 1.04 W x 0.50 H (36.5mm x 26.3mm x 12.7mm) | ||
|
UWE-5/24-Q12PB-CDC DC CONVERTER 5V 120W |
3,970 | 81.83 |
RFQ |
Datasheet |
Eighth Brick | Tray | UWE-Q12 | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 24A | 120 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 92% | Through Hole | 2.30 L x 0.90 W x 0.52 H (58.4mm x 22.9mm x 13.2mm) | ||
|

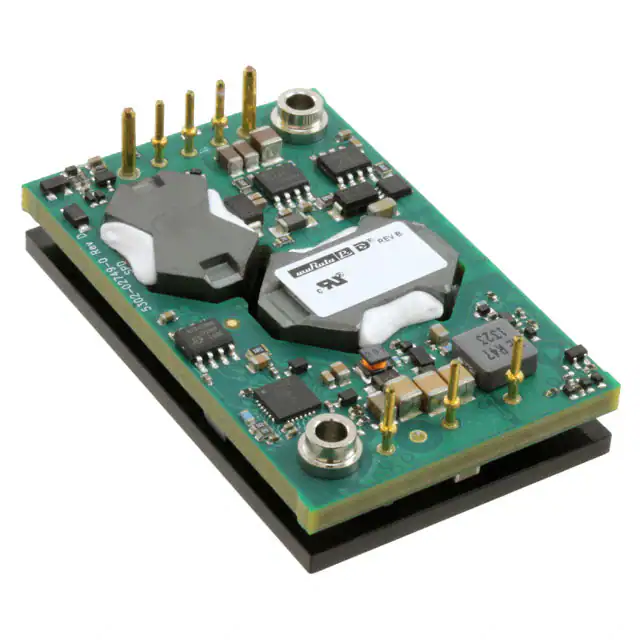

PAQ-29/5-D48NB-CDC DC CONVERTER 29.8V 150W |
2,233 | 85.12 |
RFQ |
Datasheet |
9-DIP Module | Tray | PAQ (150W) | Active | Isolated Module | 1 | 36V | 75V | 29.8V | - | - | - | 5A | 150 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C | 92.5% | Through Hole | 2.30 L x 1.45 W x 0.46 H (58.4mm x 36.8mm x 11.7mm) | ||
|

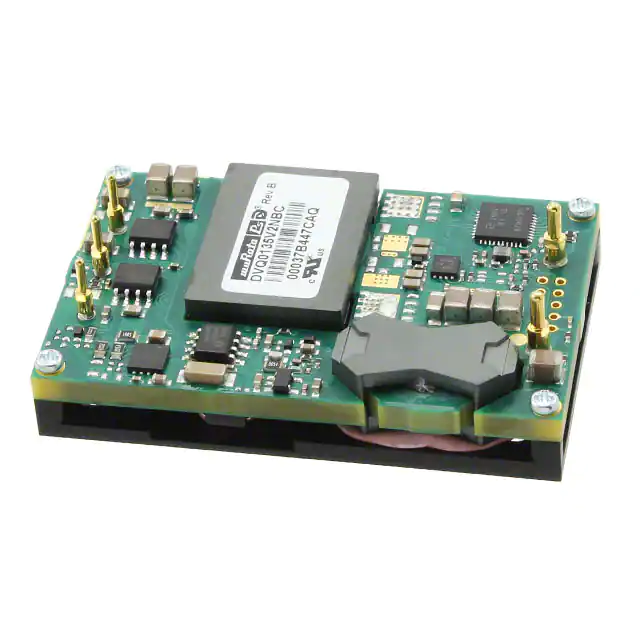

DBQ0135V2NBCDC DC CONVERTER 12V 420W |
2,999 | 107.01 |
RFQ |
Datasheet |
16-DIP Module (15 Leads), 1/4 Brick | Tray | DBQ (420W) | Active | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 95.2% | Through Hole | 2.30 L x 1.45 W x 0.52 H (58.4mm x 36.8mm x 13.2mm) | ||
|

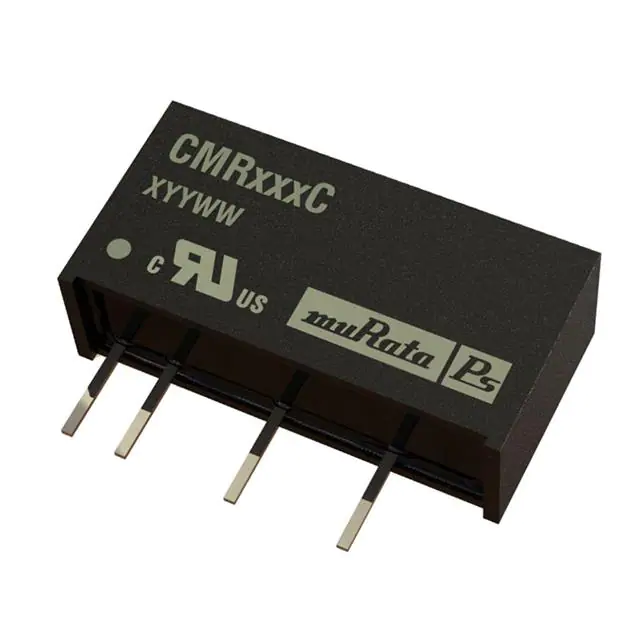

CMR100PCDC DC CONVERTER 5V 750MW |
2,532 | 3.38 |
RFQ |
Datasheet |
7-SIP Module, 4 Leads | Tube | CMR (0.75W) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 150mA | 750 mW | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 75.5% | Through Hole | 0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm) |
