| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | NumberofOutputs | Voltage-Input(Min) | Voltage-Input(Max) | Voltage-Output1 | Voltage-Output2 | Voltage-Output3 | Voltage-Output4 | Current-Output(Max) | Power(Watts) | Voltage-Isolation | Applications | Features | OperatingTemperature | Efficiency | MountingType | Size/Dimension | ControlFeatures | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NXF1S0303MC-R13DC DC CONVERTER 3.3V 1W |
3,461 | 4.62 |
RFQ |
Datasheet |
14-SMD Module, 5 Leads | Tape & Reel (TR) | NXF1 (1W) | Active | Isolated Module | 1 | 3.135V | 3.465V | 3.3V | - | - | - | 303mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 59% | Surface Mount | 0.60 L x 0.42 W x 0.19 H (15.2mm x 10.7mm x 4.8mm) | ||
|
|
NXF1S0305MC-R13DC DC CONVERTER 5V 1W |
2,432 | 4.62 |
RFQ |
Datasheet |
14-SMD Module, 5 Leads | Tape & Reel (TR) | NXF1 (1W) | Active | Isolated Module | 1 | 3.135V | 3.465V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 59% | Surface Mount | 0.60 L x 0.42 W x 0.20 H (15.2mm x 10.7mm x 5.0mm) | ||
|
|
NXF1S0505MC-R13DC DC CONVERTER 5V 1W |
3,777 | 4.62 |
RFQ |
Datasheet |
14-SMD Module, 5 Leads | Tape & Reel (TR) | NXF1 (1W) | Active | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 65% | Surface Mount | 0.60 L x 0.42 W x 0.20 H (15.2mm x 10.7mm x 5.0mm) | ||
|
NXJ2S1212MC-R13DC DC CONVERTER 12V 2W |
3,077 | 4.69 |
RFQ |
Datasheet |
12-SMD Module, 8 Leads | Tape & Reel (TR) | NXJ2 (2W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | Surface Mount | 0.63 L x 0.57 W x 0.17 H (16.0mm x 14.5mm x 4.4mm) | ||
|
|
NXJ2S1215MC-R13DC DC CONVERTER 15V 2W |
2,631 | 4.69 |
RFQ |
Datasheet |
12-SMD Module, 8 Leads | Tape & Reel (TR) | NXJ2 (2W) | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 133mA | 2 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 77.5% | Surface Mount | 0.63 L x 0.57 W x 0.17 H (16.0mm x 14.5mm x 4.4mm) | ||
|
|
NXJ2S2405MC-R13DC DC CONVERTER 5V 2W |
3,924 | 4.69 |
RFQ |
Datasheet |
12-SMD Module, 8 Leads | Tape & Reel (TR) | NXJ2 (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 76.5% | Surface Mount | 0.63 L x 0.57 W x 0.17 H (16.0mm x 14.5mm x 4.4mm) | ||
|
|
NXJ2S2415MC-R13DC DC CONVERTER 15V 2W |
3,728 | 4.69 |
RFQ |
Datasheet |
12-SMD Module, 8 Leads | Tape & Reel (TR) | NXJ2 (2W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 2 W | 5.2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 78.5% | Surface Mount | 0.63 L x 0.57 W x 0.17 H (16.0mm x 14.5mm x 4.4mm) | ||
.jpg)
|
MEA1D1509SCDC DC CONVERTER +/-9V 1W |
3,345 | 4.96 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | MEA1 (1W) | Active | Isolated Module | 2 | 13.5V | 16.5V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.2mm x 10.2mm) | ||
|
MTE1S1509MC-RDC DC CONVERTER 9V 1W |
3,860 | 5.53 |
RFQ |
Datasheet |
8-SMD Module | Tape & Reel (TR) | MTE1 (1W) | Active | Isolated Module | 1 | 13.5V | 16.5V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | Surface Mount | 0.50 L x 0.42 W x 0.28 H (12.8mm x 10.7mm x 7.0mm) | ||
|
|
MTE1S1512MC-RDC DC CONVERTER 12V 1W |
3,265 | 5.53 |
RFQ |
Datasheet |
8-SMD Module | Tape & Reel (TR) | MTE1 (1W) | Active | Isolated Module | 1 | 13.5V | 16.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87% | Surface Mount | 0.50 L x 0.42 W x 0.28 H (12.8mm x 10.7mm x 7.0mm) | ||
|
|
MTE1S1515MC-RDC DC CONVERTER 15V 1W |
2,746 | 5.53 |
RFQ |
Datasheet |
8-SMD Module | Tape & Reel (TR) | MTE1 (1W) | Active | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | Surface Mount | 0.50 L x 0.42 W x 0.28 H (12.8mm x 10.7mm x 7.0mm) | ||
|
|
MTE1S2405MC-RDC DC CONVERTER 5V 1W |
3,934 | 5.53 |
RFQ |
Datasheet |
8-SMD Module | Tape & Reel (TR) | MTE1 (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | Surface Mount | 0.50 L x 0.42 W x 0.28 H (12.8mm x 10.7mm x 7.0mm) | ||
|

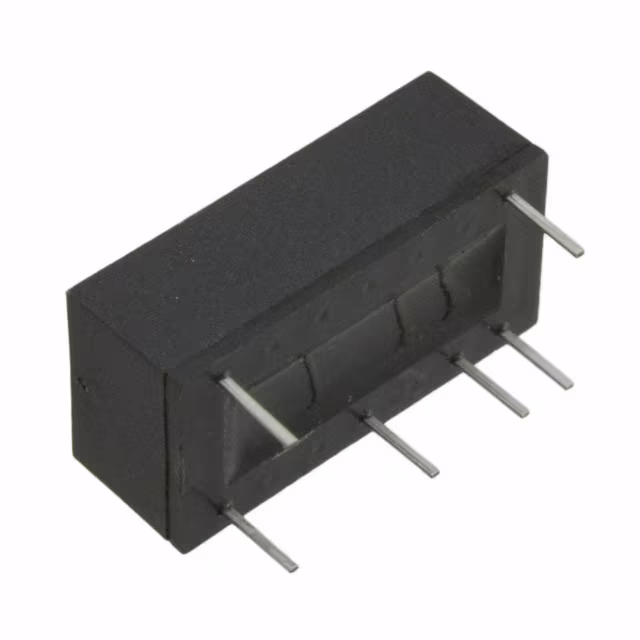

MEA1D2405DCDC DC CONVERTER +/-5V 1W |
3,433 | 4.96 |
RFQ |
Datasheet |
14-DIP Module, 6 Leads | Tube | MEA1 (1W) | Active | Isolated Module | 2 | 21.6V | 26.4V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84.5% | Through Hole | 0.78 L x 0.39 W x 0.28 H (19.7mm x 10.0mm x 7.0mm) | ||
|
MEA1D1505DCDC DC CONVERTER +/-5V 1W |
3,562 | 5.08 |
RFQ |
Datasheet |
14-DIP Module, 6 Leads | Tube | MEA1 (1W) | Obsolete | Isolated Module | 2 | 13.5V | 16.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | Through Hole | 0.78 L x 0.39 W x 0.28 H (19.7mm x 10.0mm x 7.0mm) | ||
|
|
MEA1D1512DCDC DC CONVERTER +/-12V 1W |
3,912 | 5.08 |
RFQ |
Datasheet |
14-DIP Module, 6 Leads | Tube | MEA1 (1W) | Obsolete | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 87.5% | Through Hole | 0.78 L x 0.39 W x 0.28 H (19.7mm x 10.0mm x 7.0mm) | ||
|
|
MEA1D4812SCDC DC CONVERTER +/-12V 1W |
2,658 | 5.08 |
RFQ |
Datasheet |
7-SIP Module, 5 Leads | Tube | MEA1 (1W) | Obsolete | Isolated Module | 2 | 43.2V | 52.8V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | Through Hole | 0.77 L x 0.24 W x 0.40 H (19.7mm x 6.2mm x 10.2mm) | ||
|
MEU1S1209ZCDC DC CONVERTER 9V 1W |
2,868 | 5.08 |
RFQ |
Datasheet |
4-DIP Module | Tube | MEU1 (1W) | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | Through Hole | 0.33 L x 0.24 W x 0.31 H (8.3mm x 6.1mm x 8.0mm) | ||
|
MEE1S2409DCDC DC CONVERTER 9V 1W |
2,245 | 5.14 |
RFQ |
Datasheet |
8-DIP Module, 4 Leads | Tube | MEE1 (1W) | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | Through Hole | 0.45 L x 0.39 W x 0.27 H (11.5mm x 9.8mm x 6.8mm) | ||
|
|
MEE1S0303DCDC DC CONVERTER 3.3V 1W |
3,284 | 5.14 |
RFQ |
Datasheet |
8-DIP Module, 4 Leads | Tube | MEE1 (1W) | Active | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 303mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78.5% | Through Hole | 0.45 L x 0.39 W x 0.27 H (11.5mm x 9.8mm x 6.8mm) | ||
|
|
MEE1S0512DCDC DC CONVERTER 12V 1W |
3,686 | 5.14 |
RFQ |
Datasheet |
8-DIP Module, 4 Leads | Tube | MEE1 (1W) | Active | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | Through Hole | 0.45 L x 0.39 W x 0.27 H (11.5mm x 9.8mm x 6.8mm) |
