| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2SBA20-E3/51BRIDGE RECT 1PHASE 200V 1.5A GBL |
3,368 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 200 V | 1.5 A | 1 V @ 750 mA | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBL | ||||||
|
|
G2SBA60-E3/51BRIDGE RECT 1PHASE 600V 1.5A GBL |
3,009 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Single Phase | Standard | 600 V | 1.5 A | 1 V @ 750 mA | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBL | ||||||
|
|
G2SBA60L-E3/51BRIDGE RECT 1PHASE 600V 1.5A GBL |
2,938 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 600 V | 1.5 A | 1 V @ 750 mA | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBL | ||||||
|
|
G2SBA80-E3/51BRIDGE RECT 1PHASE 800V 1.5A GBL |
3,664 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 800 V | 1.5 A | 1 V @ 750 mA | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBL | ||||||
|
G3SBA20L-E3/51BRIDGE RECT 1PHASE 200V 2.3A GBU |
3,507 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 200 V | 2.3 A | 1 V @ 2 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
G3SBA60-E3/51BRIDGE RECT 1PHASE 600V 2.3A GBU |
2,542 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 600 V | 2.3 A | 1 V @ 2 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
G3SBA60L-E3/51BRIDGE RECT 1PHASE 600V 2.3A GBU |
2,188 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 600 V | 2.3 A | 1 V @ 2 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
G3SBA80-E3/51BRIDGE RECT 1PHASE 800V 2.3A GBU |
3,315 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 800 V | 2.3 A | 1 V @ 2 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
G5SBA20-E3/51BRIDGE RECT 1PHASE 200V 2.8A GBU |
2,013 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 200 V | 2.8 A | 1.05 V @ 3 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
G5SBA60-E3/51BRIDGE RECT 1PHASE 600V 2.8A GBU |
2,118 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Single Phase | Standard | 600 V | 2.8 A | 1.05 V @ 3 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
G5SBA80-E3/51BRIDGE RECT 1PHASE 800V 2.8A GBU |
2,553 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Single Phase | Standard | 800 V | 2.8 A | 1.05 V @ 3 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|

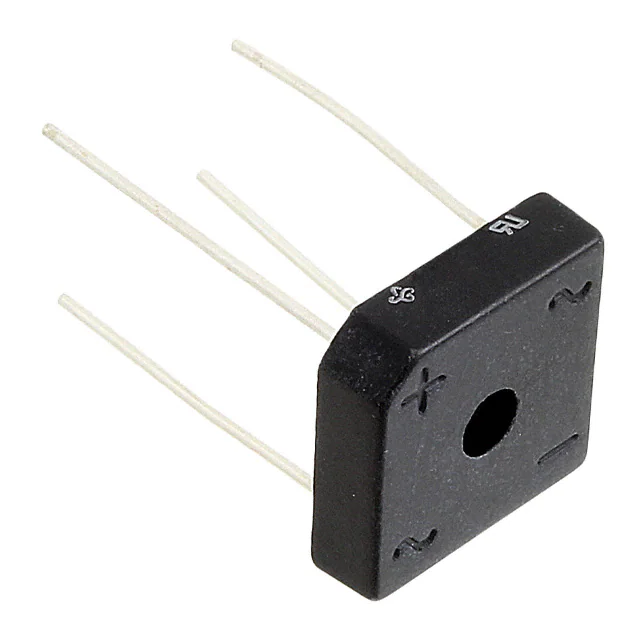

GBPC1005-E4/51BRIDGE RECT 1PHASE 50V 2A GBPC1 |
2,408 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 50 V | 2 A | 1 V @ 1.5 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-1 | ||||||
|
|
GBPC101-E4/51BRIDGE RECT 1PHASE 100V 2A GBPC1 |
2,382 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 100 V | 2 A | 1 V @ 1.5 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-1 | ||||||
|
|
GBPC106-E4/51BRIDGE RECT 1PHASE 600V 2A GBPC1 |
2,687 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 600 V | 2 A | 1 V @ 1.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-1 | ||||||
|
|
GBPC108-E4/51BRIDGE RECT 1PHASE 800V 2A GBPC1 |
2,290 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 800 V | 2 A | 1 V @ 1.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-1 | ||||||
|
|
GBPC110-E4/51BRIDGE RECT 1PHASE 1KV 2A GBPC1 |
3,387 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | Single Phase | Standard | 1 kV | 2 A | 1 V @ 1.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-1 | ||||||
|
GBPC2510W(UM)E4/51BRIDGE RECT 1P 1KV 25A GBPC-W |
2,066 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1 kV | 25 A | 1.1 V @ 12.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, GBPC-W | ||||||
|
GBPC2510(UM)E4/51BRIDGE RECT 1PHASE 1KV 25A GBPC |
2,168 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1 kV | 25 A | 1.1 V @ 12.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, GBPC | ||||||
|
|
GBU4A-E3/51BRIDGE RECT 1PHASE 50V 3A GBU |
2,644 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Single Phase | Standard | 50 V | 3 A | 1 V @ 4 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | ||||||
|
|
GBU6A-E3/51BRIDGE RECT 1PHASE 50V 3.8A GBU |
2,713 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Single Phase | Standard | 50 V | 3.8 A | 1 V @ 6 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU |
