| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KBP04M-M4/51BRIDGE RECT 1P 400V 1.5A KBPM |
3,033 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Single Phase | Standard | 400 V | 1.5 A | 1 V @ 1 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBPM | ||||||
|
|
KBP06M-M4/51BRIDGE RECT 1P 600V 1.5A KBPM |
2,355 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Single Phase | Standard | 600 V | 1.5 A | 1.1 V @ 3.14 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBPM | ||||||
|
|
KBP08M-M4/51BRIDGE RECT 1P 800V 1.5A KBPM |
2,675 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Single Phase | Standard | 800 V | 1.5 A | 1.1 V @ 3.14 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBPM | ||||||
|
|
KBP10M-M4/51BRIDGE RECT 1PHASE 1KV 1.5A KBPM |
2,310 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | Single Phase | Standard | 1 kV | 1.5 A | 1.1 V @ 3.14 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBPM | ||||||
|
BU1006A5S-M3/45BRIDGE RECT 1P 600V 10A BU-5S |
3,527 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 600 V | 10 A | 1.1 V @ 5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S | ||||||
|
|
BU10085S-M3/45BRIDGE RECT 1P 800V 10A BU-5S |
2,703 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 800 V | 10 A | 1.05 V @ 5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S | ||||||
|
|
BU1008A5S-M3/45BRIDGE RECT 1P 800V 10A BU-5S |
2,933 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 800 V | 10 A | 1.1 V @ 5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S | ||||||
|
BU10105S-M3/45BRIDGE RECT 1P 1KV 10A BU-5S |
2,559 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 1 kV | 10 A | 1.05 V @ 5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S | ||||||
|
BU15085S-M3/45BRIDGE RECT 1P 800V 15A BU-5S |
3,994 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 800 V | 15 A | 1.05 V @ 7.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S | ||||||
|
|
BU15105S-M3/45BRIDGE RECT 1P 1KV 15A BU-5S |
2,292 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 1 kV | 15 A | 1.05 V @ 7.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S | ||||||
|
BU20065S-M3/45BRIDGE RECT 1P 600V 20A BU-5S |
3,480 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 600 V | 20 A | 1.05 V @ 10 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S | ||||||
|
|

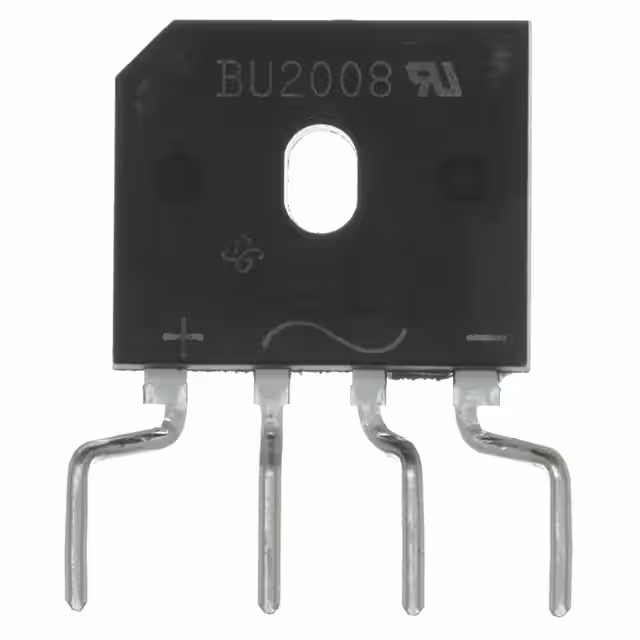

BU20085S-M3/45BRIDGE RECT 1P 800V 20A BU-5S |
2,522 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 800 V | 20 A | 1.05 V @ 10 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S | ||||||
|

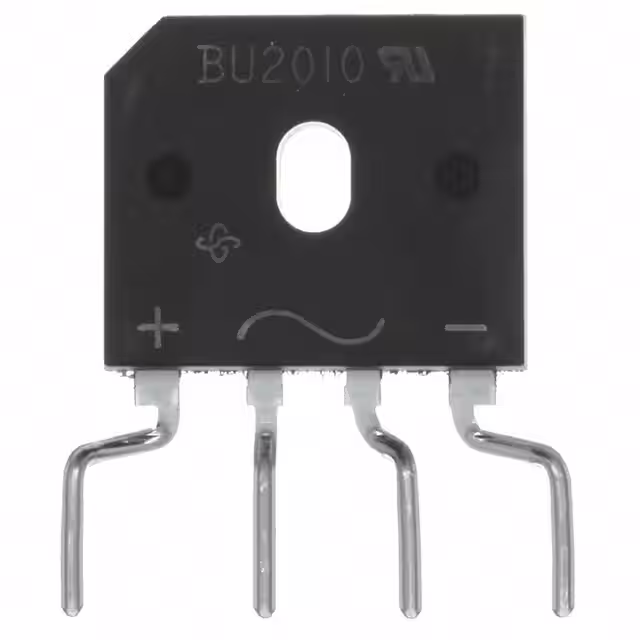

BU20105S-M3/45BRIDGE RECT 1P 1KV 20A BU-5S |
2,172 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 1 kV | 20 A | 1.05 V @ 10 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, BU-5S | ||||||
|
G2SBA80-M3/45BRIDGE RECT 1PHASE 800V 1.5A GBL |
3,295 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 800 V | 1.5 A | 1 V @ 750 mA | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBL | ||||||
|
GSIB6A20N-M3/45BRIDGE RECT 1P 200V 15A GSIB-5S |
3,959 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 200 V | 15 A | 1 V @ 3 A | 10 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GSIB-5S | ||||||
|
|
GSIB6A40N-M3/45BRIDGE RECT 1P 400V 15A GSIB-5S |
3,908 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 400 V | 15 A | 1 V @ 3 A | 10 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GSIB-5S | ||||||
|
|
GSIB6A60N-M3/45BRIDGE RECT 1P 600V 15A GSIB-5S |
3,663 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 600 V | 15 A | 1 V @ 3 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GSIB-5S | ||||||
|
|
GSIB6A80N-M3/45BRIDGE RECT 1P 800V 15A GSIB-5S |
2,592 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | Single Phase | Standard | 800 V | 15 A | 1 V @ 3 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GSIB-5S | ||||||
|
VS-SA60BA60BRIDGE RECT 1P 600V 61A SOT227 |
2,071 | 0.00 |
RFQ |
Bulk | - | Obsolete | Single Phase | Standard | 600 V | 61 A | - | - | - | Chassis Mount | SOT-227-4, miniBLOC | |||||||
|
|
VS-93MT160KS90PBFBRIDGE RECT 3P 1.6KV 90A MT-K |
2,448 | 0.00 |
RFQ |
Datasheet |
Tray | - | Active | Three Phase | Standard | 1.6 kV | 90 A | - | - | -40°C ~ 150°C (TJ) | Chassis Mount | MT-K Module |
