| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS1503MBRIDGE RECT GLASS 200V 15A RS15M |
2,334 | 1.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 15 A | 1.05 V @ 7.5 A | 500 nA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15M | ||||||
|
RS1506MBRIDGE RECT GLASS 800V 15A RS15M |
3,393 | 1.00 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 15 A | 1.05 V @ 7.5 A | 500 nA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15M | ||||||
|

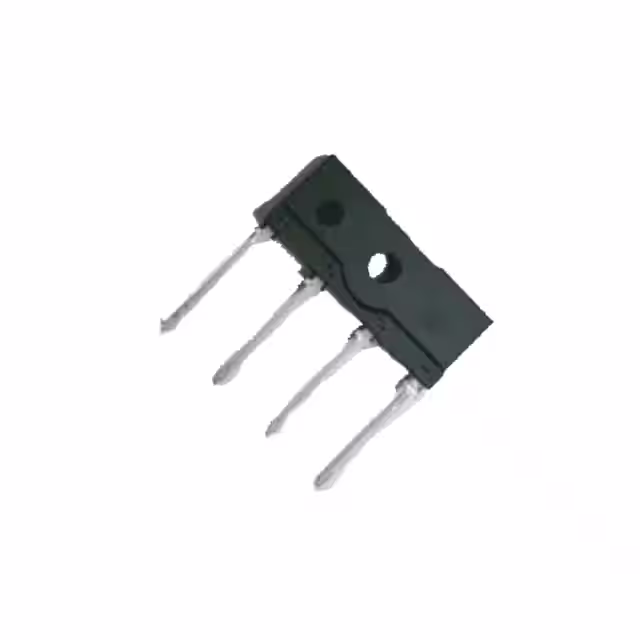

RS1502MLSBRDGE RCT GLASS 100V 15A RS10MLS |
2,358 | 1.02 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 15 A | 1.1 V @ 7.5 A | 200 nA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15MLS | ||||||
|
|
RS1506MLSBRDGE RCT GLASS 800V 15A RS10MLS |
3,160 | 1.02 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 15 A | 1.1 V @ 7.5 A | 200 nA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15MLS | ||||||
|
|
RS1507MLSBRDGE RC GLASS 1000V 15A RS10MLS |
2,725 | 1.02 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 15 A | 1.1 V @ 7.5 A | 200 nA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15MLS | ||||||
|
|
RS1504MLSBRDGE RCT GLASS 400V 15A RS10MLS |
2,147 | 1.02 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 15 A | 1.1 V @ 7.5 A | 200 nA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15MLS | ||||||
|
|
RS1503MLSBRDGE RCT GLASS 200V 15A RS10MLS |
2,557 | 1.02 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 15 A | 1.1 V @ 7.5 A | 200 nA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15MLS | ||||||
|
|
RS1501MLSBRIDGE RCT GLASS 50V 15A RS10MLS |
2,345 | 1.02 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 15 A | 1.1 V @ 7.5 A | 200 nA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15MLS | ||||||
|

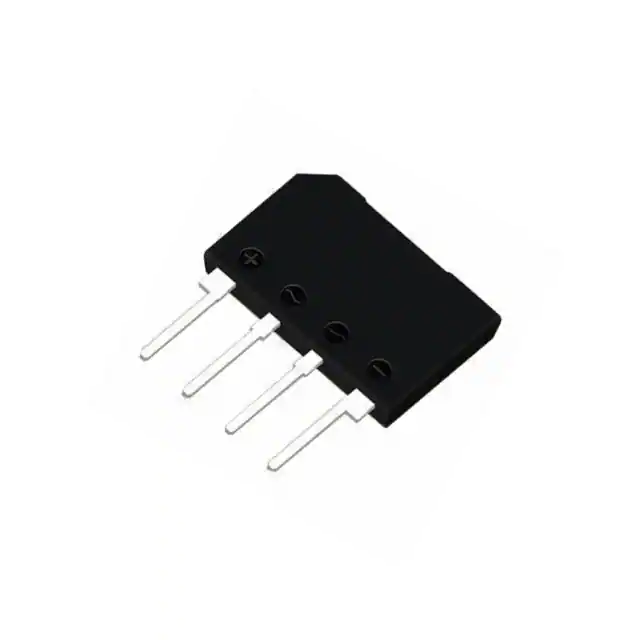

RBU2505M-C-LVBRIDGE RCT GLASS LV 600V 25A RBU |
2,056 | 1.02 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 25 A | 920 mV @ 12.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBU | ||||||
|
|
RBU1005M-C-LVBRIDGE RCT GLASS LV 600V 10A RBU |
3,244 | 1.02 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 10 A | 950 mV @ 10 A | 1 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RBU | ||||||
|
|
RS1505MLSBRDGE RCT GLASS 600V 15A RS10MLS |
2,050 | 1.02 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 15 A | 1.1 V @ 7.5 A | 200 nA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-15MLS | ||||||
|
RS605M-C-LVBRIDGE RCT GLASS 600V LV 6A RS6M |
3,258 | 1.15 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 6 A | 900 mV @ 6 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-6M | ||||||
|
|
RS2003MBRIDGE RECT GLASS 200V 20A RS20M |
3,702 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 20 A | 1.1 V @ 10 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20M | ||||||
|
|
RS2004MBRIDGE RECT GLASS 400V 20A RS20M |
2,825 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 20 A | 1.1 V @ 10 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20M | ||||||
|
|
RS2005MBRIDGE RECT GLASS 600V 20A RS20M |
3,016 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 20 A | 1.1 V @ 10 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20M | ||||||
|
|
RS2006MBRIDGE RECT GLASS 800V 20A RS20M |
2,607 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 20 A | 1.1 V @ 10 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20M | ||||||
|
|
RS2002MBRIDGE RECT GLASS 100V 20A RS20M |
3,984 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 20 A | 1.1 V @ 10 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20M | ||||||
|
|
RS2007MBRIDGE REC GLASS 1000V 20A RS20M |
2,103 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 20 A | 1.1 V @ 10 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20M | ||||||
|
|
RS2001MBRIDGE RECT GLASS 50V 20A RS-20M |
2,561 | 1.16 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 20 A | 1.1 V @ 10 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20M | ||||||
|
|
RS2006MLSBRDGE RCT GLASS 800V 20A RS10MLS |
3,353 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 20 A | 1 V @ 10 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, RS-20MLS |
