Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeConfiguration	DiodeType	Voltage-DCReverse(Vr)(Max)	Current-AverageRectified(Io)(perDiode)	Voltage-Forward(Vf)(Max)@If	Speed	ReverseRecoveryTime(trr)	Current-ReverseLeakage@Vr	OperatingTemperature-Junction	MountingType

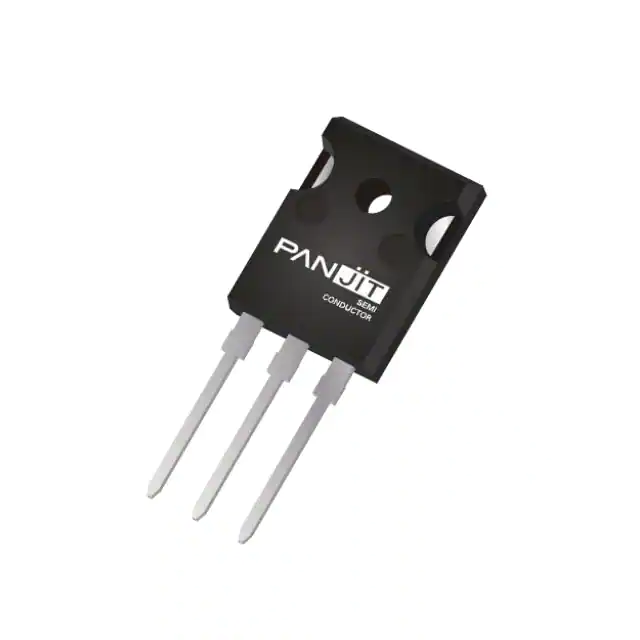

PCDH40120CCG1_T0_00601 1200V SIC SCHOTTKY BARRIER DIODE Panjit International Inc.	3,104	23.13	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Silicon Carbide Schottky	1200 V	20A (DC)	1.7 V @ 20 A	No Recovery Time > 500mA (Io)	0 ns	180 µA @ 1200 V	-55°C ~ 175°C	Through Hole
BAV170W_R1_00001 SURFACE MOUNT, LOW LEAKAGE SWITC Panjit International Inc.	2,591	0.17	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Standard	75 V	200mA (DC)	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	3 µs	5 nA @ 75 V	-55°C ~ 150°C	Surface Mount
MMBD6100W_R1_00001 SURFACE MOUNT SWITCHING DIODE Panjit International Inc.	2,753	0.17	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Standard	80 V	200mA (DC)	1.1 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	100 nA @ 50 V	-55°C ~ 150°C	Surface Mount
BAV70W-AU_R1_000A1 SOT-323, SWITCHING Panjit International Inc.	2,595	0.19	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Standard	75 V	150mA	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	2.5 µA @ 75 V	-55°C ~ 150°C	Surface Mount
MMBD7000W_R1_00001 SURFACE MOUNT SWITCHING DIODE Panjit International Inc.	3,116	0.19	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Standard	100 V	200mA (DC)	1.1 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	3 µA @ 100 V	-55°C ~ 150°C	Surface Mount
BAW56-AU_R1_000A1 SOT-23, SWITCHING Panjit International Inc.	3,796	0.19	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Common Anode	Standard	75 V	150mA	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	2.5 µA @ 75 V	-55°C ~ 150°C	Surface Mount
BAS40CW_R1_00001 SURFACE MOUNT SCHOTTKY DIODE Panjit International Inc.	3,782	0.22	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	40 V	200mA	1 V @ 40 mA	Small Signal =< 200mA (Io), Any Speed	-	1 µA @ 25 V	-55°C ~ 150°C	Surface Mount
BAS70AW_R1_00001 SOT-323, SKY Panjit International Inc.	3,146	0.22	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	BAS70W	Active	1 Pair Common Anode	Schottky	70 V	200mA	1 V @ 15 mA	Small Signal =< 200mA (Io), Any Speed	-	10 µA @ 70 V	150°C	Surface Mount
BAS21C-AU_R1_000A1 SOT-23, SWITCHING Panjit International Inc.	2,384	0.22	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Standard	250 V	200mA	1 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	50 ns	100 nA @ 200 V	150°C	Surface Mount
BAS40A-AU_R1_000A1 SOT-23, SKY Panjit International Inc.	2,482	0.22	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Common Anode	Schottky	40 V	200mA	1 V @ 40 mA	Small Signal =< 200mA (Io), Any Speed	-	1 µA @ 40 V	-55°C ~ 150°C	Surface Mount
BAV99S_R1_00001 SOT-363, SWITCHING Panjit International Inc.	3,258	0.22	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2 Pair Series Connection	Standard	75 V	150mA	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	2.5 µA @ 75 V	-55°C ~ 150°C	Surface Mount
BAV70TB_R1_00001 SURFACE MOUNT SWITCHING DIODE Panjit International Inc.	2,844	0.23	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Standard	75 V	150mA	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	2.5 µA @ 75 V	-55°C ~ 150°C	Surface Mount
BAS70A_R1_00001 SURFACE MOUNT SCHOTTKY DIODE Panjit International Inc.	2,446	0.23	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	BAS70	Active	1 Pair Common Anode	Schottky	70 V	200mA	1 V @ 15 mA	Small Signal =< 200mA (Io), Any Speed	-	1 µA @ 70 V	-55°C ~ 150°C	Surface Mount
RB551V-30TC_R1_00001 SURFACE MOUNT SCHOTTKY DIODE Panjit International Inc.	3,700	0.23	RFQ		Tape & Reel (TR),Cut Tape (CT)	RB551V-30TA	Active	1 Pair Common Cathode	Schottky	30 V	200mA	310 mV @ 100 mA	Small Signal =< 200mA (Io), Any Speed	-	100 µA @ 20 V	-55°C ~ 125°C	Surface Mount
BAT54AW-AU_R1_000A1 SURFACE MOUNT SCHOTTKY DIODE Panjit International Inc.	3,160	0.25	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	BAT54W-AU	Active	1 Pair Common Anode	Schottky	30 V	200mA	600 mV @ 100 mA	Small Signal =< 200mA (Io), Any Speed	-	2 µA @ 30 V	-55°C ~ 125°C	Surface Mount
BAS70SW_R1_00001 SURFACE MOUNT SCHOTTKY DIODE Panjit International Inc.	2,699	0.25	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	BAS70W	Active	1 Pair Series Connection	Schottky	70 V	200mA	1 V @ 15 mA	Small Signal =< 200mA (Io), Any Speed	-	10 µA @ 70 V	150°C	Surface Mount
BAS70CW-AU_R1_000A1 SOT-323, SKY Panjit International Inc.	2,017	0.25	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101, BAS70W-AU	Active	1 Pair Common Cathode	Schottky	70 V	200mA	900 mV @ 15 mA	Small Signal =< 200mA (Io), Any Speed	-	1 µA @ 70 V	-55°C ~ 150°C	Surface Mount
BAS40CW-AU_R1_000A1 SOT-323, SKY Panjit International Inc.	3,988	0.25	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Schottky	40 V	200mA	1 V @ 40 mA	Small Signal =< 200mA (Io), Any Speed	-	1 µA @ 40 V	-55°C ~ 150°C	Surface Mount
BAT54CW-AU_R1_000A1 SOT-323, SKY Panjit International Inc.	3,890	0.25	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Schottky	30 V	200mA	600 mV @ 100 mA	Small Signal =< 200mA (Io), Any Speed	-	2 µA @ 30 V	-55°C ~ 125°C	Surface Mount
BAT54SW-AU_R1_000A1 SOT-323, SKY Panjit International Inc.	3,484	0.25	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Series Connection	Schottky	30 V	200mA	600 mV @ 100 mA	Small Signal =< 200mA (Io), Any Speed	-	2 µA @ 30 V	-55°C ~ 125°C	Surface Mount
