| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSD2004S-HE3-08DIODE ARRAY GP 240V 225MA SOT23 |
2,738 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Standard | 240 V | 225mA | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 240 V | 150°C (Max) | Surface Mount |
|
|
BAT54C-E3-08DIODE ARRAY SCHOTTKY 30V SOT23 |
2,619 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
BAT54S-E3-08DIODE ARRAY SCHOTTKY 30V SOT23 |
3,654 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
BAT54A-HE3-08DIODE ARRAY SCHOTTKY 30V SOT23 |
2,014 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
BAT54C-HE3-08DIODE ARRAY SCHOTTKY 30V SOT23 |
3,519 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
BAT54S-HE3-08DIODE SCHOTTKY 30V 200MA SOT23 |
3,550 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Schottky | 30 V | - | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
BAT54S-G3-08DIODE SCHOTTKY 30V 200MA SOT23 |
3,504 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Schottky | 30 V | - | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
BAS40-05-E3-08DIODE ARRAY SCHOTTKY 40V SOT23 |
2,354 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 200mA (DC) | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 30 V | 125°C (Max) | Surface Mount |
|
|
BAS40-04-E3-08DIODE ARRAY SCHOTTKY 40V SOT23 |
3,717 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Schottky | 40 V | 200mA (DC) | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 30 V | 125°C (Max) | Surface Mount |
|
|
BAS40-04-G3-08DIODE ARRAY SCHOTTKY 40V SOT23 |
3,407 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Series Connection | Schottky | 40 V | 200mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 30 V | 125°C (Max) | Surface Mount |
|
|
BAS40-04-HE3-08DIODE ARRAY SCHOTTKY 40V SOT23 |
2,067 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Schottky | 40 V | 200mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 30 V | 125°C (Max) | Surface Mount |
|
|
BAS40-05-HE3-08DIODE ARRAY SCHOTTKY 40V SOT23 |
3,197 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 40 V | 200mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 30 V | 125°C (Max) | Surface Mount |
|
|
BAS70-06-E3-08DIODE ARRAY SCHOTTKY 70V SOT23 |
2,748 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Anode | Schottky | 70 V | 200mA (DC) | 410 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 50 V | 125°C (Max) | Surface Mount |
|

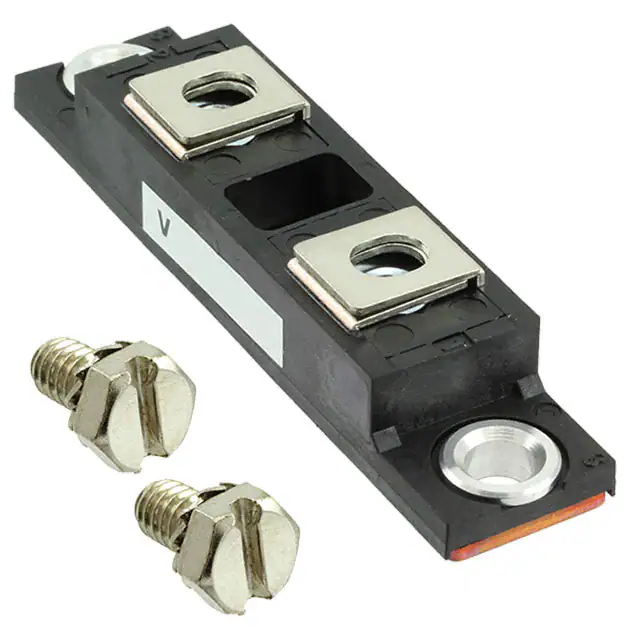

VS-VSUD360CW40DIODE GEN PURP 400V 510A TO244 |
223 | 49.72 |
RFQ |
Datasheet |
Bulk | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 400 V | 510A | 1.5 V @ 360 A | - | 74 ns | 1.28 mA @ 400 V | -40°C ~ 150°C | Chassis Mount |
|
|
BAW56-E3-18DIODE ARRAY GP 70V 250MA SOT23 |
3,644 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Anode | Standard | 70 V | 250mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 2.5 mA @ 70 V | 150°C (Max) | Surface Mount |
|
|
BAT54C-G3-08DIODE ARRAY SCHOTTKY 30V SOT23 |
3,774 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
BAS70-05-G3-08DIODE ARRAY SCHOTTKY 70V SOT23 |
3,039 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 70 V | 200mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 50 V | 125°C (Max) | Surface Mount |
|
|
BAS70-06-HE3-08DIODE ARRAY SCHOTTKY 70V SOT23 |
3,728 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Schottky | 70 V | 200mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 50 V | 125°C (Max) | Surface Mount |
|
V8KM60DUHM3/HDIODE SCHOTTKY 60V 8A FLATPAK |
2,953 | 0.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 2 Independent | Schottky | 60 V | 8A | 640 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 60 V | -40°C ~ 175°C | Surface Mount |
|
SS8P4C-M3/86ADIODE ARRAY SCHOTTKY 40V TO277A |
3,067 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | Active | 1 Pair Common Cathode | Schottky | 40 V | 4A | 580 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 40 V | -55°C ~ 150°C | Surface Mount |
