| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VI30200C-E3/4WDIODE ARRAY SCHOTTKY 200V TO262 |
3,188 | 2.75 |
RFQ |
Datasheet |
Tube | TMBS® | Active | 1 Pair Common Cathode | Schottky | 200 V | 15A | 1.1 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 160 µA @ 200 V | -40°C ~ 150°C | Through Hole |
|
VS-48CTQ060-M3DIODE ARRAY SCHOTTKY 60V TO220AB |
3,631 | 2.00 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 20A | 830 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 60 V | -55°C ~ 150°C | Through Hole |
;;3.jpg)
|
FEP30HP-E3/45DIODE ARRAY GP 500V 15A TO3P |
2,943 | 2.84 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 500 V | 15A | 1.5 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 10 µA @ 500 V | -55°C ~ 150°C | Through Hole |
|
|
VS-63CTQ100-M3DIODE ARRAY SCHOTTKY 100V TO220 |
2,615 | 2.95 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 30A | 1 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 300 µA @ 100 V | -65°C ~ 175°C | Through Hole |
|
VS-60CPQ150-N3DIODE ARRAY SCHOTTKY 150V TO247 |
3,621 | 6.69 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | 30A | 830 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -55°C ~ 175°C | Through Hole |
|
|
VS-STPS40L45CW-N3DIODE ARRAY SCHOTTKY 45V TO247AC |
3,574 | 3.52 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 45 V | -55°C ~ 150°C | Through Hole |
|
|
VS-40CPQ045-N3DIODE ARRAY SCHOTTKY 45V TO247AC |
3,472 | 4.47 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 40A | 590 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 45 V | -55°C ~ 150°C | Through Hole |
|
|
VS-40CPQ100-N3DIODE ARRAY SCHOTTKY 100V TO247 |
2,243 | 4.47 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 100 V | 40A | 910 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.25 mA @ 100 V | 175°C (Max) | Through Hole |
|
|
VS-60CPH03-N3DIODE ARRAY GP 300V 30A TO247AC |
3,234 | 8.08 |
RFQ |
Datasheet |
Tube | FRED Pt® | Active | 1 Pair Common Cathode | Standard | 300 V | 30A | 1.25 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | 60 µA @ 300 V | 175°C (Max) | Through Hole |
|

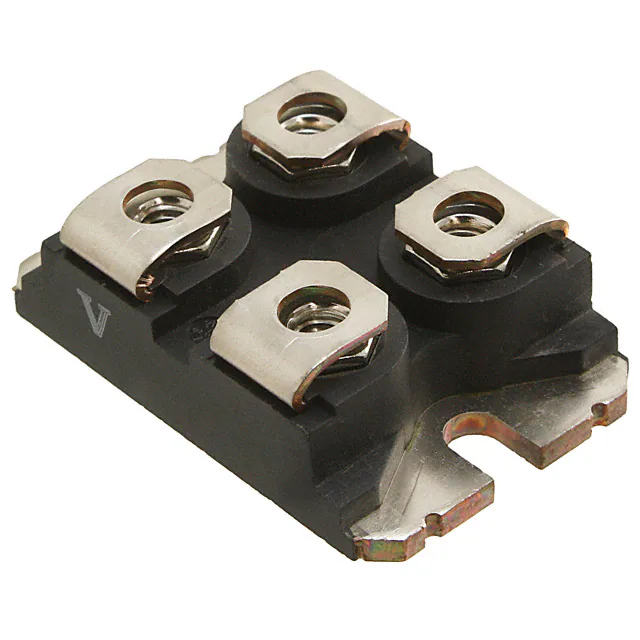

VS-UFB80FA20DIODE MODULE 200V 40A SOT227 |
130 | 20.73 |
RFQ |
Datasheet |
Bulk | - | Active | 2 Independent | Standard | 200 V | 40A (DC) | 1.08 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 34 ns | 50 µA @ 200 V | - | Chassis Mount |
|
VS-VSKC91/12DIODE GEN PURP 1.2KV 50A ADDAPAK |
3,028 | 42.16 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|

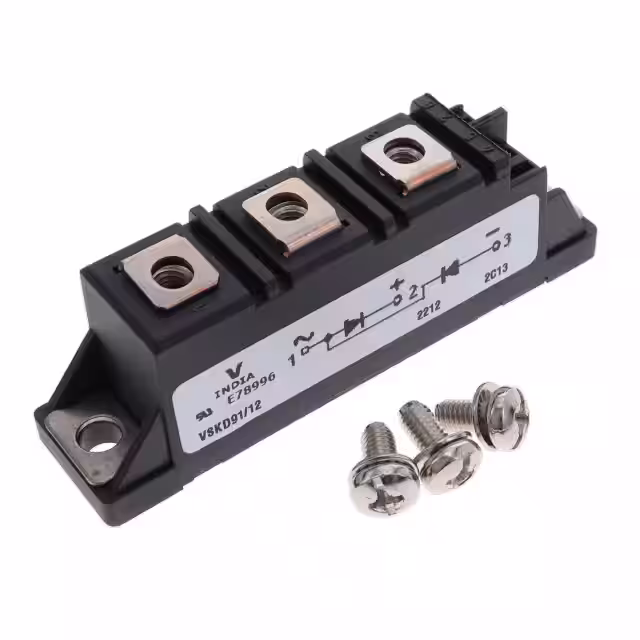

VS-VSKD91/12DIODE GEN PURP 1.2KV 50A ADDAPAK |
2,996 | 42.44 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1200 V | 50A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|
VS-HFA320NJ40CPBFDIODE MODULE 400V 320A TO244 |
3,474 | 56.83 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 400 V | 420A | 1.54 V @ 320 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 3 mA @ 400 V | - | Chassis Mount |
|
|
VS-VSKD166/16PBFDIODE GEN 1.6KV 82.5A INTAPAK |
2,285 | 67.33 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Standard | 1600 V | 82.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1400 V | -40°C ~ 150°C | Chassis Mount |
|
BAV70-E3-18DIODE ARRAY GP 70V 125MA SOT23 |
3,658 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | BAV70 | Active | 1 Pair Common Cathode | Standard | 70 V | 125mA (DC) | 1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 2.5 µA @ 70 V | 150°C (Max) | Surface Mount |
|
|
GSD2004A-HE3-08DIODE ARRAY GP 240V 225MA SOT23 |
2,226 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Anode | Standard | 240 V | 225mA | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 240 V | 150°C (Max) | Surface Mount |
|
|
BAS40-05-E3-18DIODE ARRAY SCHOTTKY 40V SOT23 |
2,156 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 200mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 30 V | 125°C (Max) | Surface Mount |
|
|
BAS70-04-HE3-18DIODE ARRAY SCHOTTKY 70V SOT23 |
2,100 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Series Connection | Schottky | 70 V | 200mA (DC) | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 50 V | 125°C (Max) | Surface Mount |
|
|
BAS70-05-HE3-18DIODE ARRAY SCHOTTKY 70V SOT23 |
2,033 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 Pair Common Cathode | Schottky | 70 V | 200mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 50 V | 125°C (Max) | Surface Mount |
|
|
BAV23C-HE3-08DIODE ARRAY GP 200V 200MA SOT23 |
3,391 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, BAV23C | Active | 1 Pair Common Cathode | Standard | 200 V | 200mA (DC) | 1.25 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 200 V | 150°C (Max) | Surface Mount |
