| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDD200-14N1DIODE MODULE 1.4KV 224A Y4-M6 |
2,963 | 76.80 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1400 V | 224A | 1.3 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1400 V | - | Chassis Mount |
|
MEK600-04DADIODE MODULE 400V 880A Y4-M6 |
3,288 | 88.93 |
RFQ |
Datasheet |
Bulk | HiPerFRED™ | Active | 1 Pair Common Cathode | Standard | 400 V | 880A | 1.4 V @ 400 A | Fast Recovery =< 500ns, > 200mA (Io) | 220 ns | 6 mA @ 400 V | - | Chassis Mount |
|
|
MDD200-18N1DIODE MODULE 1.8KV 224A Y4-M6 |
3,357 | 83.79 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 224A | 1.3 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1800 V | - | Chassis Mount |
|
|
MDD310-18N1DIODE MODULE 1.8KV 305A Y2-DCB |
2,208 | 123.85 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 305A | 1.2 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1800 V | - | Chassis Mount |
|
|
MDMA425P1600PT-PCMDMA425P1600PTSF-PC |
3,392 | 138.29 |
RFQ |
Box | - | Active | - | - | - | - | - | - | - | - | - | - | |
|
|
MDD310-12N1DIODE MODULE 1.2KV 305A Y2-DCB |
3,263 | 113.49 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 305A | 1.2 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1200 V | - | Chassis Mount |
|
|
MDD310-14N1DIODE MODULE 1.4KV 305A Y2-DCB |
2,431 | 118.91 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1400 V | 305A | 1.2 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1400 V | - | Chassis Mount |
|
DCG160X650NAPWR DIODE DISC-SCHOTTKY SOT-227B |
3,530 | 119.84 |
RFQ |
Tube | DCG 160X650NA | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 650 V | 80A | 1.35 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | - | - | Chassis Mount | |
|

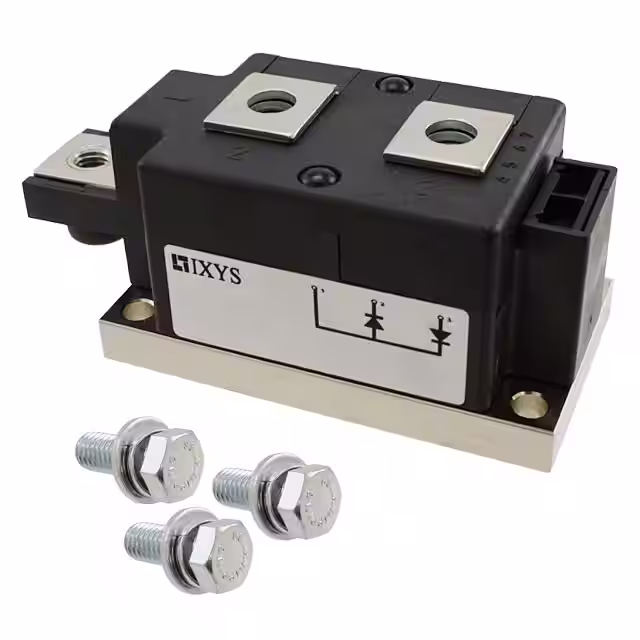

MDD255-12N1DIODE MODULE 1.2KV 270A Y1-CU |
2,459 | 132.50 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 270A | 1.4 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1200 V | - | Chassis Mount |
|
|
MDMA425P1600PTSFBIPOLAR MODULE - DIODE SIMBUS F- |
3,773 | 133.17 |
RFQ |
Box | MDMA425P1600PTSF | Active | - | Standard | 1600 V | 425A | - | - | - | - | - | Chassis Mount | |
|
|
MDD310-20N1DIODE MODULE 2KV 305A Y2-DCB |
3,491 | 134.16 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2000 V | 305A | 1.2 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2000 V | - | Chassis Mount |
|
|
MDD255-14N1DIODE MODULE 1.4KV 270A Y1-CU |
3,031 | 138.82 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1400 V | 270A | 1.4 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1400 V | - | Chassis Mount |
|
|
MDD310-22N1DIODE MODULE 2.2KV 305A Y2-DCB |
3,607 | 144.49 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2200 V | 305A | 1.2 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2200 V | - | Chassis Mount |
|
|
MDD312-14N1DIODE MODULE 1.4KV 310A Y1-CU |
3,465 | 145.76 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1400 V | 310A | 1.32 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1400 V | - | Chassis Mount |
|
|
MDNA300P2200PTSFBIPOLAR MODULE - DIODE SIMBUS F- |
3,861 | 150.87 |
RFQ |
Box | - | Active | - | Standard | 2200 V | 300A | - | - | - | - | - | Chassis Mount | |
|
|
MDD255-18N1DIODE MODULE 1.8KV 270A Y1-CU |
2,868 | 151.43 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 270A | 1.4 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1800 V | - | Chassis Mount |
|
|
MDMA600P1600PTSFBIPOLAR MODULE - DIODE SIMBUS F- |
3,981 | 160.94 |
RFQ |
Box | MDMA600P1600PTSF | Active | - | Standard | 1600 V | 600A | - | - | - | - | - | Chassis Mount | |
|
|
MDNA425P2200PTSFBIPOLAR MODULE - DIODE SIMBUS F- |
2,422 | 162.13 |
RFQ |
Box | - | Active | - | Standard | 2200 V | 425A | - | - | - | - | - | Chassis Mount | |
|
|
MDD312-20N1DIODE MODULE 2KV 310A Y1-CU |
3,154 | 165.27 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2000 V | 310A | 1.32 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 2000 V | - | Chassis Mount |
|
|
MDMA600P1600PT-PCMDMA600P1600PTSF-PC |
2,316 | 166.04 |
RFQ |
Box | - | Active | - | - | - | - | - | - | - | - | - | - |
