Diodes - Rectifiers - Arrays(14902)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeConfiguration	DiodeType	Voltage-DCReverse(Vr)(Max)	Current-AverageRectified(Io)(perDiode)	Voltage-Forward(Vf)(Max)@If	Speed	ReverseRecoveryTime(trr)	Current-ReverseLeakage@Vr	OperatingTemperature-Junction	MountingType
BAT54DW-7-F DIODE ARRAY SCHOTTKY 30V SOT363 Diodes Incorporated	2,087	0.40	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	2 Independent	Schottky	30 V	100mA	1 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	5 ns	2 µA @ 25 V	-65°C ~ 125°C	Surface Mount
BAS4005WH6327XTSA1 DIODE ARRAY SCHOTTKY 40V SOT323 Infineon Technologies	3,964	0.42	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	40 V	120mA (DC)	1 V @ 40 mA	Small Signal =< 200mA (Io), Any Speed	100 ps	1 µA @ 30 V	150°C (Max)	Surface Mount
BAS7004E6327HTSA1 DIODE ARRAY SCHOTTKY 70V SOT23 Infineon Technologies	3,557	0.42	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Schottky	70 V	70mA (DC)	1 V @ 15 mA	Small Signal =< 200mA (Io), Any Speed	100 ps	100 nA @ 50 V	150°C (Max)	Surface Mount
1PS70SB84,115 DIODE ARRAY SCHOTTKY 15V SOT323 Nexperia USA Inc.	3,893	0.46	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Schottky	15 V	30mA (DC)	700 mV @ 30 mA	Small Signal =< 200mA (Io), Any Speed	-	200 nA @ 1 V	125°C (Max)	Surface Mount
RB548WTL DIODE ARRAY SCHOTTKY 30V EMD3 Rohm Semiconductor	2,793	0.46	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Schottky	30 V	100mA	450 mV @ 10 mA	Small Signal =< 200mA (Io), Any Speed	-	500 nA @ 10 V	125°C (Max)	Surface Mount
CMSD2004S TR PBFREE DIODE ARRAY GP 300V 225MA SOT323 Central Semiconductor Corp	2,288	0.70	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Standard	300 V	225mA	1 V @ 100 mA	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	100 nA @ 240 V	-65°C ~ 150°C	Surface Mount

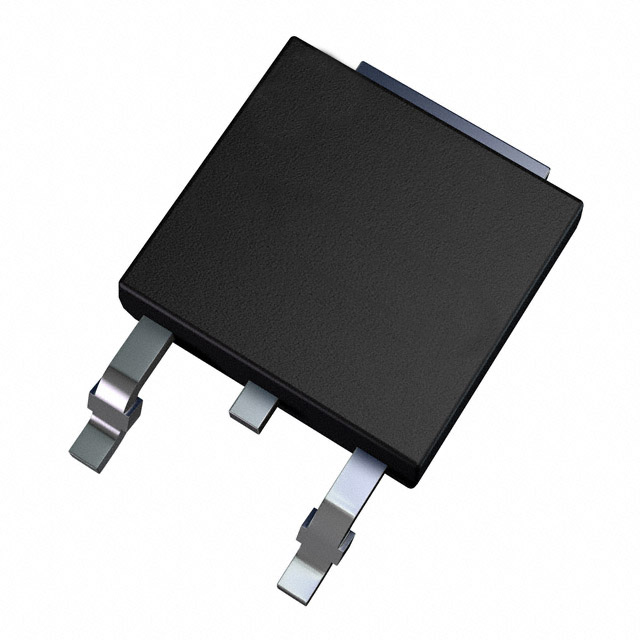

12CWQ06FN DIODE ARRAY SCHOTTKY 60V DPAK SMC Diode Solutions	3,061	0.70	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	60 V	-	610 mV @ 6 A	Fast Recovery =< 500ns, > 200mA (Io)	-	3 mA @ 60 V	-55°C ~ 150°C	Surface Mount
CMPD3003S TR PBFREE DIODE ARRAY GP 180V 200MA SOT23 Central Semiconductor Corp	2,442	0.72	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Standard	180 V	200mA	1.15 V @ 300 mA	Small Signal =< 200mA (Io), Any Speed	-	1 nA @ 125 V	-65°C ~ 150°C	Surface Mount
SS8P6C-M3/86A DIODE ARRAY SCHOTTKY 60V TO277A Vishay General Semiconductor - Diodes Division	3,028	0.66	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	eSMP®	Active	1 Pair Common Cathode	Schottky	60 V	4A	700 mV @ 4 A	Fast Recovery =< 500ns, > 200mA (Io)	-	50 µA @ 60 V	-55°C ~ 150°C	Surface Mount

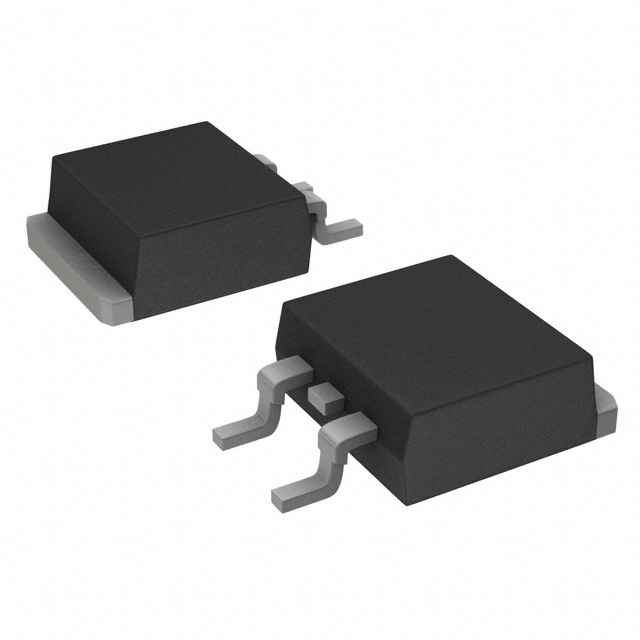

VS-6CWQ06FNTR-M3 DIODE ARRAY SCHOTTKY 60V DPAK Vishay General Semiconductor - Diodes Division	3,811	0.81	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	60 V	3.5A	760 mV @ 6 A	Fast Recovery =< 500ns, > 200mA (Io)	-	2 mA @ 60 V	150°C (Max)	Surface Mount
SBR15U100CTL-13 DIODE ARRAY SBR 100V 7.5A TO252 Diodes Incorporated	3,970	0.91	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SBR®	Active	1 Pair Common Cathode	Super Barrier	100 V	7.5A	800 mV @ 7.5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	80 µA @ 100 V	-65°C ~ 175°C	Surface Mount
MBRD20200CT-13 DIODE SCHOTTKY 200V 10A DPAK Diodes Incorporated	2,420	0.88	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Schottky	200 V	10A	900 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	50 µA @ 200 V	-55°C ~ 150°C	Surface Mount
CMPD6001S TR PBFREE DIODE ARRAY GP 75V 250MA SOT23 Central Semiconductor Corp	2,190	0.99	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Standard	75 V	250mA	1.1 V @ 100 mA	Fast Recovery =< 500ns, > 200mA (Io)	3 µs	500 pA @ 75 V	-65°C ~ 150°C	Surface Mount
SBR15U100CTLQ-13 DIODE ARRAY SBR 100V 15A TO252 Diodes Incorporated	3,691	1.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SBR®	Active	1 Pair Common Cathode	Super Barrier	100 V	15A	800 mV @ 7.5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	100 µA @ 100 V	-55°C ~ 150°C	Surface Mount
VS-12CWQ10FNTR-M3 DIODE ARRAY SCHOTTKY 100V DPAK Vishay General Semiconductor - Diodes Division	3,882	0.97	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	100 V	6A	950 mV @ 12 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 100 V	150°C (Max)	Surface Mount
MBRB20200CT-13 DIODE SCHOTTKY 200V 20A D2PAK Diodes Incorporated	2,340	0.93	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Schottky	200 V	10A	890 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	100 µA @ 200 V	-55°C ~ 175°C	Surface Mount
CSHD6-100C TR13 PBFREE DIODE ARRAY SCHOTTKY 100V DPAK Central Semiconductor Corp	2,053	1.44	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	100 V	6A	1.1 V @ 6 A	Fast Recovery =< 500ns, > 200mA (Io)	-	30 µA @ 100 V	-65°C ~ 150°C	Surface Mount
MBR20100CT-G1 DIODE SCHOTTKY 100V 10A TO220AB Diodes Incorporated	3,247	0.69	RFQ	Datasheet	Tube	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Schottky	100 V	10A	840 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	50 µA @ 100 V	-55°C ~ 175°C	Through Hole
NTSB30100CTT4G DIODE ARRAY SCHOTTKY 100V D2PAK onsemi	2,073	1.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	100 V	15A	850 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	500 µA @ 100 V	-40°C ~ 150°C	Surface Mount

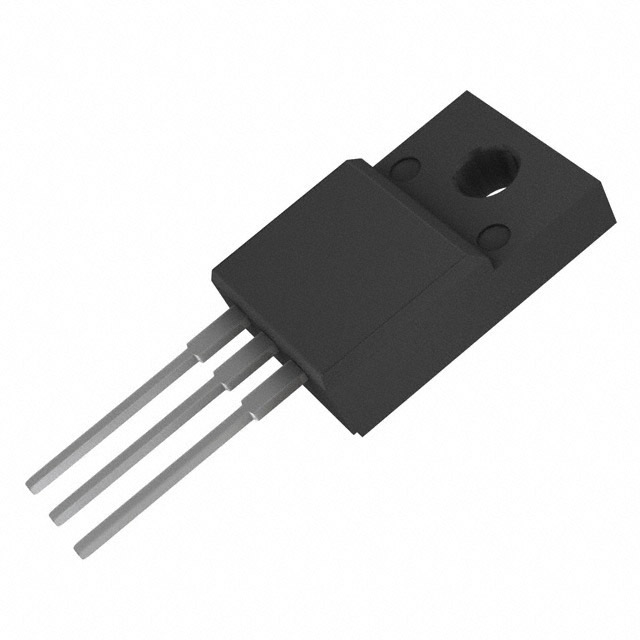

SDURF3030CT DIODE GEN PURP 300V 15A ITO220AB SMC Diode Solutions	2,625	1.15	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Standard	300 V	15A	1.25 V @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	45 ns	10 µA @ 300 V	-55°C ~ 150°C	Through Hole
