| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAS21UE6433HTMA1DIODE ARRAY GP 200V 250MA SC74-6 |
3,981 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Not For New Designs | 3 Independent | Standard | 200 V | 250mA (DC) | 1.25 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 200 V | 150°C (Max) | Surface Mount |
|
|
BAV99UE6327HTSA1DIODE ARRAY GP 80V 200MA SC74-6 |
2,505 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Not For New Designs | 2 Pair Series Connection | Standard | 80 V | 200mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 150 nA @ 70 V | 150°C (Max) | Surface Mount |
|
BAW101E6433HTMA1DIODE ARRAY GP 300V 250MA SOT143 |
2,735 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Not For New Designs | 2 Independent | Standard | 300 V | 250mA (DC) | 1.3 V @ 100 mA | Standard Recovery >500ns, > 200mA (Io) | 1 µs | 150 nA @ 250 V | 150°C (Max) | Surface Mount |
|
|
BAW101E6327HTSA1DIODE ARRAY GP 300V 250MA SOT143 |
2,255 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Not For New Designs | 2 Independent | Standard | 300 V | 250mA (DC) | 1.3 V @ 100 mA | Standard Recovery >500ns, > 200mA (Io) | 1 µs | 150 nA @ 250 V | 150°C (Max) | Surface Mount |
|
|
BAS7007E6433HTMA1DIODE ARRAY SCHOTTKY 70V SOT143 |
2,583 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 2 Independent | Schottky | 70 V | 70mA (DC) | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 100 ps | 100 nA @ 50 V | 150°C (Max) | Surface Mount |
|
BAS7004SH6827XTSA1DIODE ARRAY SCHOTTKY 70V SOT363 |
2,856 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 2 Pair Series Connection | Schottky | 70 V | 70mA (DC) | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 100 ps | 100 nA @ 50 V | 150°C (Max) | Surface Mount |
|
BAW79DH6327XTSA1DIODE GP 400V 500MA SOT89 |
3,523 | 0.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | Automotive, AEC-Q101 | Not For New Designs | 1 Pair Common Cathode | Standard | 400 V | 500mA | 1.6 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | 1 µs | 1 µA @ 400 V | 150°C (Max) | Surface Mount |
|
BAS12505WH6327XTSA1DIODE ARRAY SCHOTTKY 25V SOT323 |
3,937 | 0.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Active | 1 Pair Common Cathode | Schottky | 25 V | 100mA (DC) | 950 mV @ 35 mA | Small Signal =< 200mA (Io), Any Speed | - | 150 nA @ 25 V | 150°C (Max) | Surface Mount |
|
IDP30C65D2XKSA1DIODE 650V 30A RAPID2 TO220-3 |
2,863 | 1.83 |
RFQ |
Datasheet |
Bulk,Tube | Rapid 2 | Active | 1 Pair Common Cathode | Standard | 650 V | 15A | 2.2 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 31 ns | 40 µA @ 650 V | -40°C ~ 175°C | Through Hole |
|
IDW30C65D2XKSA1DIODE 650V 30A RAPID2 TO247-3 |
3,524 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | Rapid 2 | Active | 1 Pair Common Cathode | Standard | 650 V | 15A | 2.2 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 32 ns | 40 µA @ 650 V | -40°C ~ 175°C | Through Hole |
|
IDW20C65D2XKSA1DIODE 650V 20A RAPID2 TO247-3 |
2,814 | 2.85 |
RFQ |
Datasheet |
Tube | Rapid 2 | Active | 1 Pair Common Cathode | Standard | 650 V | 10A | 2.2 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 40 µA @ 650 V | -40°C ~ 175°C | Through Hole |
|
IDFW60C65D1XKSA1DIODE ARRAY GP 650V 56A TO247-3 |
2,749 | 4.70 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 650 V | 56A (DC) | 1.75 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 112 ns | 40 µA @ 650 V | -40°C ~ 175°C | Through Hole |
|
DD220N16SHPSA1DIODE MOD GP 1600V 273A BGPB34SB |
2,058 | 53.01 |
RFQ |
Datasheet |
Tray | - | Active | 1 Pair Series Connection | Standard | 1600 V | 273A | 1.39 V @ 500 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 mA @ 1600 V | 150°C (Max) | Chassis Mount |
|
DDB6U104N16RRBOSA1DIODE MODULE GP 1600V 25A |
3,345 | 88.27 |
RFQ |
Datasheet |
Bulk | - | Discontinued at Mosen | 3 Independent | Standard | 1600 V | 25A (DC) | 1.3 V @ 1600 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
DD104N12KHPSA1DIODE MODULE GP 1200V 104A |
2,962 | 120.57 |
RFQ |
Datasheet |
Bulk | - | Last Time Buy | 1 Pair Common Cathode | Standard | 1200 V | 104A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 20 mA @ 1200 V | -40°C ~ 150°C | Chassis Mount |
|
DD89N16KAHPSA1DIODE ARRAY MOD 1200V 140A |
2,212 | 101.19 |
RFQ |
Datasheet |
Bulk,Bulk | - | Last Time Buy | - | - | - | - | - | - | - | - | - | - |
|
|
DD89N16KKHPSA1DIODE ARRAY MOD 1200V 140A |
3,486 | 101.19 |
RFQ |
Datasheet |
Bulk,Bulk | - | Last Time Buy | - | - | - | - | - | - | - | - | - | - |
|

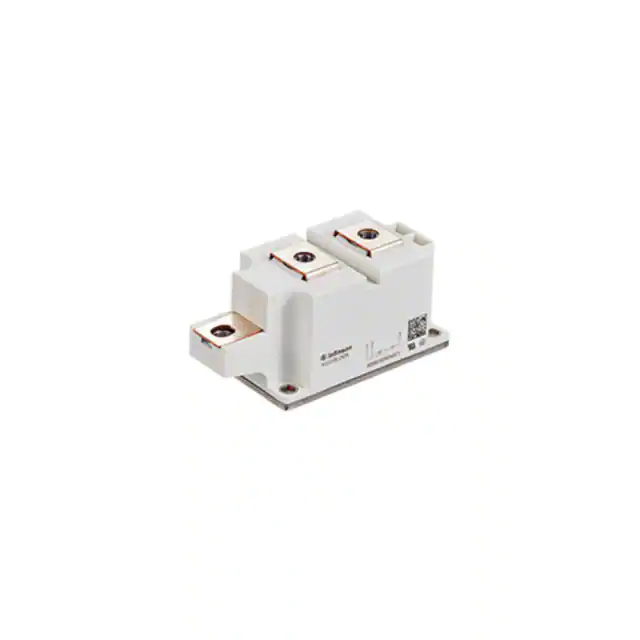

DD390N16SHPSA1DIODE MOD GP 1600V 390A BGPB50SB |
2,667 | 98.39 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | 1 Pair Series Connection | Standard | 1600 V | 390A | 1.34 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 mA @ 1600 V | -40°C ~ 125°C | Chassis Mount |
|
|
ND89N08KHPSA1DIODE MOD POWERBLOCK PB20-1 |
2,736 | 77.40 |
RFQ |
Bulk,Tray | - | Last Time Buy | - | - | - | - | - | - | - | - | - | - | |
|
|
DD390N22SHPSA1DIODE MOD GP 2200V 390A BGPB50SB |
3,571 | 104.58 |
RFQ |
Datasheet |
Bulk,Tray | - | Active | 1 Pair Series Connection | Standard | 2200 V | 390A | 1.34 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 mA @ 2200 V | -40°C ~ 125°C | Chassis Mount |
