| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UFT14020DIODE MODULE 200V 70A |
2,974 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 70A | 975 mV @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 25 µA @ 200 V | - | Chassis Mount |
|
UFT14280DIODE MODULE 800V 70A TO249 |
3,701 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 800 V | 70A | 1.35 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 800 V | - | Screw Mount |
|

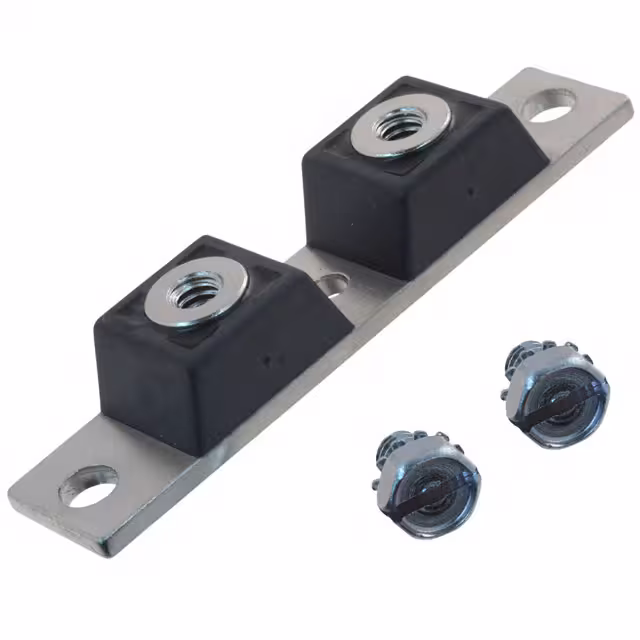

UFT20020DIODE MODULE 200V 100A |
3,583 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 100A | 975 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 50 µA @ 200 V | - | Screw Mount |
|

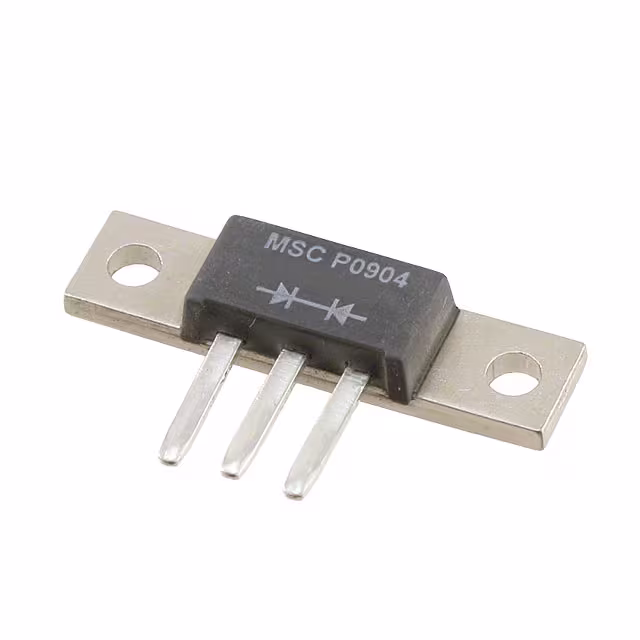

UFT7020DIODE MODULE 200V 35A |
2,810 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 35A | 950 mV @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 25 µA @ 200 V | - | Screw Mount | |
|

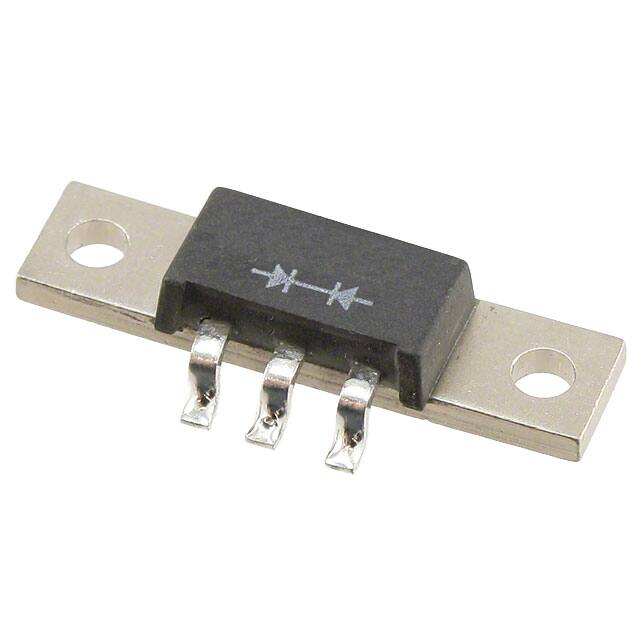

UFT7260SM1CDIODE MODULE 600V 35A |
3,304 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 35A | 1.35 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 600 V | - | Chassis Mount |
|
UFT7260SM5CDIODE MODULE 600V 35A |
2,087 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 35A | 1.35 V @ 35 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 600 V | - | Chassis Mount | |
|

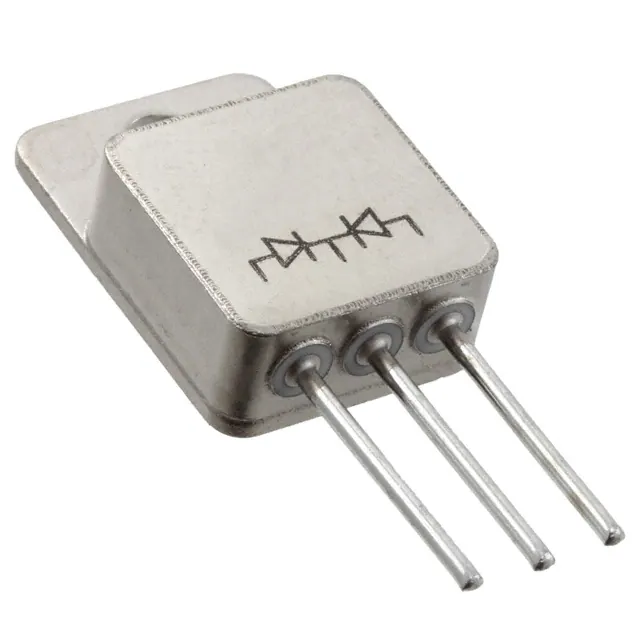

JANTX1N6660DIODE ARRAY SCHOTTKY 45V TO254AA |
2,265 | 0.00 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/608 | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | 150°C (Max) | Through Hole |
|
APT2X101DL40JDIODE MODULE 400V 100A ISOTOP |
2,470 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 Independent | Standard | 400 V | 100A | 1.125 V @ 100 A | Small Signal =< 200mA (Io), Any Speed | 120 ns | 500 µA @ 400 V | -55°C ~ 175°C | Chassis Mount |
|
|
APT2X150DL60JDIODE MODULE 600V 150A ISOTOP |
3,810 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 Independent | Standard | 600 V | 150A | 1.6 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | 408 ns | 25 µA @ 600 V | -55°C ~ 175°C | Chassis Mount |
|
CPT300100DIODE MODULE 100V 150A TO244AB |
2,294 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 150A | 980 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4 mA @ 100 V | - | Chassis Mount | |
|
|
CPT40080DIODE MODULE 80V 200A 2TOWER |
3,339 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 200A | 890 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 80 V | - | Chassis Mount | |
|

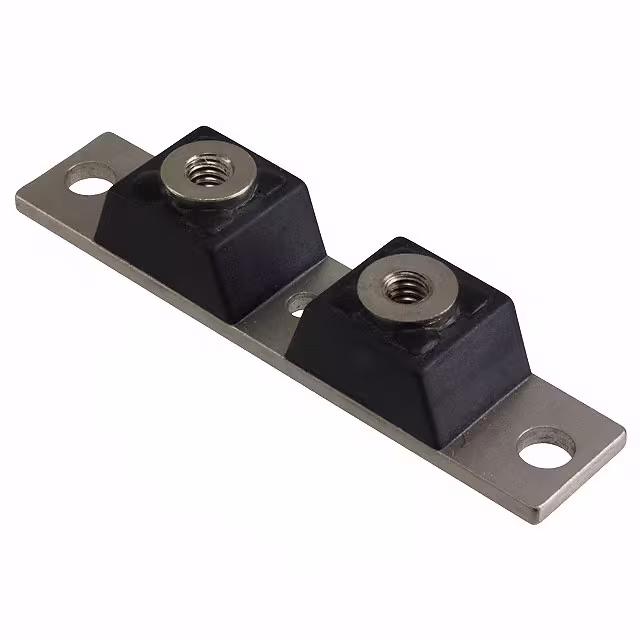

CPT500100DIODE MODULE 100V 250A TO244AB |
3,814 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 250A | 900 mV @ 250 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 100 V | - | Chassis Mount | |
|

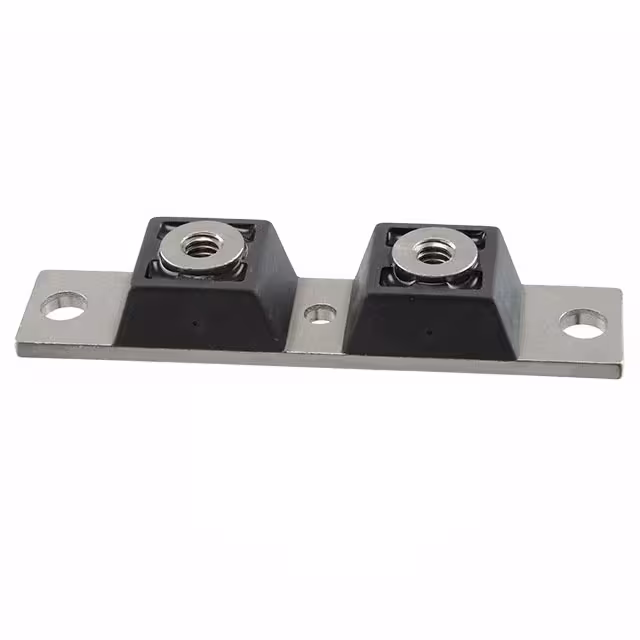

CPT60035DIODE MODULE 35V 300A TO244AB |
3,053 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 35 V | 300A | 650 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 8 mA @ 35 V | - | Chassis Mount | |
|
|
FST160100DIODE MODULE 100V 80A TO249 |
3,823 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 80A | 960 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 100 V | - | Chassis Mount |
|
|
FST16045DIODE MODULE 45V 80A TO249 |
3,954 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 80A | 740 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | - | Chassis Mount |
|
FST16090DIODE MODULE 90V 80A TO249 |
2,303 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 90 V | 80A | 960 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 90 V | - | Screw Mount |
|
|
FST80100DIODE MODULE 100V 40A 3MINIMOD |
3,651 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 40A | 820 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 100 V | - | Screw Mount |
|

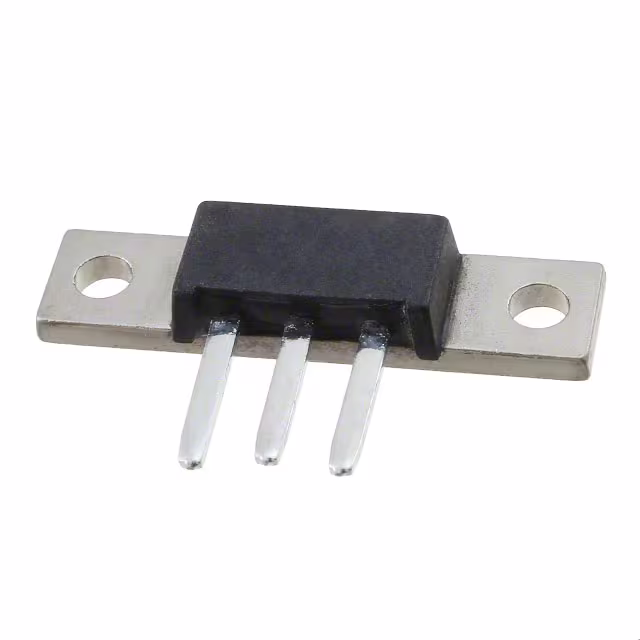

FST8145DIODE MODULE 45V 40A |
3,346 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 40A | 530 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | - | Chassis Mount |
|
|
UFT14140DIODE MODULE 400V 70A TO249 |
3,780 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 70A | 1.25 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 25 µA @ 400 V | - | Screw Mount | |
|
|
UFT14260DIODE MODULE 600V 70A TO249 |
2,860 | 0.00 |
RFQ |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 70A | 1.35 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 600 V | - | Screw Mount |
