Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeConfiguration	DiodeType	Voltage-DCReverse(Vr)(Max)	Current-AverageRectified(Io)(perDiode)	Voltage-Forward(Vf)(Max)@If	Speed	ReverseRecoveryTime(trr)	Current-ReverseLeakage@Vr	OperatingTemperature-Junction	MountingType

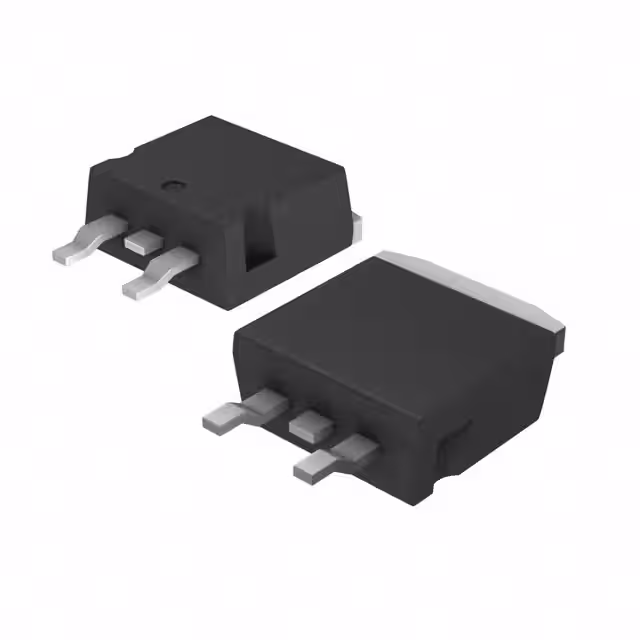

FERD60H100CGY-TR AUTOMOTIVE, 100 V - 2 X 30 A FIE STMicroelectronics	990	3.24	RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	FERD (Field Effect Rectifier Diode)	100 V	30A	850 mV @ 30 A	Standard Recovery >500ns, > 200mA (Io)	-	60 µA @ 100 V	-40°C ~ 175°C	Surface Mount
STPS2030CT DIODE ARRAY SCHOTTKY 30V TO220AB STMicroelectronics	2,943	1.96	RFQ	Datasheet	Tube	-	Not For New Designs	1 Pair Common Cathode	Schottky	30 V	10A	500 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 30 V	150°C (Max)	Through Hole
STPS40M60CT DIODE ARRAY SCHOTTKY 60V TO220AB STMicroelectronics	2,877	2.17	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	60 V	20A	595 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	110 µA @ 60 V	150°C (Max)	Through Hole
STPS4045CWY DIODE ARRAY SCHOTTKY 45V TO247 STMicroelectronics	2,702	2.23	RFQ	Datasheet	Tube	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Schottky	45 V	20A	760 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 45 V	-40°C ~ 175°C	Through Hole
STPS6045CW DIODE ARRAY SCHOTTKY 45V TO247-3 STMicroelectronics	2,070	2.95	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	45 V	30A	630 mV @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	-	500 µA @ 45 V	175°C (Max)	Through Hole
STPS80H100CWLY AUTOMOTIVE 100V, DUAL 40A LOW VO STMicroelectronics	3,642	5.34	RFQ	Datasheet	Tube	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Schottky	100 V	40A	820 mV @ 40 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 µA @ 100 V	-40°C ~ 175°C	Through Hole
STPSC40H12CWY 2X20A 1200V POWER SCHOTTKY SILIC STMicroelectronics	3,293	20.46	RFQ	Datasheet	Tube	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Silicon Carbide Schottky	1200 V	20A	1.5 V @ 20 A	No Recovery Time > 500mA (Io)	0 ns	120 µA @ 1200 V	-40°C ~ 175°C	Through Hole
STTH602CBY-TR DIODE ARRAY GP 200V 3A DPAK STMicroelectronics	3,315	0.53	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Standard	200 V	3A	1.1 V @ 3 A	Fast Recovery =< 500ns, > 200mA (Io)	30 ns	3 µA @ 200 V	-40°C ~ 175°C	Surface Mount
STPS20150CR DIODE ARRAY SCHOTTKY 150V I2PAK STMicroelectronics	2,720	0.73	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	150 V	10A	920 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	5 µA @ 150 V	175°C (Max)	Through Hole
STPS3030CR DIODE ARRAY SCHOTTKY 30V I2PAK STMicroelectronics	2,487	0.87	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	30 V	15A	490 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1 mA @ 30 V	150°C (Max)	Through Hole
STPS30M80CT DIODE ARRAY SCHOTTKY 80V TO220AB STMicroelectronics	3,678	0.90	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	80 V	15A	745 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	40 µA @ 80 V	175°C (Max)	Through Hole
STPS20H100CGY-TR DIODE ARRAY SCHOTTKY 100V D2PAK STMicroelectronics	3,001	0.96	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Schottky	100 V	10A	770 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	4.5 µA @ 100 V	-40°C ~ 175°C	Surface Mount
STPS30170CG-TR DIODE ARRAY SCHOTTKY 170V D2PAK STMicroelectronics	2,229	1.00	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	170 V	15A	920 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 µA @ 170 V	175°C (Max)	Surface Mount
STPS40SM60CT DIODE ARRAY SCHOTTKY 60V TO220AB STMicroelectronics	2,763	1.03	RFQ	Datasheet	Tube	-	Not For New Designs	1 Pair Common Cathode	Schottky	60 V	20A	625 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	90 µA @ 60 V	150°C (Max)	Through Hole
STPS10170CT DIODE ARRAY SCHOTTKY 170V TO220 STMicroelectronics	2,094	1.04	RFQ	Datasheet	Tube	-	Obsolete	1 Pair Common Cathode	Schottky	170 V	5A	920 mV @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	10 µA @ 170 V	175°C (Max)	Through Hole
STPS20L45CG-TR DIODE ARRAY SCHOTTKY 45V D2PAK STMicroelectronics	3,235	1.11	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	45 V	10A	550 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	200 µA @ 45 V	150°C (Max)	Surface Mount
STPS10LCD100CFP DIODE ARRAY SCHOTTKY 100V 5A STMicroelectronics	2,024	1.11	RFQ	Datasheet	Tube	-	Not For New Designs	1 Pair Common Cathode	Schottky	100 V	5A	840 mV @ 5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	1.5 µA @ 100 V	175°C (Max)	Through Hole
STPS41H100CR DIODE ARRAY SCHOTTKY 100V I2PAK STMicroelectronics	2,571	1.15	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Schottky	100 V	20A	800 mV @ 20 A	Fast Recovery =< 500ns, > 200mA (Io)	-	10 µA @ 100 V	175°C (Max)	Through Hole
STPS1545CGY-TR DIODE ARRAY SCHOTTKY 45V D2PAK STMicroelectronics	2,282	1.19	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Schottky	45 V	7.5A	570 mV @ 7.5 A	Fast Recovery =< 500ns, > 200mA (Io)	-	100 µA @ 45 V	-40°C ~ 175°C	Surface Mount
STPS2545CGY-TR DIODE ARRAY SCHOTTKY 45V D2PAK STMicroelectronics	2,871	1.25	RFQ	Datasheet	Tape & Reel (TR)	Automotive, AEC-Q101	Active	1 Pair Common Cathode	Schottky	45 V	12.5A	840 mV @ 25 A	Fast Recovery =< 500ns, > 200mA (Io)	-	125 µA @ 45 V	-40°C ~ 175°C	Surface Mount
