| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STPS20L25CGDIODE ARRAY SCHOTTKY 25V TO263 |
2,831 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 25 V | 10A | 460 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 25 V | 150°C (Max) | Surface Mount |
;;2.jpg)
|
STPS1545CB-TRDIODE ARRAY SCHOTTKY 45V DPAK |
3,437 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 7.5A | 570 mV @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 45 V | 175°C (Max) | Surface Mount |
|
STTH30W03CWDIODE ARRAY GP 300V 15A TO247 |
3,478 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Standard | 300 V | 15A | 1.4 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 10 µA @ 300 V | 175°C (Max) | Through Hole |
|
|
STTH20L03CG-TRDIODE ARRAY GP 300V 10A D2PAK |
3,078 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 Pair Common Cathode | Standard | 300 V | 10A | 1.2 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 26 ns | 10 µA @ 300 V | -40°C ~ 175°C | Surface Mount |
|
STTH200W04TV1DIODE MODULE 400V 100A ISOTOP |
3,842 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 Independent | Standard | 400 V | 100A | 1.55 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 40 µA @ 400 V | 150°C (Max) | Chassis Mount |
|
|
STTH200W03TV1DIODE MODULE 300V 100A ISOTOP |
3,658 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 Independent | Standard | 300 V | 100A | 1.5 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 µA @ 300 V | 150°C (Max) | Chassis Mount |
|
|
STTH200W06TV1DIODE MODULE 600V 100A ISOTOP |
3,022 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 Independent | Standard | 600 V | 100A | 1.5 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 30 µA @ 600 V | 150°C (Max) | Chassis Mount |
|
STTH60W02CWDIODE ARRAY GP 200V 30A TO247 |
2,137 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 30A | 1.15 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 10 µA @ 200 V | 175°C (Max) | Through Hole |
|
STPS20200CTNDIODE ARRAY SCHOTTKY 200V TO220 |
3,480 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 200 V | 10A | 860 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 15 µA @ 200 V | -40°C ~ 175°C | Through Hole |
|
|
STPS30H100CTNDIODE ARRAY SCHOTTKY 100V TO220 |
2,149 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 800 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 100 V | -40°C ~ 175°C | Through Hole |
|
STTH15AC06CTDIODE ARRAY GP 600V 7.5A TO220AB |
2,939 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 600 V | 7.5A | 1.9 V @ 7.5 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 1 µA @ 600 V | -40°C ~ 150°C | Through Hole |
|

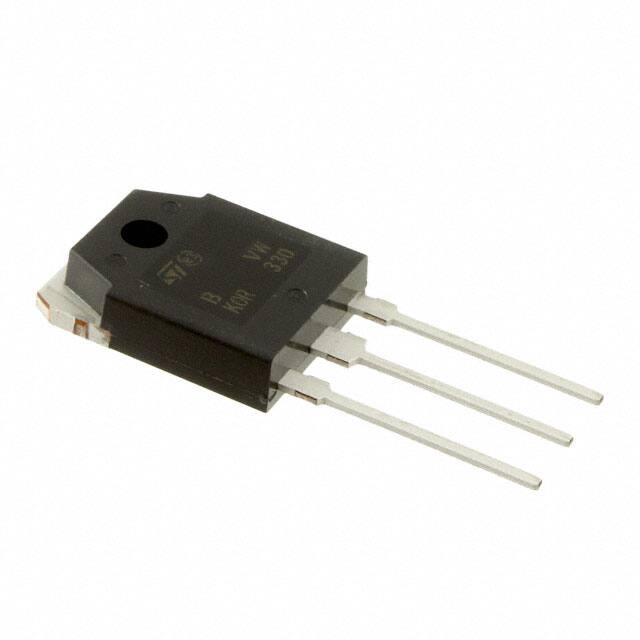

STTH30AC06CPDIODE ARRAY GP 600V 15A TO3PF |
2,246 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 15A | 1.95 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 10 µA @ 600 V | -65°C ~ 175°C | Through Hole |
|
STTH30AC06CPFDIODE ARRAY GP 600V 15A TO3PF |
2,414 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 600 V | 15A | 1.95 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 10 µA @ 600 V | -65°C ~ 175°C | Through Hole |
|
|
STPSC12H065CTDIODE ARRAY SCHOTTKY 650V TO220 |
2,664 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 650 V | 6A | 1.75 V @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 60 µA @ 650 V | -40°C ~ 175°C | Through Hole |
|
STPSC20H065CWYDIODE SCHOTTKY SIC 650V TO247 |
3,347 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, ECOPACK®2 | Active | 1 Pair Common Cathode | Silicon Carbide Schottky | 650 V | 10A | 1.75 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 650 V | -40°C ~ 175°C | Through Hole |
|
STPS40L45CGDIODE ARRAY SCHOTTKY 45V D2PAK |
3,845 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 20A | 530 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 600 µA @ 45 V | 150°C (Max) | Surface Mount |
|
STPS2045CHDIODE ARRAY SCHOTTKY 45V IPAK |
2,836 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 10A | 840 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 45 V | 175°C (Max) | Through Hole |
|
STPS20L60CTNDIODE ARRAY SCHOTTKY 60V TO220AB |
2,643 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 10A | 600 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 350 µA @ 60 V | 150°C (Max) | Through Hole |
|
|
STTH60SW03CWDIODE ARRAY GP 300V 30A TO247 |
2,709 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Standard | 300 V | 30A | 1.25 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | 27 ns | 15 µA @ 300 V | 175°C (Max) | Through Hole |
|
STPS660DDJFY-TRDIODE ARRAY SCHOTTKY 60V PWRFLAT |
3,624 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | 2 Independent | Schottky | 60 V | 3.5A | 800 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 60 V | -40°C ~ 175°C | Surface Mount |
