| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LD412460DIODE MODULE 2.4KV 600A POWRBLOK |
2,550 | 240.35 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2400 V | 600A | 1.19 V @ 1800 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2400 V | - | Chassis Mount |
|
PD410611DIODE MODULE 600V 1100A POWRBLOK |
3,530 | 687.63 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 600 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 600 V | - | Chassis Mount |
|
|
PD410811DIODE MODULE 800V 1100A POWRBLOK |
3,470 | 687.63 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 800 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 800 V | - | Chassis Mount |
|
|
PD411011DIODE MODULE 1KV 1100A POWRBLOK |
2,763 | 693.55 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1000 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1000 V | - | Chassis Mount |
|
|
PD411211DIODE MODULE 1.2KV 1100A POWRBLK |
3,403 | 699.48 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1200 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1200 V | - | Chassis Mount |
|
|
PD411411DIODE MODULE 1.4KV 1100A POWRBLK |
2,727 | 707.40 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1400 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1400 V | - | Chassis Mount |
|

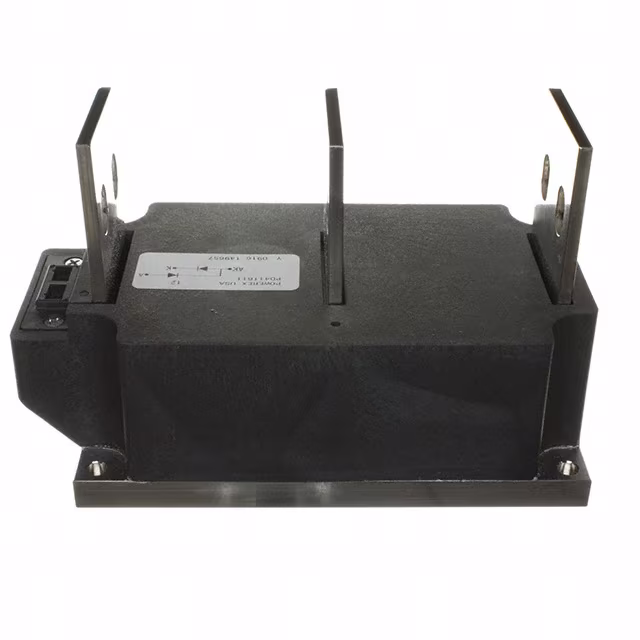

PD411611DIODE MODULE 1.6KV 1100A POWRBLK |
3,424 | 713.31 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1600 V | 1100A | - | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD411811DIODE MODULE 1.8KV 1100A POWRBLK |
2,939 | 723.23 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 1800 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 1800 V | - | Chassis Mount |
|
|
PD412011DIODE MODULE 2KV 1100A POWRBLOK |
3,307 | 733.09 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2000 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2000 V | - | Chassis Mount |
|
|
PD412211DIODE MODULE 2.2KV 1100A POWRBLK |
3,260 | 744.96 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2200 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2200 V | - | Chassis Mount |
|
|
PD412411DIODE MODULE 2.4KV 1100A POWRBLK |
2,379 | 764.73 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2400 V | 1100A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2400 V | - | Chassis Mount |
|
|
PD412611DIODE MODULE DUAL |
2,117 | 774.63 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 2600 V | 1200A | 1.25 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 22 µs | 200 mA @ 2600 V | -40°C ~ 150°C | Chassis Mount |
|
|
PD414010DIODE MODULE DUAL |
3,445 | 861.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Series Connection | Standard | 4000 V | 1100A | 1.35 V @ 3000 A | Standard Recovery >500ns, > 200mA (Io) | 25 µs | 200 mA @ 4000 V | -40°C ~ 150°C | Chassis Mount |
|
|
LD411660DIODE MODULE 1.6KV 600A POWRBLOK |
3,264 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 1600 V | 600A | - | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 1600 V | -40°C ~ 150°C | Chassis Mount |
|
|
CC240610DIODE MODULE 600V 100A |
3,339 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 100A (DC) | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 20 mA @ 600 V | - | Chassis Mount |
|
|
CC240650DIODE MODULE 600V 50A |
2,739 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 50A (DC) | 1.5 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 10 mA @ 600 V | - | Chassis Mount |
|
|
CC2406500NDIODE MODULE 600V 50A |
3,681 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 50A (DC) | 2.5 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 20 mA @ 600 V | - | Chassis Mount |
|
|
CC241210DIODE MODULE 1.2KV 100A |
2,186 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 1200 V | 100A (DC) | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 20 mA @ 1200 V | - | Chassis Mount |
|
|
CC241250DIODE MODULE 1.2KV 50A |
3,886 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Common Cathode | Standard | 1200 V | 50A (DC) | 1.5 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 10 mA @ 1200 V | - | Chassis Mount |
|
|
CD240602DIODE MODULE 600V 20A |
2,875 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 Pair Series Connection | Standard | 600 V | 20A (DC) | 1.5 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | 800 ns | 5 mA @ 600 V | - | Chassis Mount |
