| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBRB60100CTDIODE ARRAY SCHOTTKY 100V D2PAK |
3,935 | 1.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 Pair Common Cathode | Schottky | 100 V | - | 900 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -55°C ~ 150°C | Surface Mount |
|
30CPQ040DIODE SCHOTTKY 40V 15A TO247AD |
2,671 | 1.06 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 40 V | 15A | 680 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | -55°C ~ 150°C | Through Hole |
|
|
30CPQ050DIODE SCHOTTKY 50V 15A TO247AD |
2,739 | 1.06 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 50 V | 15A | 800 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 800 µA @ 50 V | -55°C ~ 150°C | Through Hole |
|
|
30CPQ135DIODE SCHOTTKY 135V 15A TO247AD |
2,386 | 1.12 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 135 V | 15A | 860 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 135 V | -55°C ~ 175°C | Through Hole |
|

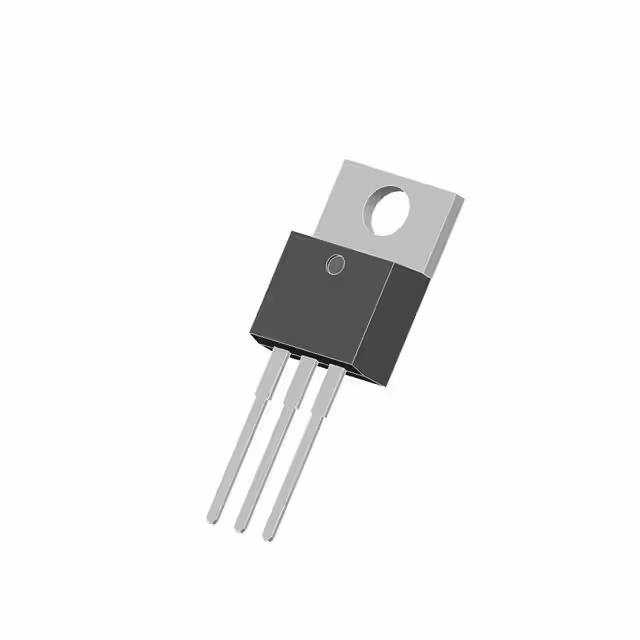

40CTQ015SCHOTTKY RECTIFIER 15V 40A TO-22 |
3,886 | 1.20 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 15 V | 20A | 410 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10.5 mA @ 15 V | -55°C ~ 150°C | Through Hole |
|
SDURF3060CTRDIODE ARRAY GP 600V ITO220AB |
2,506 | 1.24 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Anode | Standard | 600 V | - | 2.03 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 µA @ 600 V | -55°C ~ 150°C | Through Hole |
|
|
STF40120CDIODE ARRAY SCHOTTKY 120V ITO220 |
2,896 | 1.59 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 120 V | - | 970 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 120 V | -55°C ~ 150°C | Through Hole |
|
|
MBRF40200CTRDIODE ARRAY SCHOTTKY 200V ITO220 |
3,991 | 1.59 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Anode | Schottky | 200 V | - | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | Through Hole |
|
|
MBRF40150CTDIODE ARRAY SCHOTTKY 150V ITO220 |
2,520 | 1.63 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | - | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 150°C | Through Hole |
|
|
MBRF40200CTDIODE ARRAY SCHOTTKY 200V ITO220 |
3,289 | 1.63 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 200 V | - | 950 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | Through Hole |
|
MBR60150CTDIODE ARRAY SCHOTTKY 150V TO220 |
2,803 | 1.70 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 150 V | - | 940 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 150°C | Through Hole |
|
|
SDUR6020WTDIODE ARRAY GP 200V TO247AD |
3,497 | 2.44 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Standard | 200 V | - | 1.2 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 10 µA @ 200 V | -55°C ~ 150°C | Through Hole |
|
|
MBR8045WTDIODE ARRAY SCHOTTKY 45V TO247AD |
3,029 | 3.60 |
RFQ |
Datasheet |
Tube | - | Active | 1 Pair Common Cathode | Schottky | 45 V | - | 600 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 150°C | Through Hole |
|
84CNQ045DIODE SCHOTTKY 45V 40A PRM2 |
2,734 | 15.59 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 40A | 620 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 125°C | Chassis Mount |
|
84CNQ045SMDIODE SCHOTTKY 45V 40A PRM2-SM |
2,283 | 15.59 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 45 V | 40A | 620 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 45 V | -55°C ~ 125°C | Through Hole |
|
|
84CNQ060DIODE SCHOTTKY 60V 40A PRM2 |
3,214 | 15.59 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 40A | 620 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 60 V | -55°C ~ 125°C | Chassis Mount |
|
|
87CNQ020DIODE SCHOTTKY 20V 40A PRM2 |
3,220 | 15.59 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 20 V | 40A | 510 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5.5 mA @ 20 V | -55°C ~ 150°C | Chassis Mount |
|
|
88CNQ060DIODE SCHOTTKY 60V 40A PRM2 |
2,457 | 15.59 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 40A | 770 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 640 µA @ 60 V | -55°C ~ 175°C | Chassis Mount |
|
|
84CNQ060SMDIODE SCHOTTKY 60V 40A PRM2-SM |
3,252 | 15.58 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 60 V | 40A | 620 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 60 V | -55°C ~ 125°C | Through Hole |
|
|
87CNQ020SMDIODE SCHOTTKY 20V 40A PRM2-SM |
2,363 | 15.58 |
RFQ |
Datasheet |
Bulk | - | Active | 1 Pair Common Cathode | Schottky | 20 V | 40A | 510 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5.5 mA @ 20 V | -55°C ~ 150°C | Through Hole |
