Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeConfiguration	DiodeType	Voltage-DCReverse(Vr)(Max)	Current-AverageRectified(Io)(perDiode)	Voltage-Forward(Vf)(Max)@If	Speed	ReverseRecoveryTime(trr)	Current-ReverseLeakage@Vr	OperatingTemperature-Junction	MountingType
BAT54SLT1G DIODE ARRAY SCHOTTKY 30V SOT23-3 onsemi	2,108	0.18	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT),Bulk	-	Active	1 Pair Series Connection	Schottky	30 V	200mA (DC)	800 mV @ 100 mA	Small Signal =< 200mA (Io), Any Speed	5 ns	2 µA @ 25 V	125°C (Max)	Surface Mount
BAV199LT1G DIODE ARRAY GP 70V 215MA SOT23-3 onsemi	2,126	0.22	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Standard	70 V	215mA (DC)	1.25 V @ 150 mA	Standard Recovery >500ns, > 200mA (Io)	3 µs	5 nA @ 70 V	-65°C ~ 150°C	Surface Mount
BAS40-04LT1G DIODE ARRAY SCHOTTKY 40V SOT23-3 onsemi	2,640	0.28	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Schottky	40 V	120mA (DC)	1 V @ 40 mA	Small Signal =< 200mA (Io), Any Speed	-	1 µA @ 25 V	-55°C ~ 150°C	Surface Mount
BAV23S DIODE ARRAY GP 250V 200MA SOT23 onsemi	3,546	0.35	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Standard	250 V	200mA	1.25 V @ 200 mA	Small Signal =< 200mA (Io), Any Speed	50 ns	100 nA @ 250 V	150°C (Max)	Surface Mount
MMBD4148CC DIODE ARRAY GP 100V 200MA SOT23 onsemi	3,414	0.37	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Standard	100 V	200mA	1 V @ 10 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	5 µA @ 75 V	-55°C ~ 150°C	Surface Mount
SBAT54SLT1G DIODE ARRAY SCHOTTKY 30V SOT23-3 onsemi	2,434	0.38	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive	Active	1 Pair Series Connection	Schottky	30 V	200mA (DC)	800 mV @ 100 mA	Small Signal =< 200mA (Io), Any Speed	5 ns	2 µA @ 25 V	-55°C ~ 150°C	Surface Mount
MMBD1503A DIODE ARRAY GP 200V 200MA SOT23 onsemi	2,539	0.42	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Standard	200 V	200mA	1.1 V @ 200 mA	Small Signal =< 200mA (Io), Any Speed	-	10 nA @ 180 V	150°C (Max)	Surface Mount
SBAT54CWT1G DIODE ARRAY SCHOTTKY 30V SOT323 onsemi	2,951	0.49	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	30 V	200mA (DC)	800 mV @ 100 mA	Small Signal =< 200mA (Io), Any Speed	5 ns	2 µA @ 25 V	-55°C ~ 125°C	Surface Mount

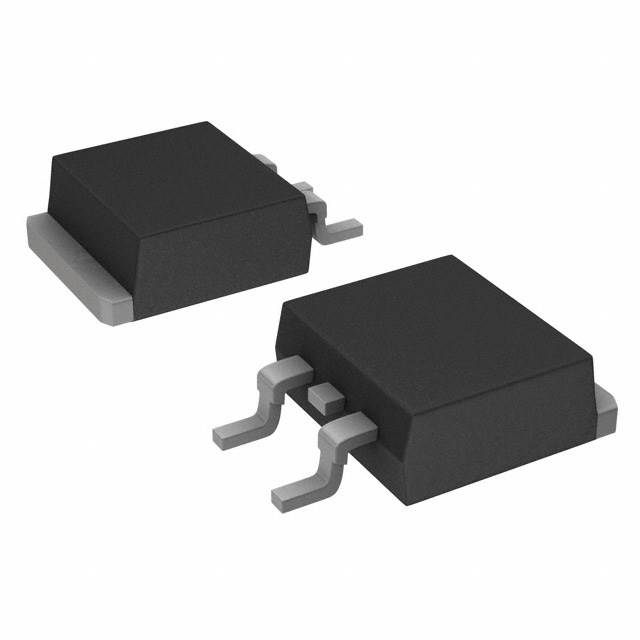

NTSB30100CTT4G DIODE ARRAY SCHOTTKY 100V D2PAK onsemi	2,073	1.63	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Schottky	100 V	15A	850 mV @ 15 A	Fast Recovery =< 500ns, > 200mA (Io)	-	500 µA @ 100 V	-40°C ~ 150°C	Surface Mount
MBRF20100CTG DIODE ARRAY SCHOTTKY 100V TO220F onsemi	3,263	1.62	RFQ	Datasheet	Tube	SWITCHMODE™	Active	1 Pair Common Cathode	Schottky	100 V	10A	850 mV @ 10 A	Fast Recovery =< 500ns, > 200mA (Io)	-	150 µA @ 100 V	-65°C ~ 175°C	Through Hole
MUR1620CTRG DIODE ARRAY GP 200V 8A TO220AB onsemi	2,759	2.14	RFQ	Datasheet	Tube	SWITCHMODE™	Active	1 Pair Common Anode	Standard	200 V	8A	1.2 V @ 8 A	Fast Recovery =< 500ns, > 200mA (Io)	85 ns	5 µA @ 200 V	-65°C ~ 175°C	Through Hole
RURG3020CC DIODE ARRAY GP 200V 30A TO247 onsemi	2,318	5.17	RFQ	Datasheet	Tube	-	Active	1 Pair Common Cathode	Standard	200 V	30A	1 V @ 30 A	Fast Recovery =< 500ns, > 200mA (Io)	50 ns	250 µA @ 200 V	-65°C ~ 175°C	Through Hole
BAW56WT1G DIODE ARRAY GP 70V 200MA SC70-3 onsemi	3,451	0.16	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Anode	Standard	70 V	200mA (DC)	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	6 ns	2.5 µA @ 70 V	-55°C ~ 150°C	Surface Mount
BAW56LT1G DIODE ARRAY GP 70V 200MA SOT23-3 onsemi	2,910	0.16	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Anode	Standard	70 V	200mA (DC)	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	6 ns	2.5 µA @ 70 V	-55°C ~ 150°C	Surface Mount
BAV70M3T5G DIODE ARRAY GP 75V 200MA SOT723 onsemi	2,402	0.25	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Standard	75 V	200mA (DC)	1.25 V @ 150 mA	Small Signal =< 200mA (Io), Any Speed	6 ns	2.5 µA @ 70 V	-55°C ~ 150°C	Surface Mount
DAN222M3T5G DIODE ARRAY GP 80V 100MA SOT723 onsemi	2,601	0.28	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Cathode	Standard	80 V	100mA (DC)	1.2 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	100 nA @ 70 V	150°C (Max)	Surface Mount
SBAS40-04LT1G DIODE ARRAY SCHOTTKY 40V SOT23 onsemi	3,976	0.30	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	Active	1 Pair Series Connection	Schottky	40 V	120mA (DC)	1 V @ 40 mA	Small Signal =< 200mA (Io), Any Speed	-	1 µA @ 25 V	-55°C ~ 150°C	Surface Mount
SBAV99LT3G DIODE ARRAY GP 100V 215MA SOT23 onsemi	3,954	0.41	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Series Connection	Standard	100 V	215mA (DC)	1.25 V @ 150 mA	Fast Recovery =< 500ns, > 200mA (Io)	6 ns	2.5 µA @ 70 V	-65°C ~ 150°C	Surface Mount
MMBD2836LT1G DIODE ARRAY GP 75V 100MA SOT23-3 onsemi	3,349	0.18	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Anode	Standard	75 V	100mA (DC)	1.2 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	100 nA @ 50 V	-55°C ~ 150°C	Surface Mount
BAT54ALT1G DIODE ARRAY SCHOTTKY 30V SOT23-3 onsemi	2,729	0.20	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	1 Pair Common Anode	Schottky	30 V	200mA (DC)	800 mV @ 100 mA	Small Signal =< 200mA (Io), Any Speed	5 ns	2 µA @ 25 V	-55°C ~ 150°C	Surface Mount
