Diodes - Rectifiers - Arrays(14902)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBR2045CTB-13DIODE ARRAY SCHOTTKY |
2,125 | 0.00 |
RFQ |
Tape & Reel (TR) | SBR | Obsolete | 1 Pair Common Cathode | Super Barrier | 45 V | 20A | 540 mV @ 10 A | Standard Recovery >500ns, > 200mA (Io) | - | 500 µA @ 45 V | -65°C ~ 150°C | Surface Mount | |
|
SBR40100CTFP-GDIODE ARRAY SBR 100V 20A ITO220A |
2,566 | 0.00 |
RFQ |
Datasheet |
Tube | SBR® | Active | 1 Pair Common Cathode | Super Barrier | 100 V | 20A | 820 mV @ 20 A | Standard Recovery >500ns, > 200mA (Io) | - | 100 µA @ 100 V | -65°C ~ 175°C | Through Hole |
|

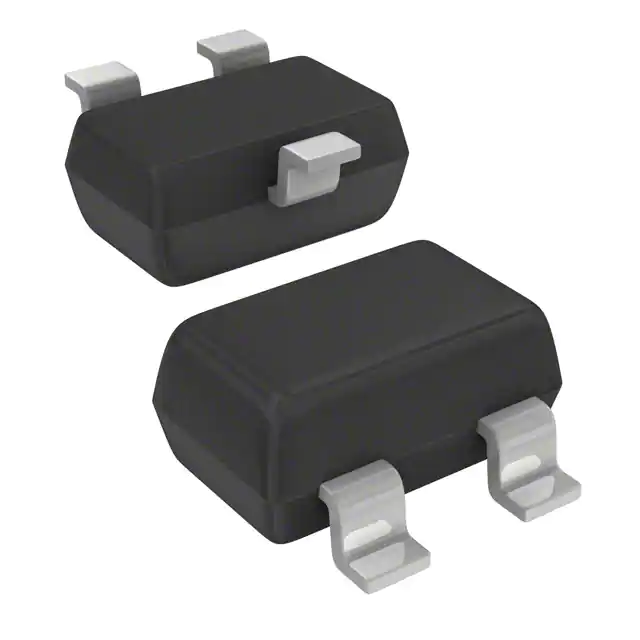

BAW56-7-F-31DIODE ARRAY GP SOT23 |
2,454 | 0.00 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | 1 Pair Common Anode | Standard | 75 V | 300mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 2.5 µA @ 75 V | -65°C ~ 150°C | Surface Mount | |
|
BAT54SW-7-GDIODE SCHOTTKY SOT323 |
2,573 | 0.00 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | 1 Pair Series Connection | Schottky | 30 V | 200mA (DC) | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -65°C ~ 125°C | Surface Mount | |
|
|
BAV70-7-F-31DIODE ARRAY GP SOT23 |
3,504 | 0.00 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | 1 Pair Common Cathode | Standard | 75 V | 150mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 2.5 µA @ 75 V | -65°C ~ 150°C | Surface Mount | |
|
|
MMBD7000-7-F-31DIODE ARRAY GP SOT23-3 |
3,802 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | 1 Pair Series Connection | Standard | 75 V | 300mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 3 µA @ 100 V | -65°C ~ 150°C | Surface Mount | |
|
|
BAT54CW-7-GDIODE SCHOTTKY SOT323 |
2,495 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 200mA (DC) | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -65°C ~ 125°C | Surface Mount | |
|
BAT54AT-7-GDIODE SCHOTTKY SOT23 |
3,070 | 0.00 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | 1 Pair Common Anode | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -65°C ~ 150°C | Surface Mount | |
|
|
BAT54C-7-GDIODE SCHOTTKY SOT23 |
3,867 | 0.00 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 200mA | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | -65°C ~ 150°C | Surface Mount | |
|
CDSV3-217-GDIODE SWITCHING SOT-323 |
2,123 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | 1 Pair Series Connection | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 70 V | 150°C | Surface Mount | |
|
|
CDST-21S-HFDIODE SWITCHING SOT-23 |
3,015 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | 1 Pair Series Connection | Standard | 250 V | 200mA | 1.25 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 200 V | 150°C | Surface Mount | |
|
|

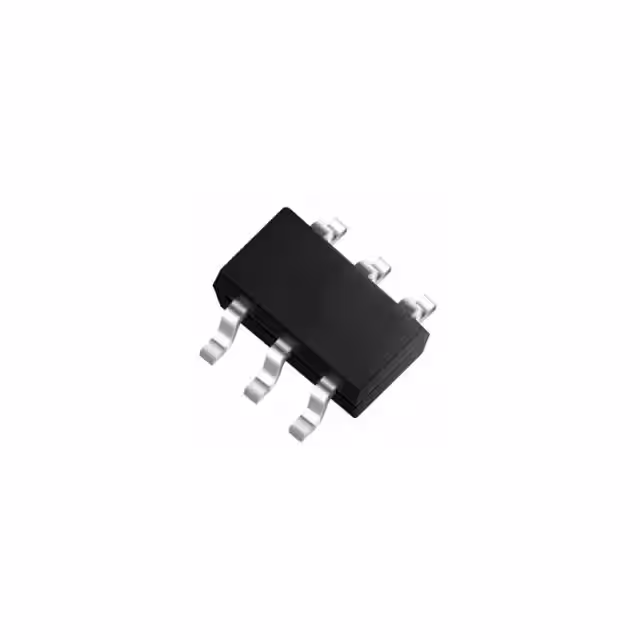

CDSH6-16-GDIODE SWITCHING SOT-563 |
2,705 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | 2 Independent | Standard | 75 V | 200mA | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 1 µA @ 75 V | 150°C | Surface Mount | |
|
|
CDBH3-00340-GDIODE ARRAY SCHOTTKY 40V SOT523 |
2,481 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 30mA | 370 mV @ 1 mA | Small Signal =< 200mA (Io), Any Speed | - | 1 µA @ 10 V | 125°C (Max) | Surface Mount |
|
CDBH3-54C-HFDIODE ARRAY SCHOTTKY 30V SOT523 |
2,291 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 200mA (DC) | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
CDBH3-54A-HFDIODE ARRAY SCHOTTKY 30V SOT523 |
2,013 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Anode | Schottky | 30 V | 200mA (DC) | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
CDBH3-54-GDIODE ARRAY SCHOTTKY 30V SOT523 |
3,189 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | - | Schottky | 30 V | - | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
CDBH3-54A-GDIODE ARRAY SCHOTTKY 30V SOT523 |
3,908 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Anode | Schottky | 30 V | 200mA (DC) | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
CDBH3-54-HFDIODE SCHOTTKY 30V 200MA SOT523 |
3,974 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | - | Schottky | 30 V | - | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
CDBH3-54S-HFDIODE ARRAY SCHOTTKY 30V SOT523 |
2,144 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 Pair Series Connection | Schottky | 30 V | 200mA (DC) | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount |
|
|
DB4X501K0RDIODE ARRAY SCHOTTKY 50V SMD |
2,800 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | - | - | - | - | - | - | - | - | - | - |
