Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
SVM1060XB_R2_00001 LOW VF SCHOTTKY RECTIFIER Panjit International Inc.	2,960	0.85	RFQ		Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	850pF @ 4V, 1MHz	-	360 µA @ 60 V	60 V	10A	-55°C ~ 150°C	490 mV @ 10 A
SVT15100UB_R2_00001 EXTREME LOW VF SCHOTTKY BARRIER Panjit International Inc.	2,594	0.85	RFQ		Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	80 µA @ 100 V	100 V	15A	-55°C ~ 150°C	660 mV @ 15 A
PG600J_R2_00001 GLASS PASSIVATED JUNCTION PLASTI Panjit International Inc.	2,092	0.62	RFQ		Tape & Reel (TR),Cut Tape (CT)		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	150pF @ 4V, 1MHz	-	1 µA @ 600 V	600 V	6A	-55°C ~ 150°C	1 V @ 6 A
ED503S_S2_00001 SUPERFAST RECOVERY RECTIFIERS Panjit International Inc.	2,189	0.81	RFQ		Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	35 ns	1 µA @ 300 V	300 V	5A	-55°C ~ 150°C	1.25 V @ 5 A
ED504S_L2_00001 SUPERFAST RECOVERY RECTIFIERS Panjit International Inc.	3,628	0.81	RFQ		Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	35 ns	1 µA @ 400 V	400 V	5A	-55°C ~ 150°C	1.25 V @ 5 A
ED502S_L2_00001 SUPERFAST RECOVERY RECTIFIERS Panjit International Inc.	2,823	0.81	RFQ		Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	35 ns	1 µA @ 200 V	200 V	5A	-55°C ~ 150°C	950 mV @ 5 A
ED503S_L2_00001 SUPERFAST RECOVERY RECTIFIERS Panjit International Inc.	3,692	0.81	RFQ		Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	35 ns	1 µA @ 300 V	300 V	5A	-55°C ~ 150°C	1.25 V @ 5 A

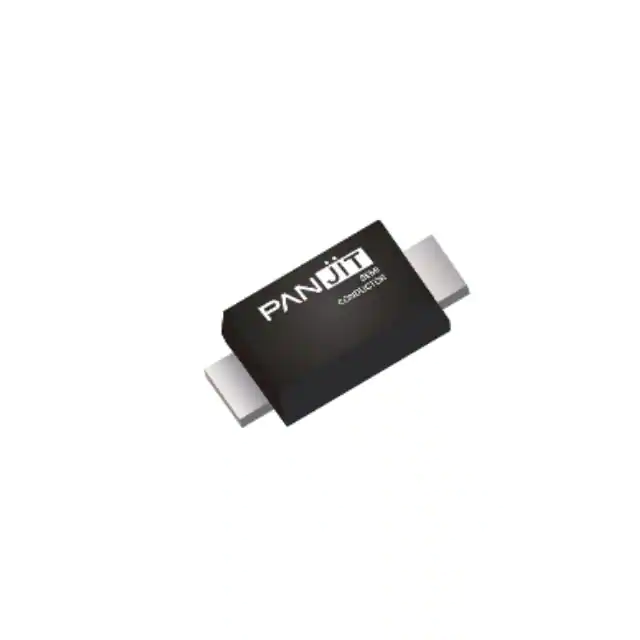

SSM3060VHE-AU_R1_000A1 SOD-123HE, SKY Panjit International Inc.	2,196	0.55	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	180pF @ 4V, 1MHz	-	220 µA @ 60 V	60 V	3A	-55°C ~ 150°C	500 mV @ 3 A
SBA0840AS-AU_R1_000A1 SOD-123, SKY Panjit International Inc.	2,649	0.36	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	50 µA @ 40 V	40 V	800mA	-55°C ~ 150°C	700 mV @ 800 mA
SBA0820AS-AU_R1_000A1 SOD-123, SKY Panjit International Inc.	2,075	0.36	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	100 µA @ 20 V	20 V	800mA	-55°C ~ 150°C	550 mV @ 800 mA
SBA130CS-AU_R1_000A1 SOD-323, SKY Panjit International Inc.	3,243	0.43	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	100 µA @ 30 V	30 V	1A	-55°C ~ 150°C	470 mV @ 1 A
SBA120CS-AU_R1_000A1 SOD-323, SKY Panjit International Inc.	2,255	0.43	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	100 µA @ 20 V	20 V	1A	-55°C ~ 150°C	450 mV @ 1 A
SBA230AH-AU_R1_000A1 SOD-123HE, SKY Panjit International Inc.	3,713	0.50	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	100 µA @ 30 V	30 V	2A	-55°C ~ 150°C	490 mV @ 2 A
SBA340AH-AU_R1_000A1 SOD-123HE, SKY Panjit International Inc.	3,268	0.49	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	150 µA @ 40 V	40 V	3A	-55°C ~ 150°C	480 mV @ 3 A
SRM54AV-AU_R1_000A1 SMB, SKY Panjit International Inc.	3,016	0.54	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	350pF @ 4V, 1MHz	-	210 µA @ 45 V	45 V	5A	-55°C ~ 150°C	490 mV @ 5 A
SBT510VAFC_R1_00001 SMAF-C, SKY Panjit International Inc.	3,094	0.42	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Obsolete	Surface Mount	-	-	20 µA @ 100 V	100 V	5A	-55°C ~ 150°C	710 mV @ 5 A
