| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-5EWL06FNTRL-M3DIODE GEN PURP 600V 5A D-PAK |
2,703 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 25 ns | 5 µA @ 600 V | 600 V | 5A | -65°C ~ 175°C | 1.85 V @ 5 A |
|
SL44-E3/9ATDIODE SCHOTTKY 40V 4A DO214AB |
2,180 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 40 V | 40 V | 4A | -55°C ~ 125°C | 440 mV @ 4 A | |
|
|
VS-5EWL06FNTRR-M3DIODE GEN PURP 600V 5A D-PAK |
3,797 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 145 ns | 5 µA @ 600 V | 600 V | 5A | -65°C ~ 175°C | 1.2 V @ 5 A |
|
V10PM12HM3_A/HDIODE SCHOTTKY 120V 3.9A TO277A |
3,486 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, eSMP®, TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 400 µA @ 120 V | 120 V | 3.9A | -40°C ~ 150°C | 830 mV @ 10 A |
|
|
VS-5EWX06FNTRL-M3DIODE GEN PURP 600V 5A D-PAK |
2,520 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 480 ns | 20 µA @ 600 V | 600 V | 5A | -65°C ~ 175°C | 2.9 V @ 5 A | |
|
|
V10PM12HM3_A/IDIODE SCHOTTKY 120V 3.9A TO277A |
3,658 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, eSMP®, TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 400 µA @ 120 V | 120 V | 3.9A | -40°C ~ 150°C | 830 mV @ 10 A |
|
|
VS-5EWX06FNTRR-M3DIODE GEN PURP 600V 5A D-PAK |
3,749 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 18 ns | 20 µA @ 600 V | 600 V | 5A | -65°C ~ 175°C | 2.9 V @ 5 A |
|
V15PM45-M3/IRECTIFIER BARRIER SCHOTTKY TO-27 |
3,735 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | eSMP®, TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 3000pF @ 4V, 1MHz | - | 700 µA @ 45 V | 45 V | 15A | -40°C ~ 175°C | 600 mV @ 15 A |
|
|
VS-8EWS16STRL-M3DIODE GEN PURP 1.6KV 8A D-PAK |
2,105 | 1.63 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 50 µA @ 1600 V | 1600 V | 8A | -55°C ~ 150°C | 1.1 V @ 8 A | |
|
|
VS-8EWS16STR-M3DIODE GEN PURP 1.6KV 8A D-PAK |
2,916 | 1.63 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 50 µA @ 1600 V | 1600 V | 8A | -40°C ~ 150°C | 1.1 V @ 8 A | |
|
VS-25FR20DIODE GEN PURP 200V 25A DO203AA |
2,362 | 3.62 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 12 mA @ 200 V | 200 V | 25A | -65°C ~ 175°C | 1.3 V @ 78 A | |
|
|
VS-8EWS16STRR-M3DIODE GEN PURP 1.6KV 8A D-PAK |
2,933 | 1.63 |
RFQ |
Datasheet |
Tape & Reel (TR) | FRED Pt® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 50 µA @ 1600 V | 1600 V | 8A | -40°C ~ 150°C | 1.1 V @ 8 A |
|
VS-HFA16PB120HN3DIODE GEN PURP 1.2KV 16A TO247AC |
2,910 | 3.62 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 90 ns | 20 µA @ 1200 V | 1200 V | 16A | -55°C ~ 150°C | 3 V @ 16 A |
|
VS-ETH3006STRLHM3DIODE GEN PURP 600V 30A TO263AB |
3,751 | 2.84 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 26 ns | 30 µA @ 600 V | 600 V | 30A | -65°C ~ 175°C | 2.65 V @ 30 A |
|

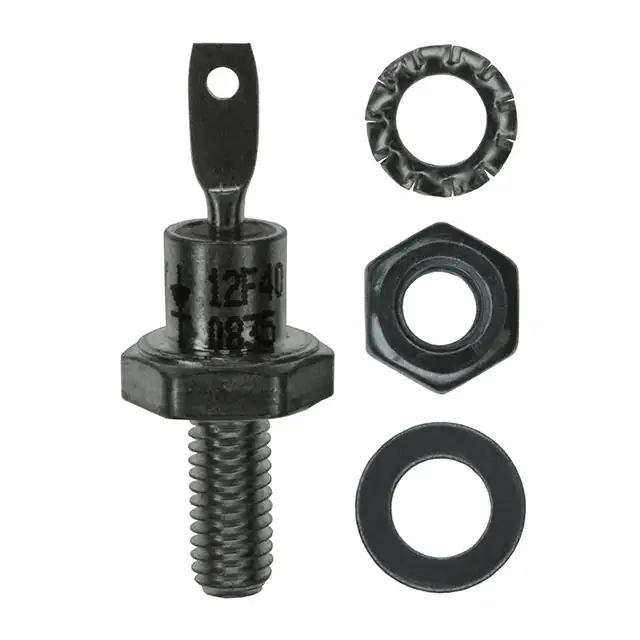

VS-12F40DIODE GEN PURP 400V 12A DO203AA |
2,024 | 4.05 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 12 mA @ 400 V | 400 V | 12A | -65°C ~ 175°C | 1.26 V @ 38 A | |
|
|
V10P12HM3_A/IDIODE GEN PURP 120V 10A TO277A |
2,868 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, eSMP®, TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 400 µA @ 120 V | 120 V | 10A | -40°C ~ 150°C | 820 mV @ 10 A |
|
VFT5200-E3/4WDIODE SCHOTTKY 5A 200V ITO-220AB |
2,267 | 0.39 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 150 µA @ 200 V | 200 V | 5A | -40°C ~ 150°C | 1.6 V @ 5 A | |
|
|
VS-8EWS16S-M3DIODE GEN PURP 1.6KV 8A TO252 |
2,731 | 1.63 |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 50 µA @ 1600 V | 1600 V | 8A | -40°C ~ 150°C | 1.1 V @ 8 A | |
|
|
VS-ETH3006STRRHM3DIODE GEN PURP 600V 30A TO263AB |
2,075 | 2.84 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 26 ns | 30 µA @ 600 V | 600 V | 30A | -65°C ~ 175°C | 2.65 V @ 30 A |
|

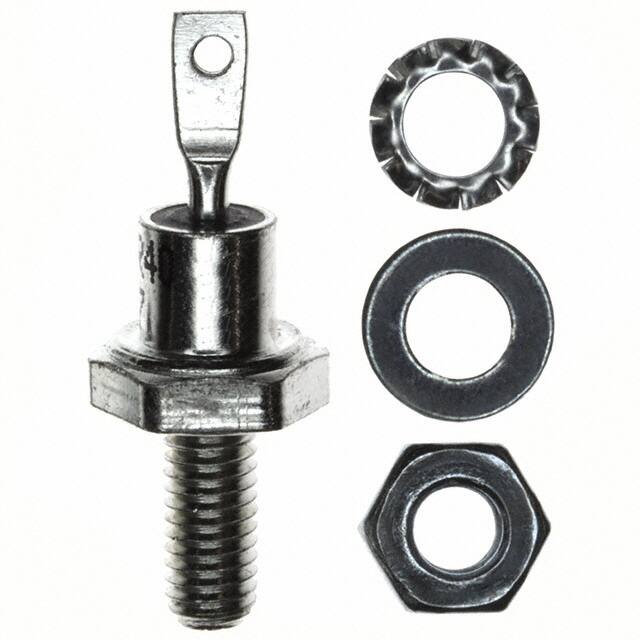

VS-12FR40DIODE GEN PURP 400V 12A DO203AA |
3,814 | 4.05 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 12 mA @ 400 V | 400 V | 12A | -65°C ~ 175°C | 1.26 V @ 38 A |
