| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRD3901DIODE GEN PURP 200V 20A DO203AB |
2,250 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | 350 ns | 50 µA @ 200 V | 200 V | 20A | -40°C ~ 125°C | 1.65 V @ 62.8 A | |
|
|
IRD3902DIODE GEN PURP 300V 20A DO203AB |
2,238 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Chassis, Stud Mount | - | 350 ns | 50 µA @ 300 V | 300 V | 20A | -40°C ~ 125°C | 1.65 V @ 62.8 A | |
|
1N4005/54DIODE GEN PURP 600V 1A DO204AL |
3,043 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 600 V | 600 V | 1A | -50°C ~ 150°C | 1.1 V @ 1 A | |
|
|
IRD3903DIODE GEN PURP 400V 20A DO203AB |
3,472 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | 350 ns | 50 µA @ 400 V | 400 V | 20A | -40°C ~ 125°C | 1.65 V @ 62.8 A | |
|
|
1N4007/54DIODE GEN PURP 1KV 1A DO204AL |
2,834 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | |
|
|
IRD3909DIODE GEN PURP 50V 30A DO203AB |
2,518 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | 350 ns | 80 µA @ 50 V | 50 V | 30A | -40°C ~ 125°C | 1.8 V @ 62.8 A | |
|
|
IRD3910DIODE GEN PURP 100V 30A DO203AB |
2,552 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | 350 ns | 80 µA @ 100 V | 100 V | 30A | -40°C ~ 125°C | 1.8 V @ 62.8 A | |
|
|
IRD3911DIODE GEN PURP 200V 30A DO203AB |
3,718 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | 350 ns | 80 µA @ 200 V | 200 V | 30A | -40°C ~ 125°C | 1.8 V @ 62.8 A | |
|
|
IRD3912DIODE GEN PURP 300V 30A DO203AB |
2,190 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | 350 ns | 80 µA @ 300 V | 300 V | 30A | -40°C ~ 125°C | 1.8 V @ 62.8 A | |
|
|
VS-1N3209DIODE GEN PURP 100V 15A DO203AB |
3,941 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 mA @ 100 V | 100 V | 15A | -65°C ~ 175°C | 1.5 V @ 15 A | |
|
|
VSD3913DIODE GEN PURP 400V 30A DO203AB |
2,745 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | - | - | 400 V | 30A | - | - | |
|
|
VS-1N3208DIODE GEN PURP 50V 15A DO203AB |
2,510 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 mA @ 50 V | 50 V | 15A | -65°C ~ 175°C | 1.5 V @ 15 A | |
|
SD253N04S15PVDIODE GEN PURP 400V 250A DO205AB |
2,744 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Stud Mount | - | 1.5 µs | 35 mA @ 400 V | 400 V | 250A | -40°C ~ 125°C | 1.38 V @ 785 A | |
|
|
VS-1N2133RADIODE GEN PURP 300V 60A DO203AB |
3,049 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 mA @ 300 V | 300 V | 60A | -65°C ~ 200°C | 1.3 V @ 188 A | |
|
8EWF10SDIODE GEN PURP 1KV 8A DPAK |
2,112 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 270 ns | 100 µA @ 1000 V | 1000 V | 8A | -40°C ~ 150°C | 1.3 V @ 8 A | |
|
|
VS-1N2135RADIODE GEN PURP 400V 60A DO203AB |
2,980 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 mA @ 400 V | 400 V | 60A | -65°C ~ 200°C | 1.3 V @ 188 A | |
|
|
8EWF12SDIODE GEN PURP 1.2KV 8A DPAK |
2,589 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | 270 ns | 100 µA @ 1200 V | 1200 V | 8A | -40°C ~ 150°C | 1.3 V @ 8 A | |
|
|
VS-1N1185RDIODE GEN PURP 150V 35A DO203AB |
2,907 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 mA @ 150 V | 150 V | 35A | -65°C ~ 190°C | 1.7 V @ 110 A | |
|

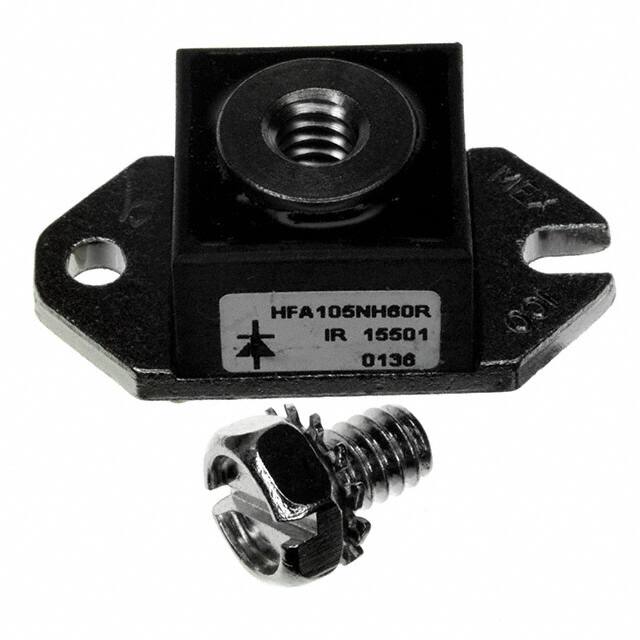

HFA105NH60RDIODE GEN PURP 600V 105A HALFPAK |
2,617 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFRED® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Chassis Mount | - | 140 ns | 30 µA @ 600 V | 600 V | 105A | - | 1.5 V @ 105 A |
|
|
VS-1N1186RDIODE GEN PURP 200V 35A DO203AB |
2,399 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 10 mA @ 200 V | 200 V | 35A | -65°C ~ 190°C | 1.7 V @ 110 A |
