| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

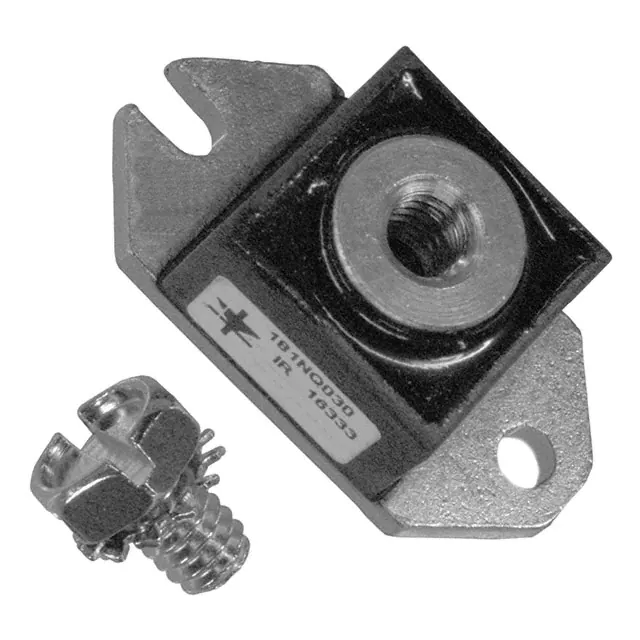

181NQ040DIODE SCHOTTKY 40V 180A HALFPAK |
3,749 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 7800pF @ 5V, 1MHz | - | 15 mA @ 40 V | 40 V | 180A | - | 660 mV @ 180 A | |
|
20TQ045STRLDIODE SCHOTTKY 45V 20A D2PAK |
2,463 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 1400pF @ 5V, 1MHz | - | 2.7 mA @ 45 V | 45 V | 20A | -55°C ~ 150°C | 570 mV @ 20 A | |
|
RS1B/11DIODE GEN PURP 100V 1A DO214AC |
2,743 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 10pF @ 4V, 1MHz | 150 ns | 5 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A | |
|
181NQ045DIODE SCHOTTKY 45V 180A HALFPAK |
2,172 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 7800pF @ 5V, 1MHz | - | 15 mA @ 45 V | 45 V | 180A | - | 660 mV @ 180 A | |
|
|
20TQ045STRRDIODE SCHOTTKY 45V 20A D2PAK |
2,630 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | 1400pF @ 5V, 1MHz | - | 2.7 mA @ 45 V | 45 V | 20A | -55°C ~ 150°C | 570 mV @ 20 A | |
|
30WQ10FNTRDIODE SCHOTTKY 100V 3.5A DPAK |
2,508 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 1 mA @ 100 V | 100 V | 3.5A | -40°C ~ 150°C | 810 mV @ 3 A | |
|
|
RS1D/1DIODE GEN PURP 200V 1A DO214AC |
2,694 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 10pF @ 4V, 1MHz | 150 ns | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A | |
|
|
181NQ045RDIODE SCHOTTKY 45V 180A HALFPAK |
3,947 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 7800pF @ 5V, 1MHz | - | 15 mA @ 45 V | 45 V | 180A | - | 660 mV @ 180 A | |
|
300HF40PDIODE GEN PURP 400V 300A DO205AB |
3,653 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Stud Mount | - | - | 20 mA @ 400 V | 400 V | 300A | -40°C ~ 180°C | - | |
|
|
SD453N16S20PCDIODE GEN PURP 1.6KV 400A B8 |
2,516 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | 2 µs | 50 mA @ 1600 V | 1600 V | 400A | -40°C ~ 150°C | 2.2 V @ 1500 A | |
|
|
RS1G/1DIODE GEN PURP 400V 1A DO214AC |
3,107 | 0.00 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 10pF @ 4V, 1MHz | 150 ns | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A | ||
|
|
182NQ030DIODE SCHOTTKY 30V 180A HALFPAK |
3,990 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 7700pF @ 5V, 1MHz | - | 15 mA @ 30 V | 30 V | 180A | - | 510 mV @ 180 A | |
|
|
300HFR40PDIODE GEN PURP 400V 300A DO205AB |
2,628 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Stud Mount | - | - | 20 mA @ 400 V | 400 V | 300A | -40°C ~ 180°C | - | |
|
|
SD453N16S30PCDIODE GEN PURP 1.6KV 450A B8 |
2,328 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 3 µs | 50 mA @ 1600 V | 1600 V | 450A | -40°C ~ 150°C | 1.85 V @ 1500 A | |
|
|
RS1J/1DIODE GEN PURP 600V 1A DO214AC |
3,737 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 7pF @ 4V, 1MHz | 250 ns | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A | |
|

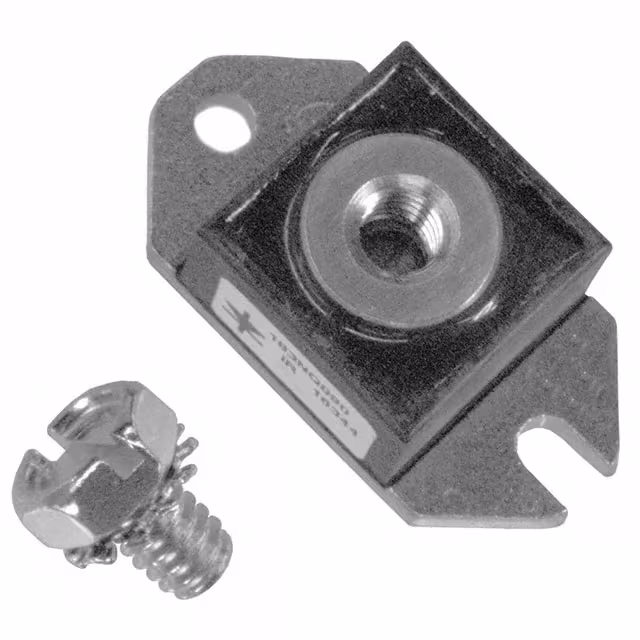

183NQ080DIODE SCHOTTKY 80V 180A HALFPAK |
3,700 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 4150pF @ 5V, 1MHz | - | 4.5 mA @ 80 V | 80 V | 180A | - | 950 mV @ 180 A | |
|
|
300UR5ADIODE GEN PURP 50V 300A DO205AB |
3,291 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Stud Mount | - | - | 40 mA @ 50 V | 50 V | 300A | -65°C ~ 200°C | 1.4 V @ 942 A | |
|
|
VS-SD453N25S20PCDIODE GEN PURP 2.5KV 400A B8 |
2,413 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 2 µs | 50 mA @ 2500 V | 2500 V | 400A | -40°C ~ 150°C | 2.2 V @ 1500 A | |
|
RS3G/7TDIODE GEN PURP 400V 3A DO214AB |
3,380 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 44pF @ 4V, 1MHz | 150 ns | 10 µA @ 400 V | 400 V | 3A | -55°C ~ 150°C | 1.3 V @ 2.5 A | ||
|
30HFUR-100DIODE GEN PURP 100V 30A DO203AB |
3,663 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | 80 ns | 35 µA @ 100 V | 100 V | 30A | -40°C ~ 125°C | 1.45 V @ 30 A |
