| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-60EPF04PBFDIODE GEN PURP 400V 60A TO247AC |
3,331 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 180 ns | 100 µA @ 400 V | 400 V | 60A | -40°C ~ 150°C | 1.3 V @ 60 A | |
|
MBR1650HE3/45DIODE SCHOTTKY 50V 16A TO220AB |
3,703 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 1 mA @ 50 V | 50 V | 16A | -65°C ~ 150°C | 750 mV @ 16 A | |
|
1N3613GPHE3/73DIODE GEN PURP 600V 1A DO204AL |
3,497 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | Automotive, AEC-Q101, Superectifier® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 2 µs | 1 µA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1 V @ 1 A |
|
BYV26EGPHE3/73DIODE GEN PURP 1KV 1A DO204AC |
2,375 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | SUPERECTIFIER® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 15pF @ 4V, 1MHz | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -65°C ~ 175°C | 2.5 V @ 1 A |
|
|
VS-60EPF10PBFDIODE GEN PURP 1KV 60A TO247AC |
3,795 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 480 ns | 100 µA @ 1000 V | 1000 V | 60A | -40°C ~ 150°C | 1.4 V @ 60 A | ||
|
|
MBR1660HE3/45DIODE SCHOTTKY 60V 16A TO220AB |
2,738 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 1 mA @ 60 V | 60 V | 16A | -65°C ~ 150°C | 750 mV @ 16 A | |
|
|
1N3957GP-E3/73DIODE GEN PURP 1KV 1A DO204AL |
3,215 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 1 µA @ 1000 V | 1000 V | 1A | -65°C ~ 175°C | 1 V @ 1 A | |
|
|
BYW27-200GP-E3/73DIODE GEN PURP 200V 1A DO204AL |
3,860 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 8pF @ 4V, 1MHz | 3 µs | 200 nA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1 V @ 1 A | |

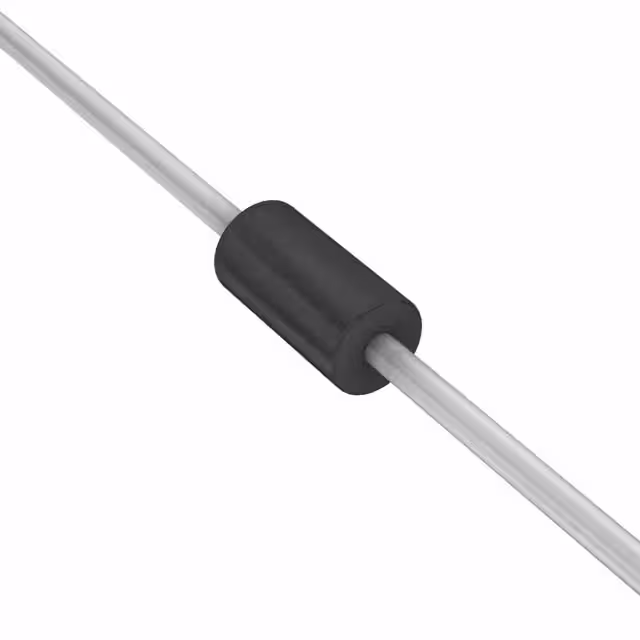

 Bidirectional.jpg)
|
FGP10D-E3/54DIODE GEN PURP 200V 1A DO204AL |
3,657 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 25pF @ 4V, 1MHz | 35 ns | 2 µA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 950 mV @ 1 A |
|
VS-80EPF02PBFDIODE GEN PURP 200V 80A TO247AC |
2,705 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 190 ns | 100 µA @ 200 V | 200 V | 80A | -40°C ~ 150°C | 1.25 V @ 80 A | |
|
MBR16H45-E3/45DIODE SCHOTTKY 45V 16A TO220AC |
2,651 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 100 µA @ 45 V | 45 V | 16A | -65°C ~ 175°C | 660 mV @ 16 A | |
|
|
1N3957GPHE3/73DIODE GEN PURP 1KV 1A DO204AL |
3,594 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | Automotive, AEC-Q101, Superectifier® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 8pF @ 4V, 1MHz | 2 µs | 1 µA @ 1000 V | 1000 V | 1A | -65°C ~ 175°C | 1 V @ 1 A |
|
|
BYW27-200GPHE3/73DIODE GEN PURP 200V 1A DO204AL |
2,019 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 8pF @ 4V, 1MHz | 3 µs | 200 nA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1 V @ 1 A | |
|
FGP20D-E3/54DIODE GEN PURP 200V 2A DO204AC |
3,314 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 45pF @ 4V, 1MHz | 35 ns | 2 µA @ 200 V | 200 V | 2A | -65°C ~ 175°C | 950 mV @ 2 A |
|
|
VS-80EPF04PBFDIODE GEN PURP 400V 80A TO247AC |
2,514 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 190 ns | 100 µA @ 400 V | 400 V | 80A | -40°C ~ 150°C | 1.25 V @ 80 A | |
|
|
MBR16H45HE3/45DIODE SCHOTTKY 45V 16A TO220AC |
3,586 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 100 µA @ 45 V | 45 V | 16A | -65°C ~ 175°C | 660 mV @ 16 A | |
|
|
1N4001GPE-E3/73DIODE GEN PURP 50V 1A DO204AL |
2,054 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | SUPERECTIFIER® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 8pF @ 4V, 1MHz | 2 µs | 5 µA @ 50 V | 50 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A |
|
|
BYW27-400GP-E3/73DIODE GEN PURP 400V 1A DO204AL |
3,510 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 8pF @ 4V, 1MHz | 3 µs | 200 nA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1 V @ 1 A | |
|
|
FGP30D-E3/54DIODE GEN PURP 200V 3A DO204AC |
3,389 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SUPERECTIFIER® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 70pF @ 4V, 1MHz | 35 ns | 5 µA @ 200 V | 200 V | 3A | -65°C ~ 175°C | 950 mV @ 3 A |
|
|
VS-80EPF10PBFDIODE GEN PURP 1KV 80A TO247AC |
2,417 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 480 ns | 100 µA @ 1000 V | 1000 V | 80A | -40°C ~ 150°C | 1.35 V @ 80 A |
