Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
VS-E5TH1506-M3 15A, 600V, "H" SERIES FRED PT IN Vishay General Semiconductor - Diodes Division	1,018	1.32	RFQ	Datasheet	Tube	FRED Pt®	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	38 ns	10 µA @ 600 V	600 V	15A	-55°C ~ 175°C	1.6 V @ 15 A
ES1D-E3/61T DIODE GEN PURP 200V 1A DO214AC Vishay General Semiconductor - Diodes Division	25,884	0.52	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	10pF @ 4V, 1MHz	25 ns	5 µA @ 200 V	200 V	1A	-55°C ~ 150°C	920 mV @ 1 A
ES1B-E3/61T DIODE GEN PURP 100V 1A DO214AC Vishay General Semiconductor - Diodes Division	520	0.52	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	10pF @ 4V, 1MHz	25 ns	5 µA @ 100 V	100 V	1A	-55°C ~ 150°C	920 mV @ 1 A
SS3P3-M3/84A DIODE SCHOTTKY 30V 3A DO220AA Vishay General Semiconductor - Diodes Division	17,456	0.50	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	eSMP®	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	130pF @ 4V, 1MHz	-	200 µA @ 30 V	30 V	3A	-55°C ~ 150°C	580 mV @ 3 A
BYG23M-E3/TR3 DIODE AVALANCHE 1KV 1.5A Vishay General Semiconductor - Diodes Division	13,000	0.42	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Avalanche	Active	Surface Mount	-	75 ns	5 µA @ 1000 V	1000 V	1.5A	-55°C ~ 150°C	1.7 V @ 1 A
VS-E5TH0812-M3 8A, 1200V, "H" SERIES FRED PT IN Vishay General Semiconductor - Diodes Division	1,184	1.39	RFQ		Tube	FRED Pt®	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	100 ns	50 µA @ 1200 V	1200 V	8A	-55°C ~ 175°C	2.5 V @ 8 A
ES07D-GS18 DIODE GEN PURP 200V 500MA DO219 Vishay General Semiconductor - Diodes Division	50,633	0.45	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	4pF @ 4V, 1MHz	25 ns	10 µA @ 200 V	200 V	500mA	-55°C ~ 150°C	980 mV @ 1 A
SB1H100-E3/73 DIODE SCHOTTKY 100V 1A DO204AL Vishay General Semiconductor - Diodes Division	11,755	0.52	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	-	-	1 µA @ 100 V	100 V	1A	175°C (Max)	770 mV @ 1 A
BYG21M-E3/TR DIODE AVALANCHE 1KV 1.5A Vishay General Semiconductor - Diodes Division	127,148	0.38	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Avalanche	Active	Surface Mount	-	120 ns	1 µA @ 1000 V	1000 V	1.5A	-55°C ~ 150°C	1.6 V @ 1.5 A
BYG10M-E3/TR DIODE AVALANCHE 1KV 1.5A Vishay General Semiconductor - Diodes Division	58,501	0.41	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Standard Recovery >500ns, > 200mA (Io)	Avalanche	Active	Surface Mount	-	4 µs	1 µA @ 1000 V	1000 V	1.5A	-55°C ~ 150°C	1.15 V @ 1.5 A
SS1H9-E3/61T DIODE SCHOTTKY 90V 1A DO214AC Vishay General Semiconductor - Diodes Division	21,435	0.41	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	1 µA @ 90 V	90 V	1A	175°C (Max)	770 mV @ 1 A
SS1H10-E3/61T DIODE SCHOTTKY 100V 1A DO214AC Vishay General Semiconductor - Diodes Division	3,862	0.41	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	1 µA @ 100 V	100 V	1A	175°C (Max)	770 mV @ 1 A
VSKY20301608-G4-08 DIODE SCHOTTKY 30V 2A 0603 Vishay General Semiconductor - Diodes Division	37,956	0.38	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	375pF @ 0V, 1MHz	-	150 µA @ 30 V	30 V	2A	125°C (Max)	530 mV @ 2 A

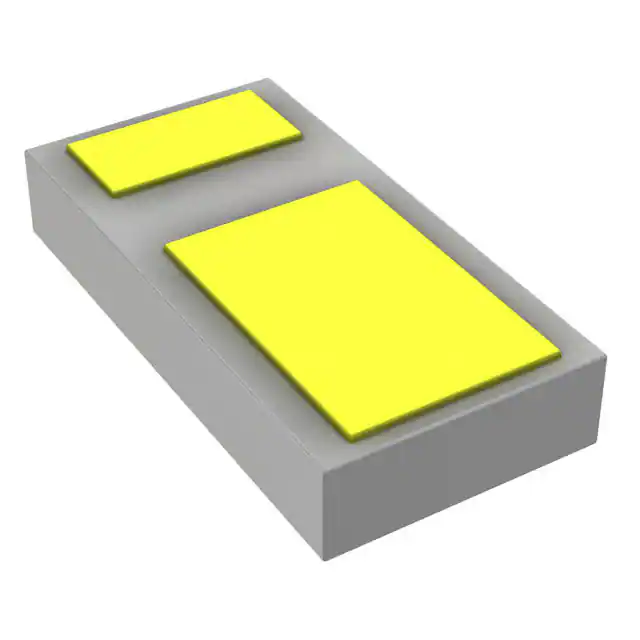

VSKY20401608-G4-08 DIODE SCHOTTKY 40V 2A CLP1608-2L Vishay General Semiconductor - Diodes Division	10,000	0.38	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	340pF @ 0V, 1MHz	-	150 µA @ 40 V	40 V	2A	125°C (Max)	580 mV @ 2 A
V12PM45-M3/H DIODE SCHOTTKY TMBS 12A 45V SMPC Vishay General Semiconductor - Diodes Division	2,935	0.74	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	eSMP®, TMBS®	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	2350pF @ 4V, 1MHz	-	500 µA @ 45 V	45 V	12A	-40°C ~ 175°C	600 mV @ 12 A
BAS40L-HG3-08 SCHOTTKY DIODE DFN1006-2A Vishay General Semiconductor - Diodes Division	7,320	0.35	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	2.9pF @ 0V, 1MHz	-	10 µA @ 40 V	40 V	200mA (DC)	150°C	1 V @ 40 mA
BAS40-00-E3-18 DIODE SCHOTTKY 40V 200MA SOT23 Vishay General Semiconductor - Diodes Division	4,740	0.35	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Small Signal =< 200mA (Io), Any Speed	Schottky	Active	Surface Mount	5pF @ 0V, 1MHz	5 ns	100 nA @ 30 V	40 V	200mA	125°C (Max)	1 V @ 40 mA
MSE07PB-M3/89A DIODE GP 100V 700MA MICROSMP Vishay General Semiconductor - Diodes Division	3,309	0.35	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Surface Mount	5pF @ 4V, 1MHz	780 ns	1 µA @ 100 V	100 V	700mA	-55°C ~ 175°C	1.08 V @ 700 mA
S07G-GS08 DIODE GP 400V 700MA DO219AB Vishay General Semiconductor - Diodes Division	11,924	0.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Surface Mount	4pF @ 4V, 1MHz	1.8 µs	10 µA @ 400 V	400 V	700mA	-55°C ~ 150°C	1.1 V @ 1 A
SB160-E3/54 DIODE SCHOTTKY 60V 1A DO204AL Vishay General Semiconductor - Diodes Division	6,511	0.51	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	-	-	500 µA @ 60 V	60 V	1A	-65°C ~ 150°C	650 mV @ 1 A
