| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2A6DIODE 1A 800V SOD-123F |
2,906 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 8pF @ 4V, 1MHz | - | 1 µA @ 800 V | 800 V | 2A | -55°C ~ 150°C | 1.05 V @ 2 A | |
|
M2GDIODE GLASS 1A 100V SMX |
2,610 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | - | 1 µA @ 100 V | 100 V | 1A | 150°C | 1 V @ 1 A | |
|
RL253DIODE GEN PURP 1000V 2.5A R-3 |
3,408 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 35pF @ 4V, 1MHz | - | 1 µA @ 1000 V | 1000 V | 2.5A | -55°C ~ 150°C | 1 V @ 2.5 A | |
|
FM307DIODE GP GLASS 3A 1000V SMC |
3,083 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | - | 1 µA @ 1000 V | 1000 V | 3A | 150°C | 1 V @ 3 A |
|
RL155DIODE GEN PURP 1000V 1.5A DO-15 |
2,718 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 20pF @ 4V, 1MHz | - | 1 µA @ 1000 V | 1000 V | 1.5A | -55°C ~ 150°C | 1 V @ 1.5 A | |
|
RL1N4006DIODE GEN PURP 1000V 1A A-405 |
2,135 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 1 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
FM4006DIODE GP GLASS 2A 800V SMA |
2,927 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | - | 5 µA @ 800 V | 800 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
|
|
FM304DIODE GP GLASS 3A 400V SMC |
2,121 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | - | 1 µA @ 400 V | 400 V | 3A | 150°C | 1 V @ 3 A |
|
|
RL154GDIODE GP GLASS 400V 1.5A DO-15 |
2,917 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 20pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 1.5A | -55°C ~ 150°C | 1.1 V @ 1.5 A | |
|
|
RL156GDIODE GP GLASS 800V 1.5A DO-15 |
3,679 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 20pF @ 4V, 1MHz | - | 5 µA @ 800 V | 800 V | 1.5A | -55°C ~ 150°C | 1.1 V @ 1.5 A | |
|
RL1606CDIODE GP GLASS 16A 800V TO-220 |
3,064 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 40pF @ 4V, 1MHz | - | 10 µA @ 800 V | 800 V | 16A | -65°C ~ 150°C | 1.1 V @ 8 A | |
|
|
1N5398DIODE GEN PURP 800V 1.5A DO-15 |
3,244 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 20pF @ 4V, 1MHz | - | 5 µA @ 800 V | 800 V | 1.5A | -65°C ~ 175°C | 1.1 V @ 1.5 A | |
|
FM203DIODE GEN GLASS 2A 200V SMB |
3,856 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | - | 1 µA @ 200 V | 200 V | 2A | -65°C ~ 175°C | 1 V @ 2 A |
|
1A2DIODE GEN PURP 1000V 1A R-1 |
2,882 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 1 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
|
RL1N4001DIODE GEN PURP 1000V 1A A-405 |
2,119 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 1 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|

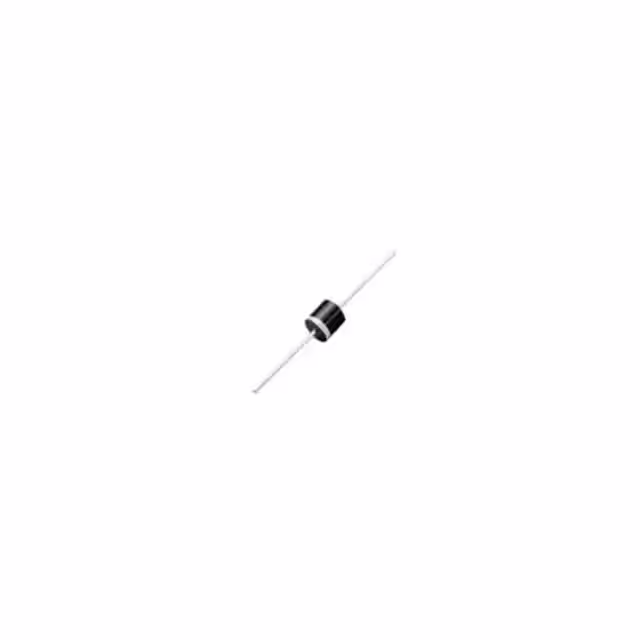

10A10DIODE GEN PURP 1000V 10A R-6 |
3,601 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 135pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 10A | -55°C ~ 150°C | 1.1 V @ 10 A | |
|
1N4004GDIODE GP GLASS 400V 1A DO-41 |
2,061 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 200 nA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1 V @ 1 A |
|
|
FM4005DIODE GP GLASS 2A 600V SMA |
2,422 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | - | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A |
|
|
RL204DIODE GEN PURP 1000V 2A DO-15 |
3,386 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 20pF @ 4V, 1MHz | - | 1 µA @ 1000 V | 1000 V | 2A | -55°C ~ 150°C | 1 V @ 2 A | |
|
|
RL152DIODE GEN PURP 1000V 1.5A DO-15 |
2,314 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 20pF @ 4V, 1MHz | - | 1 µA @ 1000 V | 1000 V | 1.5A | -55°C ~ 150°C | 1 V @ 1.5 A |
