Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
SB150 Schottky D, 50V, 1.00A DComponents	2,555	0.13	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	-	-	500 µA @ 50 V	50 V	1A	-50°C ~ 150°C	700 mV @ 1 A
UF4007 UF Rect, 1000V, 1.00A, 75ns DComponents	3,051	0.13	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	75 ns	5 µA @ 1000 V	1000 V	1A	-50°C ~ 175°C	1.7 V @ 1 A
SB120 SchottkyD, 20V, 1A DComponents	2,979	0.13	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	-	-	500 µA @ 20 V	20 V	1A	-50°C ~ 150°C	500 mV @ 1 A
SB130 SchottkyD, 30V, 1A DComponents	3,137	0.13	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	-	-	500 µA @ 30 V	30 V	1A	-50°C ~ 150°C	500 mV @ 1 A
SB140 SchottkyD, 40V, 1A DComponents	2,794	0.13	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	-	-	500 µA @ 40 V	40 V	1A	-50°C ~ 150°C	500 mV @ 1 A
RGL34J Fast Rect. 600V, 0.50A, 250ns DComponents	2,858	0.14	RFQ	Datasheet	Tape & Reel (TR)		RoHS	-	Standard	Active	-	-	250 ns	-	600 V	500mA	-	-
SUF4003 UF Rect, 200V, 1.00A, 50ns DComponents	3,158	0.14	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	50 ns	5 µA @ 200 V	200 V	1A	-50°C ~ 175°C	1 V @ 1 A
LL103A SchottkyD, 40V, 0.35A DComponents	3,697	0.14	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	50pF @ 0V, 1MHz	10 ns	5 µA @ 30 V	40 V	350mA	-55°C ~ 125°C	600 mV @ 200 mA
1N5818 SchottkyD, 30V, 1A DComponents	3,751	0.14	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	-	-	1 mA @ 30 V	30 V	1A	-50°C ~ 150°C	875 mV @ 3 A
EM513-AQ ST Rect, 1600V, 1A DComponents	3,851	0.14	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	1.5 µs	5 µA @ 1600 V	1600 V	1A	-50°C ~ 175°C	1.1 V @ 1 A
UF4007GP UF Rect, 1000V, 1.0A, 75ns DComponents	2,452	0.14	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	75 ns	5 µA @ 1000 V	1000 V	1A	-50°C ~ 175°C	1.7 V @ 1 A
S2MSMA-AQ ST Rect, 1000V, 2A DComponents	3,933	0.14	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	1.5 µs	5 µA @ 1000 V	1000 V	2A	-50°C ~ 150°C	1.1 V @ 2 A

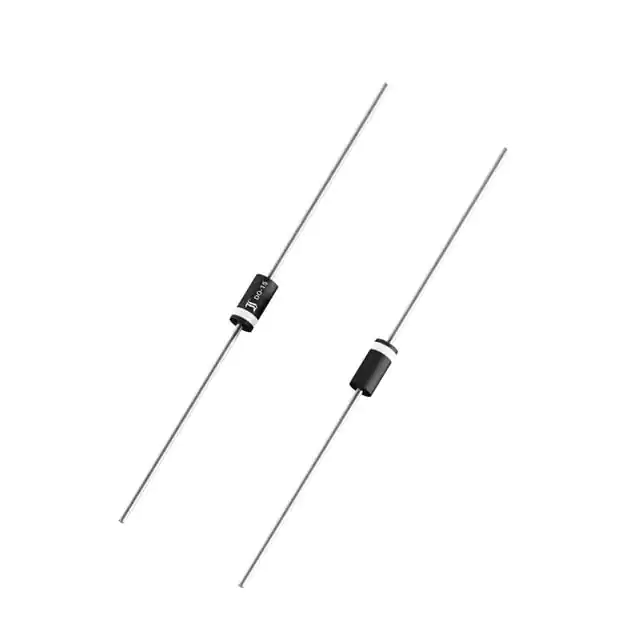

SB1100 SchottkyD, 100V, 1A DComponents	2,657	0.14	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	-	-	500 µA @ 100 V	100 V	1A	-50°C ~ 150°C	790 mV @ 1 A
RGL34K Fast Rect. 800V, 0.50A, 500ns DComponents	3,079	0.14	RFQ	Datasheet	Tape & Reel (TR)		RoHS	-	Standard	Active	-	-	500 ns	-	800 V	500mA	-	-
US1J-AQ UF Rect, 600V, 1.00A, 75ns DComponents	2,597	0.14	RFQ	Datasheet	Tape & Reel (TR)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	75 ns	5 µA @ 600 V	600 V	1A	-50°C ~ 150°C	1.4 V @ 1.5 A
US1G-AQ UF Rect, 400V, 1.00A, 50ns DComponents	3,623	0.14	RFQ	Datasheet	Tape & Reel (TR)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	50 ns	5 µA @ 400 V	400 V	1A	-50°C ~ 150°C	1.25 V @ 1 A
SA160 Fast Rect, 1000V, 1.00A, 300ns DComponents	3,463	0.14	RFQ	Datasheet	Tape & Reel (TR)		RoHS	-	Standard	Active	-	-	300 ns	-	1000 V	1A	-	-
ST1G ST Rect, 400V, 1A DComponents	2,088	0.14	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	1.5 µs	5 µA @ 400 V	400 V	1A	-50°C ~ 150°C	1.1 V @ 1 A

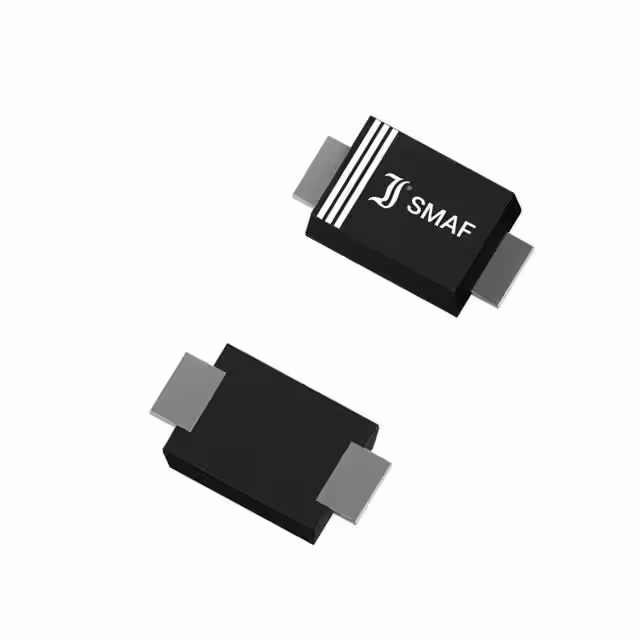

ST1M ST Rect, 1000V, 1A DComponents	3,399	0.14	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	1.5 µs	5 µA @ 1000 V	1000 V	1A	-50°C ~ 150°C	1.1 V @ 1 A
ST1K ST Rect, 800V, 1A DComponents	3,793	0.14	RFQ	Datasheet	Tape & Reel (TR)		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	1.5 µs	5 µA @ 800 V	800 V	1A	-50°C ~ 150°C	1.1 V @ 1 A
