Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
1N2434 DO8 100 AMP SILICON RECTIFIER Solid State Inc.	3,998	15.50	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	50 µA @ 500 V	500 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
1N5816R DO4 20 AMP RECTIFIER Solid State Inc.	3,259	6.50	RFQ	Datasheet	Box	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	35 ns	10 µA @ 150 V	150 V	20A	-65°C ~ 175°C	900 mV @ 10 A
1N3294 DO8 100 AMP SILICON RECTIFIER Solid State Inc.	2,066	15.50	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	50 µA @ 800 V	800 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
1N5812 DO4 20 AMP RECTIFIER Solid State Inc.	3,909	6.50	RFQ	Datasheet	Box	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	35 ns	10 µA @ 50 V	50 V	20A	-65°C ~ 175°C	900 mV @ 10 A
1N2437 DO8 150 AMP SILICON RECTIFIER Solid State Inc.	2,973	15.50	RFQ	Datasheet	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	50 µA @ 100 V	100 V	150A	-65°C ~ 200°C	1.1 V @ 200 A
1N5815R DO4 20 AMP RECTIFIER Solid State Inc.	2,242	6.50	RFQ	Datasheet	Box	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	35 ns	10 µA @ 125 V	125 V	20A	-65°C ~ 175°C	900 mV @ 10 A
1N3291R DO8 100 AMP SILICON RECTIFIER Solid State Inc.	2,750	15.50	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	50 µA @ 400 V	400 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
1N5815 DO4 20 AMP RECTIFIER Solid State Inc.	2,651	6.50	RFQ	Datasheet	Box	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	35 ns	10 µA @ 125 V	125 V	20A	-65°C ~ 175°C	900 mV @ 10 A
SD41 SHOTTKEY RECTIFIER 30 AMP 45 V Solid State Inc.	3,174	6.67	RFQ	Datasheet	Bulk	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Stud Mount	-	-	1.5 mA @ 35 V	35 V	30A	-55°C ~ 175°C	680 mV @ 30 A
MUR5015 D0-5 STUD ULTRAFAST RECTIFIER 50 Solid State Inc.	3,377	7.00	RFQ		Bulk	RoHS	-	-	Active	-	-	-	-	-	-	-	-
1N5824 5 AMP SCHOTTKY METAL Solid State Inc.	2,317	7.33	RFQ	Datasheet	Bulk	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	-	-	10 mA @ 30 V	30 V	15A	-65°C ~ 125°C	370 mV @ 5 A
1N5825 5 AMP SCHOTTKY METAL Solid State Inc.	3,702	7.33	RFQ	Datasheet	Bulk	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	-	-	10 mA @ 40 V	40 V	15A	-65°C ~ 125°C	380 mV @ 5 A
1N5823 5 AMP SCHOTTKY METAL Solid State Inc.	2,785	7.33	RFQ	Datasheet	Bulk	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	-	-	10 mA @ 20 V	20 V	15A	-65°C ~ 125°C	360 mV @ 5 A
1N4724 3 AMP RECTIFIER METAL Solid State Inc.	3,764	7.93	RFQ	Datasheet	Bulk	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	-	500 µA @ 800 V	800 V	3A	-65°C ~ 175°C	1 V @ 9.4 A
1N4723 3 AMP RECTIFIER METAL Solid State Inc.	3,001	7.93	RFQ	Datasheet	Bulk	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	-	500 µA @ 600 V	600 V	3A	-65°C ~ 175°C	1 V @ 9.4 A
1N4725 3 AMP RECTIFIER METAL Solid State Inc.	2,981	7.93	RFQ	Datasheet	Bulk	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	-	500 µA @ 1000 V	1000 V	3A	-65°C ~ 175°C	1 V @ 9.4 A
MR500 STANDARD RECOVERY 3 AMP RECTIFIE Solid State Inc.	2,747	0.00	RFQ	Datasheet	Bulk	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	-	-	5 µA @ 50 V	50 V	3A	-65°C ~ 175°C	1.1 V @ 9.4 A
1N5551 RECT 3AMP 400V G4 Solid State Inc.	4,900	1.07	RFQ	Datasheet	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	120pF @ 12V, 1MHz	2 µs	1 µA @ 400 V	400 V	3A	-65°C ~ 200°C	1 V @ 3 A
1N5553 RECT 3AMP 800V G4 Solid State Inc.	4,870	1.07	RFQ	Datasheet	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	90pF @ 12V, 1MHz	4 µs	1 µA @ 800 V	800 V	3A	-65°C ~ 200°C	1.1 V @ 3 A

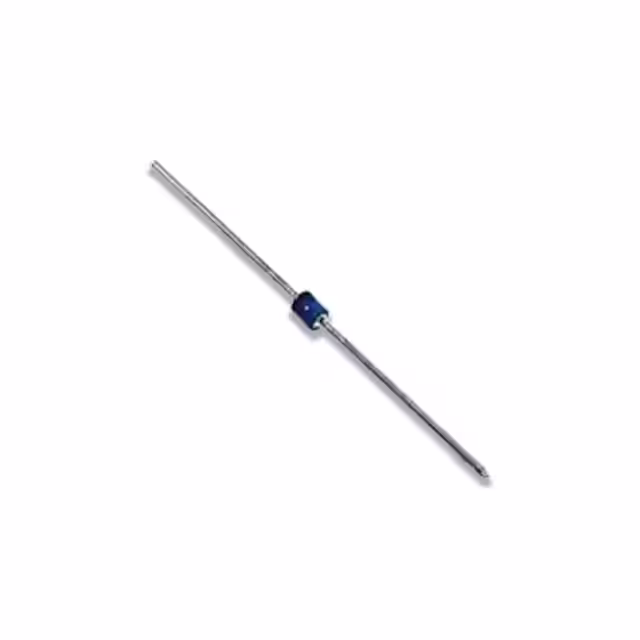

1N5554 RECT 3AMP 1K V G4 Solid State Inc.	4,820	1.07	RFQ	Datasheet	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Through Hole	85pF @ 12V, 1MHz	4 µs	1 µA @ 1000 V	1000 V	3A	-65°C ~ 200°C	1.1 V @ 3 A
