| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R30740RECTIFIER |
3,368 | 35.52 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
JANS1N5802US/TRRECTIFIER UFR,FRR |
2,218 | 35.63 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 10V, 1MHz | 25 ns | - | 50 V | 1A | -65°C ~ 175°C | 975 mV @ 2.5 A |
|
|
JANS1N5804US/TRRECTIFIER UFR,FRR |
3,567 | 35.63 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 10V, 1MHz | 25 ns | 1 µA @ 150 V | 100 V | 1A | -65°C ~ 175°C | 975 mV @ 2.5 A |
|
JANTX1N4454UR-1/TRSIGNAL/COMPUTER DIODE |
3,812 | 2.67 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/144 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | 4 ns | 100 nA @ 50 V | 50 V | 200mA (DC) | -55°C ~ 175°C | 1 V @ 10 mA | |
|
JANS1N5617/TRRECTIFIER UFR,FRR |
3,230 | 56.21 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | - | 400 V | 1A | -65°C ~ 200°C | 1.6 V @ 3 A | |
|
|
JANTX1N1186RSILICON RECTIFIER |
3,547 | 56.34 |
RFQ |
Datasheet |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|

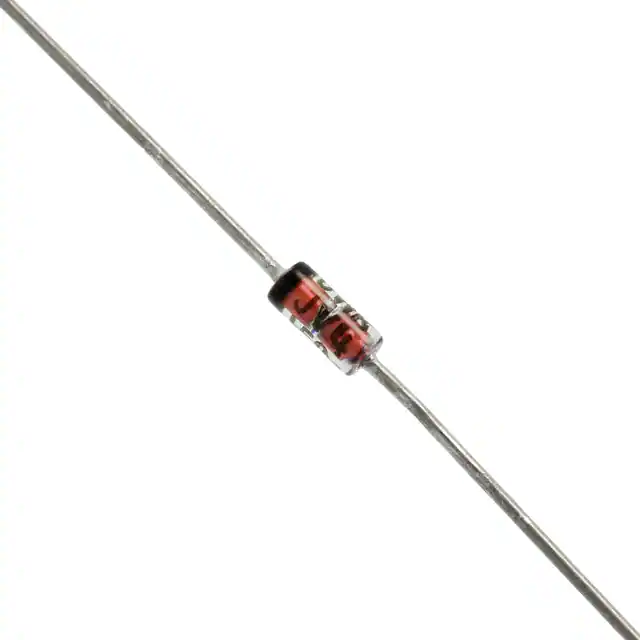

JANTXV1N4150-1DIODE GEN PURP 50V 200MA DO35 |
2,402 | 2.70 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/231 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 4 ns | 100 nA @ 50 V | 50 V | 200mA | -65°C ~ 175°C | 1 V @ 200 mA |
|
1N3595-1E3DIODE ZENER 125 V DO-35 |
3,483 | 2.70 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 3 µs | 1 nA @ 125 V | 125 V | 150mA | -65°C ~ 175°C | 1 V @ 200 mA | |
|
1N3595-1/TRSIGNAL/COMPUTER DIODE |
2,560 | 2.70 |
RFQ |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 3 µs | 1 nA @ 125 V | 125 V | 150mA (DC) | -65°C ~ 175°C | 1 V @ 200 mA | ||
|
CDLL1A50/TRDIODE SMALL-SIGNAL SCHOTTKY |
3,274 | 6.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 0.9pF @ 5V, 1MHz | - | 100 µA @ 50 V | 50 V | 1A | - | 600 mV @ 1 A | |
|
|
JANTX1N5622DIODE GEN PURP 1KV 1A AXIAL |
3,661 | 6.15 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/427 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 500 nA @ 1000 V | 1000 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A |
|
|
1N5812RRECTIFIER DIODE |
3,701 | 56.85 |
RFQ |
Datasheet |
Bulk | MILITARY, MIL-PRF-19500/478 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | 300pF @ 10V, 1MHz | 35 ns | 10 µA @ 50 V | 50 V | 20A | -65°C ~ 175°C | 950 mV @ 20 A |
|
|
JAN1N4944/TRRECTIFIER UFR,FRR |
3,521 | 6.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/360 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 1 µA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.3 V @ 1 A |
|
|
1N5814RRECTIFIER DIODE |
2,500 | 56.85 |
RFQ |
Datasheet |
Bulk | MILITARY, MIL-PRF-19500/478 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | 300pF @ 10V, 1MHz | 35 ns | 10 µA @ 100 V | 100 V | 20A | -65°C ~ 175°C | 950 mV @ 20 A |
|
|
JAN1N3957/TRSTD RECTIFIER |
3,940 | 6.15 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/228 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 100 µA @ 300 V | 1000 V | 1A | -65°C ~ 175°C | 1.1 V @ 1 A | |
|
|
1N5816RRECTIFIER DIODE |
2,199 | 56.85 |
RFQ |
Datasheet |
Bulk | MILITARY, MIL-PRF-19500/478 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Stud Mount | 300pF @ 10V, 1MHz | 35 ns | 10 µA @ 150 V | 150 V | 20A | -65°C ~ 175°C | 950 mV @ 20 A |
|
|
JANTX1N5551DIODE GEN PURP 400V 5A AXIAL |
3,177 | 6.17 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/420 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 1 µA @ 400 V | 400 V | 5A | -65°C ~ 175°C | 1.2 V @ 9 A |
|
|
JANTX1N5418/TRRECTIFIER UFR,FRR |
2,899 | 6.17 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 1 µA @ 400 V | 400 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
|
|
JANTX1N5711UBSCHOTTKY DIODE |
2,638 | 56.94 |
RFQ |
Bulk | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | 200 nA @ 50 V | 50 V | - | -65°C ~ 150°C | 1 V @ 15 mA | |
|
|
JANTX1N5712UBSCHOTTKY DIODE |
2,548 | 56.94 |
RFQ |
Bulk | Military, MIL-PRF-19500/444 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | - | - | - | - | 150°C (Max) | 1 V @ 35 mA |
