| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

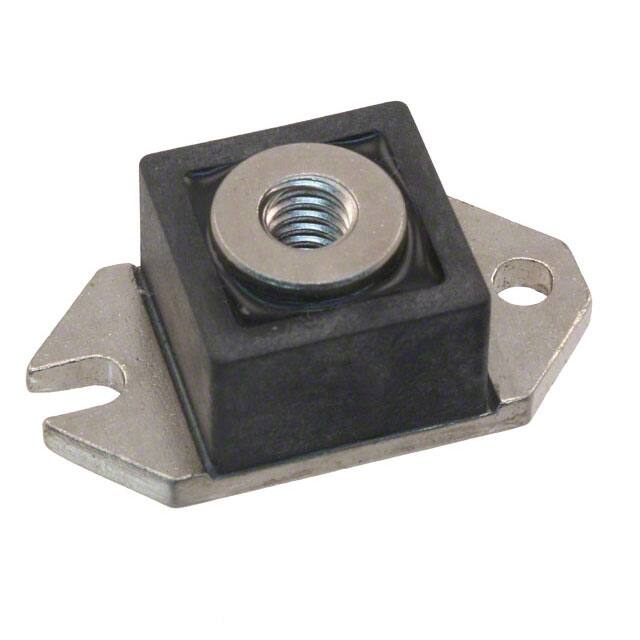

HS18135DIODE SCHOTTKY 35V 180A HALFPAK |
3,401 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 7500pF @ 5V, 1MHz | - | 4 mA @ 35 V | 35 V | 180A | - | 700 mV @ 180 A | |
|
HS183100DIODE SCHOTTKY 100V 180A HALFPAK |
3,984 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 4800pF @ 5V, 1MHz | - | 5 mA @ 100 V | 100 V | 180A | - | 910 mV @ 180 A | |
|
|
HS183100RDIODE SCHOTTKY 100V 180A HALFPAK |
3,093 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Obsolete | Chassis Mount | 4800pF @ 5V, 1MHz | - | 5 mA @ 100 V | 100 V | 180A | - | 910 mV @ 180 A | |
|
|
HS247200RDIODE SCHOTTKY 200V 240A HALFPAK |
3,472 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Obsolete | Chassis Mount | 6000pF @ 5V, 1MHz | - | 8 mA @ 200 V | 200 V | 240A | - | 860 mV @ 240 A | |
|
|
HS12045RDIODE SCHOTTKY 45V 120A HALFPAK |
3,774 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Obsolete | Chassis Mount | 5500pF @ 5V, 1MHz | - | 5 mA @ 45 V | 45 V | 120A | - | 550 mV @ 120 A | |
|
|
HS123100RDIODE SCHOTTKY 100V 120A HALFPAK |
2,460 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Obsolete | Chassis Mount | 3000pF @ 5V, 1MHz | - | 3 mA @ 100 V | 100 V | 120A | - | 910 mV @ 120 A | |
|
|
HS18135RDIODE SCHOTTKY 35V 180A HALFPAK |
2,777 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Obsolete | Chassis Mount | 7500pF @ 5V, 1MHz | - | 4 mA @ 35 V | 35 V | 180A | - | 700 mV @ 180 A | |
|
|
HS18140RDIODE SCHOTTKY 40V 180A HALFPAK |
2,617 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Obsolete | Chassis Mount | 7500pF @ 5V, 1MHz | - | 4 mA @ 40 V | 40 V | 180A | - | 700 mV @ 180 A | |
|
|
HS18145RDIODE SCHOTTKY 45V 180A HALFPAK |
2,741 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Obsolete | Chassis Mount | 7500pF @ 5V, 1MHz | - | 4 mA @ 45 V | 45 V | 180A | - | 700 mV @ 180 A | |
|
|
HS18230RDIODE SCHOTTKY 30V 180A HALFPAK |
2,517 | 0.00 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Obsolete | Chassis Mount | 7000pF @ 5V, 1MHz | - | 10 mA @ 30 V | 30 V | 180A | - | 550 mV @ 180 A | ||
|

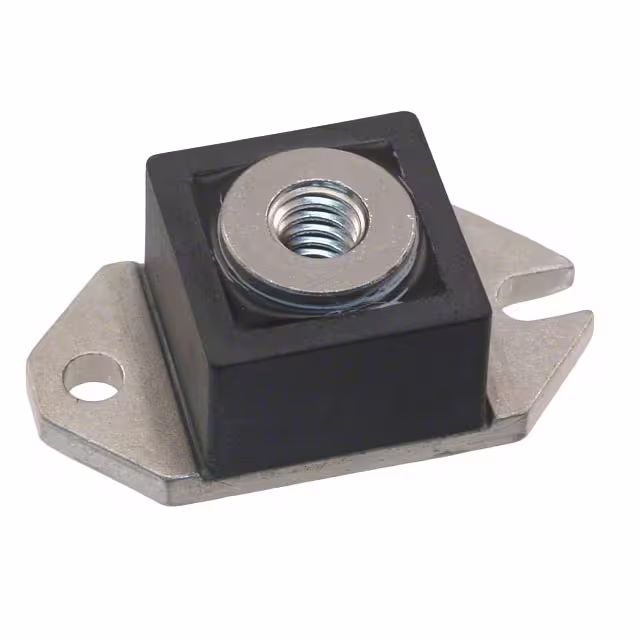

HS24040RDIODE SCHOTTKY 40V 240A HALFPAK |
3,164 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Obsolete | Chassis Mount | 10500pF @ 5V, 1MHz | - | 12 mA @ 40 V | 40 V | 240A | - | 550 mV @ 240 A | |
|
|
HS24045RDIODE SCHOTTKY 45V 240A HALFPAK |
3,462 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Obsolete | Chassis Mount | 10500pF @ 5V, 1MHz | - | 12 mA @ 45 V | 45 V | 240A | - | 550 mV @ 240 A | |
|
|
HS24230RDIODE SCHOTTKY 30V 240A HALFPAK |
3,300 | 0.00 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Obsolete | Chassis Mount | 10500pF @ 5V, 1MHz | - | 12 mA @ 30 V | 30 V | 240A | - | 550 mV @ 240 A | ||
|
|
HS246150RDIODE SCHOTTKY 150V 240A HALFPAK |
3,534 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Obsolete | Chassis Mount | 6000pF @ 5V, 1MHz | - | 8 mA @ 150 V | 150 V | 240A | - | 860 mV @ 240 A | |
|
|
HS247180RDIODE SCHOTTKY 180V 240A HALFPAK |
3,449 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Obsolete | Chassis Mount | 6000pF @ 5V, 1MHz | - | 8 mA @ 180 V | 180 V | 240A | - | 860 mV @ 240 A | |
|
|
HU10260RDIODE GEN PURP 600V 100A HALFPAK |
3,728 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Obsolete | Chassis Mount | 275pF @ 10V, 1Mhz | 90 ns | 50 µA @ 600 V | 600 V | 100A | - | 1.35 V @ 100 A | |
|
|
HU20260RDIODE GEN PURP 600V 200A HALFPAK |
3,786 | 0.00 |
RFQ |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Obsolete | Chassis Mount | - | 130 ns | 50 µA @ 600 V | 600 V | 200A | - | 1.35 V @ 200 A | ||
|
|
SDM30004RDIODE GEN PURP 400V 300A DIE |
2,379 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Obsolete | Chassis Mount | - | - | 75 µA @ 400 V | 400 V | 300A | - | 1.1 V @ 300 A | |
|

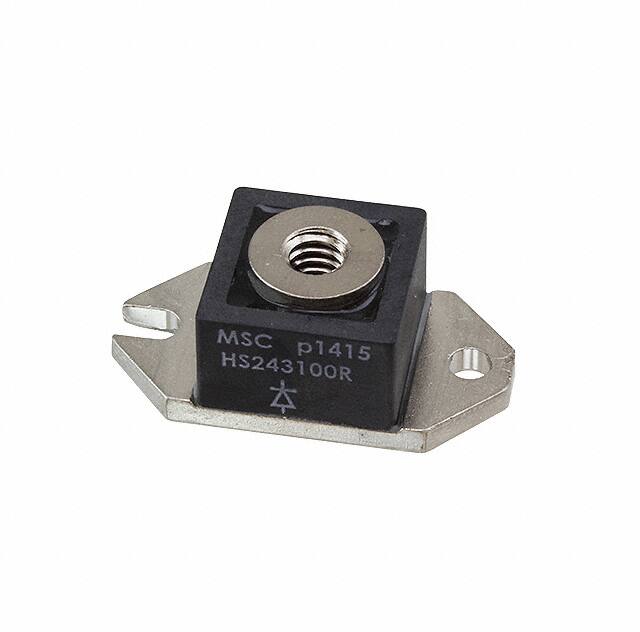

HS243100RDIODE SCHOTTKY 100V 240A HALFPAK |
3,136 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky, Reverse Polarity | Obsolete | Chassis Mount | 6400pF @ 5V, 1MHz | - | 8 mA @ 100 V | 100 V | 240A | - | 860 mV @ 240 A | |
|
|
JANTXV1N6629USDIODE GEN PURP 800V 1.4A D5B |
2,164 | 0.00 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 10V, 1MHz | 60 ns | 2 µA @ 800 V | 800 V | 1.4A | -65°C ~ 150°C | 1.4 V @ 1.4 A |
