Diodes-Rectifiers-Single(50136)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
150KSR5DIODE GEN PURP 50V 150A B42 |
3,599 | 0.00 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Chassis, Stud Mount | - | - | 35 mA @ 50 V | 50 V | 150A | -40°C ~ 200°C | 1.33 V @ 471 A | ||
|
SCFS10000DIODE GEN PURP 10KV 1.5A AXIAL |
3,536 | 380.36 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 5 µA @ 10000 V | 10000 V | 1.5A | -55°C ~ 150°C | 19.8 V @ 3 A | |
|

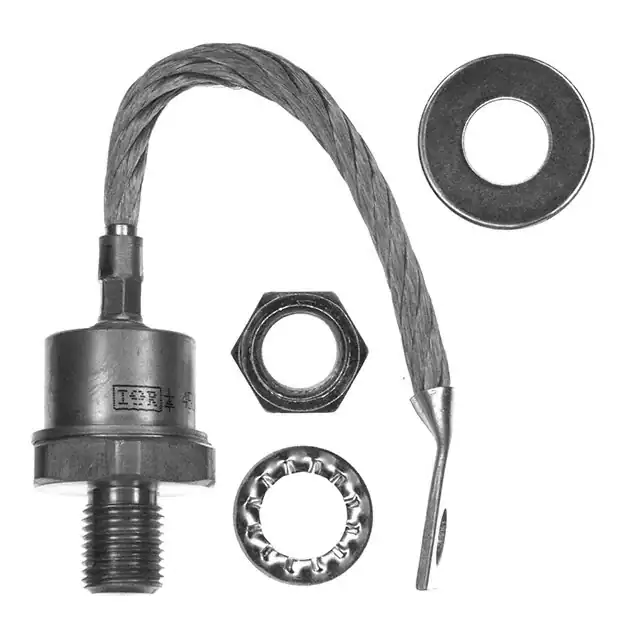

150LR5ADIODE GEN PURP 50V 150A DO205AC |
2,883 | 0.00 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Stud Mount | - | - | 35 mA @ 50 V | 50 V | 150A | -40°C ~ 200°C | 1.33 V @ 471 A | ||
|
W6672TJ350DIODE GEN PURP 1.9KV 6672A - |
3,806 | 380.55 |
RFQ |
Datasheet |
Box | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 52 µs | 100 mA @ 1900 V | 1900 V | 6672A | -40°C ~ 160°C | 1.37 V @ 5000 A | |
|
15TQ060DIODE SCHOTTKY 60V 15A TO220AC |
2,382 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 800 µA @ 60 V | 60 V | 15A | -55°C ~ 150°C | 620 mV @ 15 A | ||
|
|
RAS00412XXWELDING DIODE, PACKAGED |
2,493 | 381.38 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 25 µs | 100 mA @ 400 V | 400 V | 12000A | -40°C ~ 175°C | - | |
|
15TQ060SDIODE SCHOTTKY 60V 15A D2PAK |
3,320 | 0.00 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 800 µA @ 60 V | 60 V | 15A | -55°C ~ 150°C | 620 mV @ 15 A | |
|
|
RA203020XXDIODE GP 3KV 2000A POWRDISC |
3,119 | 382.71 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 25 µs | 200 mA @ 3000 V | 3000 V | 2000A | - | 1.45 V @ 3000 A | |
|
|
15TQ060STRLDIODE SCHOTTKY 60V 15A D2PAK |
3,637 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 800 µA @ 60 V | 60 V | 15A | -55°C ~ 150°C | 620 mV @ 15 A | |
|
|
JTXM19500/469-02RECTIFIER |
2,827 | 386.15 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
15TQ060STRRDIODE SCHOTTKY 60V 15A D2PAK |
3,223 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 800 µA @ 60 V | 60 V | 15A | -55°C ~ 150°C | 620 mV @ 15 A | |
|
|
W5984TJ400RECTIFIER DIODE |
3,633 | 387.90 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 47 µs | 100 mA @ 4000 V | 4000 V | 5984A | -40°C ~ 160°C | 1.25 V @ 5000 A | ||
|
|
18TQ035STRLDIODE SCHOTTKY 35V 18A D2PAK |
2,498 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 2.5 mA @ 35 V | 35 V | 18A | -55°C ~ 175°C | 600 mV @ 18 A | |
|
|
RA203025XXDIODE GP 3KV 2500A POWRDISC |
3,590 | 388.70 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 25 µs | 200 mA @ 3000 V | 3000 V | 2500A | - | 1.25 V @ 3000 A | |
|
|
18TQ045STRLDIODE SCHOTTKY 45V 18A D2PAK |
2,455 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 2.5 mA @ 45 V | 45 V | 18A | -55°C ~ 175°C | 600 mV @ 18 A | |
|
|
W5984TE360RECTIFIER DIODE |
3,504 | 389.25 |
RFQ |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 47 µs | 100 mA @ 3600 V | 3600 V | 5984A | -40°C ~ 160°C | 1.25 V @ 5000 A | ||
|
|
18TQ045STRRDIODE SCHOTTKY 45V 18A D2PAK |
2,156 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 2.5 mA @ 45 V | 45 V | 18A | -55°C ~ 175°C | 600 mV @ 18 A | |
|
|
SCHJ45KDIODE GEN PURP 45KV 50MA AXIAL |
2,268 | 391.86 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2.5 µs | 1 µA @ 45000 V | 45000 V | 50mA | -55°C ~ 150°C | 60 V @ 100 mA | |
|
|
19TQ015STRRDIODE SCHOTTKY 15V 19A D2PAK |
2,873 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 1.5 mA @ 15 V | 15 V | 19A | -55°C ~ 125°C | 360 mV @ 19 A | |
|
|
RA203220XXDIODE GP 3.2KV 2000A POWRDISC |
3,559 | 392.67 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 25 µs | 200 mA @ 3200 V | 3200 V | 2000A | - | 1.45 V @ 3000 A |
