Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
RB055LAM-30TR DIODE SCHOTTKY 30V 3A PMDTM Rohm Semiconductor	1,080	0.45	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	50 µA @ 30 V	30 V	3A	150°C (Max)	550 mV @ 3 A
RB162LAM-60TFTR AUTOMOTIVE SCHOTTKY BARRIER DIOD Rohm Semiconductor	2,520	0.43	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	100 µA @ 60 V	60 V	1A	150°C (Max)	-

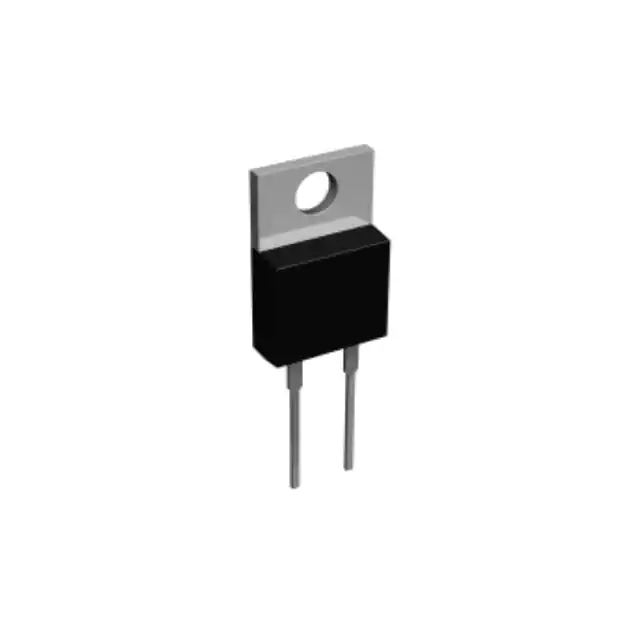

SCS310AHGC9 SHORTER RECOVERY TIME, ENABLING Rohm Semiconductor	447	5.83	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	500pF @ 1V, 1MHz	0 ns	50 µA @ 650 V	650 V	10A (DC)	175°C (Max)	1.5 V @ 10 A
SCS320AMC DIODES SILICON CARBIDE Rohm Semiconductor	3,786	8.59	RFQ	Datasheet	Tube		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Through Hole	1000pF @ 1V, 1MHz	0 ns	100 µA @ 650 V	650 V	20A (DC)	175°C (Max)	1.5 V @ 20 A
RBS5LAM40ATR RBS5LAM40A IS SUPER LOW VF< Rohm Semiconductor	1,921	0.43	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	800 µA @ 20 V	20 V	5A	125°C	490 mV @ 5 A
RFC02MM2STR RFC02MM2S IS SUPER FAST RECOVERY Rohm Semiconductor	1,835	0.43	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Small Signal =< 200mA (Io), Any Speed	Standard	Active	Surface Mount	-	35 ns	1 µA @ 200 V	200 V	200mA	150°C	750 mV @ 100 mA
RB521CS-30T2R DIODE SCHOTTKY 30V 100MA VMN2 Rohm Semiconductor	8,970	0.44	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Small Signal =< 200mA (Io), Any Speed	Schottky	Active	Surface Mount	-	-	10 µA @ 10 V	30 V	100mA	150°C (Max)	350 mV @ 10 mA
SCS220AGHRC DIODE SCHOTTKY 650V 20A TO-220-2 Rohm Semiconductor	2,311	10.16	RFQ	Datasheet	Tube	Automotive, AEC-Q101	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Obsolete	Through Hole	730pF @ 1V, 1MHz	0 ns	400 µA @ 600 V	650 V	20A (DC)	175°C (Max)	1.55 V @ 20 A
RFN20TF6SFHC9 ROHM'S FAST RECOVERY DIODES ARE Rohm Semiconductor	743	1.88	RFQ	Datasheet	Tube	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	60 ns	10 µA @ 600 V	600 V	20A	150°C (Max)	1.55 V @ 20 A
1SS400CST2RA DIODE GEN PURP 80V 100MA VMN2 Rohm Semiconductor	3,920	0.44	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Small Signal =< 200mA (Io), Any Speed	Standard	Active	Surface Mount	3pF @ 0.5V, 1MHz	4 ns	100 nA @ 80 V	80 V	100mA	150°C (Max)	1.2 V @ 100 mA

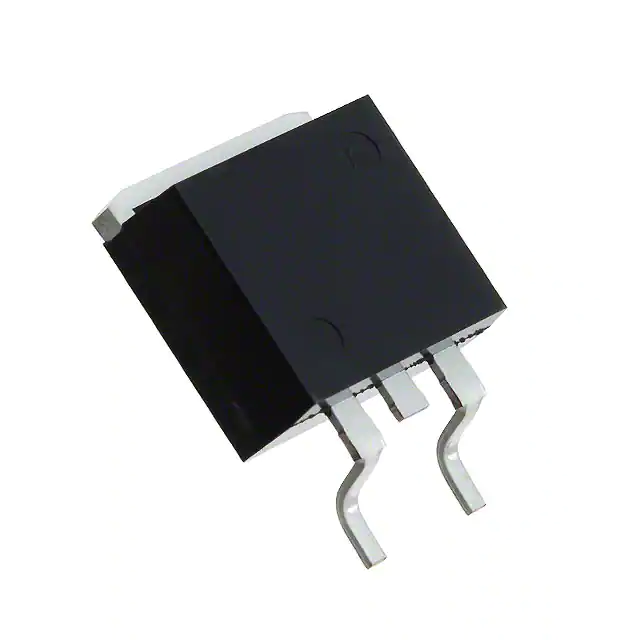

SCS208AJTLL DIODE SCHOTTKY 650V 8A TO263AB Rohm Semiconductor	299	4.08	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Active	Surface Mount	291pF @ 1V, 1MHz	0 ns	160 µA @ 600 V	650 V	8A (DC)	175°C (Max)	1.55 V @ 8 A
RB075BM40STL DIODE SCHOTTKY 40V 5A TO252 Rohm Semiconductor	966	1.31	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	5 µA @ 40 V	40 V	5A	150°C (Max)	750 mV @ 5 A
RFV8BM6SFHTL RFV8BM6SFH IS THE HIGH RELIABILI Rohm Semiconductor	2,193	1.32	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	45 ns	10 µA @ 600 V	600 V	8A	150°C (Max)	2.8 V @ 8 A
RF201L4SDDTE25 FAST RECOVERY DIODE (AEC-Q101 QU Rohm Semiconductor	820	0.71	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	30 ns	1 µA @ 400 V	400 V	1.5A	150°C	1.2 V @ 1.5 A
RFUH5TF6SFHC9 RFUH5TF6SFH IS THE HIGH RELIABIL Rohm Semiconductor	819	1.37	RFQ	Datasheet	Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	25 ns	10 µA @ 600 V	600 V	5A	150°C (Max)	2.8 V @ 5 A
RF505BM6SFHTL SUPER FAST RECOVERY DIODES Rohm Semiconductor	1,667	1.34	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	30 ns	10 µA @ 600 V	600 V	5A	150°C (Max)	1.7 V @ 5 A
RFNL10TJ6SGC9 DIODE GP 600V 10A TO220ACFP Rohm Semiconductor	266	1.41	RFQ	Datasheet	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	150 ns	10 µA @ 600 V	600 V	10A	150°C (Max)	1.3 V @ 10 A
RFN5TF8SC9 ROHM'S FAST RECOVERY DIODES ARE Rohm Semiconductor	660	1.45	RFQ	Datasheet	Tube		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	40 ns	10 µA @ 800 V	800 V	5A	150°C (Max)	2.1 V @ 5 A
SCS206AJHRTLL DIODE SCHOTTKY 650V 6A TO263AB Rohm Semiconductor	971	4.78	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	No Recovery Time > 500mA (Io)	Silicon Carbide Schottky	Not For New Designs	Surface Mount	219pF @ 1V, 1MHz	0 ns	120 µA @ 600 V	650 V	6A (DC)	175°C (Max)	1.55 V @ 6 A
RFUH10TF6SFHC9 ROHM'S FAST RECOVERY DIODES ARE Rohm Semiconductor	844	1.56	RFQ	Datasheet	Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	25 ns	10 µA @ 600 V	600 V	10A	150°C (Max)	2.8 V @ 10 A
