| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD103A-TPDIODE SCHOTTKY 40V 15A DO35 |
3,765 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | 10 ns | 5 µA @ 30 V | 40 V | 15A (DC) | 125°C (Max) | 600 mV @ 200 mA | |
|
|
SD103B-TPDIODE SCHOTTKY 30V 15A DO35 |
2,144 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | 10 ns | 5 µA @ 20 V | 30 V | 15A (DC) | 125°C (Max) | 600 mV @ 200 mA | ||
|
UF4004-TPDIODE GEN PURP 400V 1A DO41 |
2,736 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 17pF @ 4V, 1MHz | 50 ns | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 125°C | 1.3 V @ 1 A | |
|
|
UF4007-TPDIODE GEN PURP 1KV 1A DO41 |
3,519 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 10pF @ 4V, 1MHz | 75 ns | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 125°C | 1.7 V @ 1 A | |
|
RL201-TPDIODE GEN PURP 50V 2A DO15 |
3,545 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | - | 5 µA @ 50 V | 50 V | 2A | -55°C ~ 150°C | 1 V @ 2 A | |
|
|
RL202-TPDIODE GEN PURP 100V 2A DO15 |
3,569 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | - | 5 µA @ 100 V | 100 V | 2A | -55°C ~ 150°C | 1 V @ 2 A | |
|
|
RL203-TPDIODE GEN PURP 200V 2A DO15 |
3,761 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 20pF @ 4V, 1MHz | - | 5 µA @ 200 V | 200 V | 2A | -55°C ~ 150°C | 1 V @ 2 A | |
|
|
RL204-TPDIODE GEN PURP 400V 2A DO15 |
2,323 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 20pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 2A | -55°C ~ 150°C | 1 V @ 2 A | |
|
|
RL205-TPDIODE GEN PURP 600V 2A DO15 |
2,209 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 20pF @ 4V, 1MHz | - | 5 µA @ 600 V | 600 V | 2A | -55°C ~ 150°C | 1 V @ 2 A | |
|
|
RL206-TPDIODE GEN PURP 800V 2A DO15 |
2,210 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | - | 5 µA @ 800 V | 800 V | 2A | -55°C ~ 150°C | 1 V @ 2 A | |
|
|
RL207-TPDIODE GEN PURP 1KV 2A DO15 |
3,440 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 20pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 2A | -55°C ~ 150°C | 1 V @ 2 A | |
|

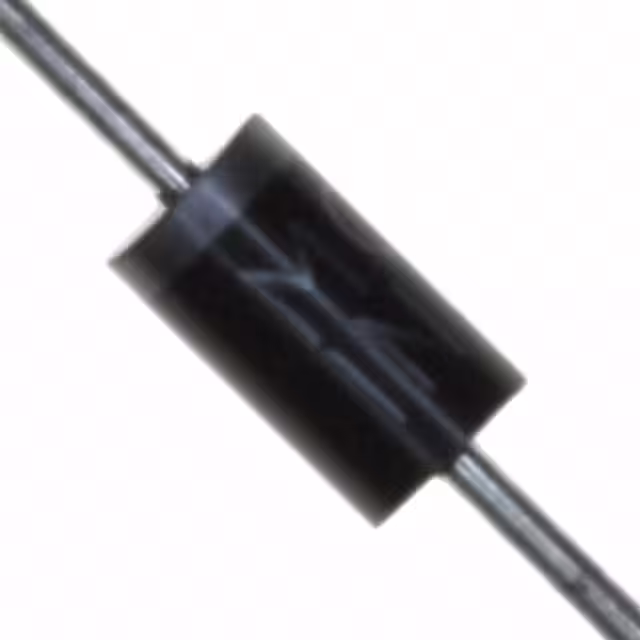

1N5400-TPDIODE GEN PURP 50V 3A DO201AD |
2,036 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | - | 5 µA @ 50 V | 50 V | 3A | -55°C ~ 150°C | 1 V @ 3 A | |
|
1N5401-TPDIODE GEN PURP 100V 3A DO201AD |
3,229 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 40pF @ 4V, 1MHz | - | 5 µA @ 100 V | 100 V | 3A | -55°C ~ 150°C | 1 V @ 3 A | |
|
|
1N5402-TPDIODE GEN PURP 200V 3A DO201AD |
3,392 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 40pF @ 4V, 1MHz | - | 5 µA @ 200 V | 200 V | 3A | -55°C ~ 150°C | 1 V @ 3 A | |
|
|
1N5404-TPDIODE GEN PURP 400V 3A DO201AD |
2,329 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 40pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 3A | -55°C ~ 150°C | 1 V @ 3 A | |
|
|
1N5406-TPDIODE GEN PURP 600V 3A DO201AD |
2,720 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 40pF @ 4V, 1MHz | - | 5 µA @ 600 V | 600 V | 3A | -55°C ~ 150°C | 1 V @ 3 A | |
|
|
1N5407-TPDIODE GEN PURP 800V 3A DO201AD |
2,062 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 40pF @ 4V, 1MHz | - | 5 µA @ 800 V | 800 V | 3A | -55°C ~ 150°C | 1 V @ 3 A | |
|
|
1N5408-TPDIODE GEN PURP 1KV 3A DO201AD |
3,470 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | 40pF @ 4V, 1MHz | - | 5 µA @ 1000 V | 1000 V | 3A | -55°C ~ 150°C | 1 V @ 3 A | |
|
|
1N914-TPDIODE GEN PURP 100V 200MA DO35 |
2,877 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | - | 4 ns | 5 µA @ 75 V | 100 V | 200mA | -55°C ~ 150°C | 1 V @ 10 mA | |
|
|
1N914B-TPDIODE GEN PURP 100V 200MA DO35 |
2,453 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | - | 4 ns | 5 µA @ 75 V | 100 V | 200mA | -55°C ~ 150°C | 1 V @ 100 mA |
