| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

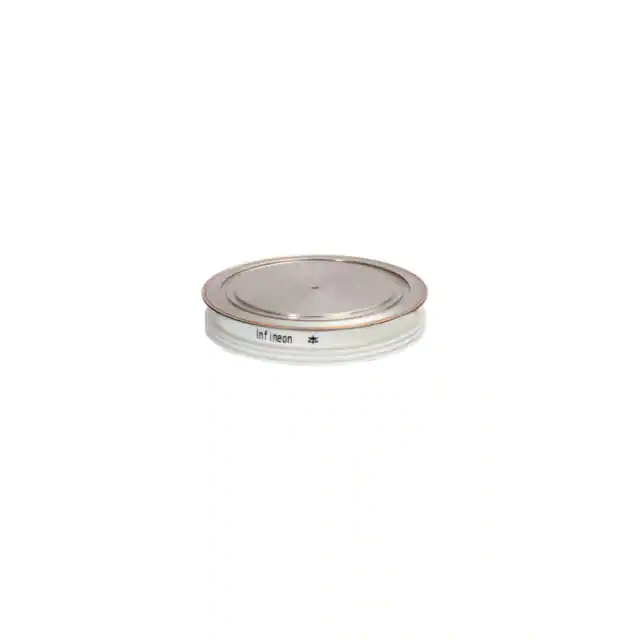

D1031SH45TXPSA1DIODE GEN PURP 4.5KV 1450A |
2,622 | 1384.46 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 100 mA @ 4500 V | 4500 V | 1450A | 0°C ~ 140°C | 4.2 V @ 2500 A | |
|

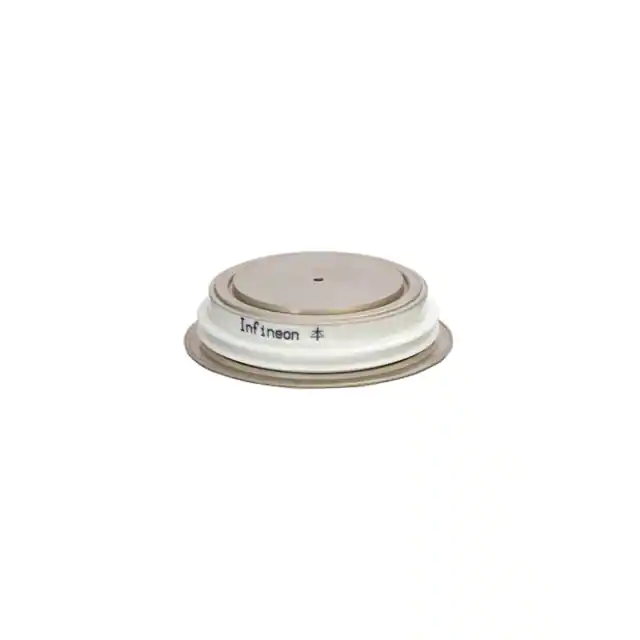

D291S45TXPSA1DIODE GEN PURP 4.5KV 445A |
2,949 | 1401.52 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 50 mA @ 4500 V | 4500 V | 445A | -40°C ~ 125°C | 4.15 V @ 1200 A | |
|
DZ435N40KS01HPSA1THYR / DIODE MODULE DK |
3,666 | 488.14 |
RFQ |
Datasheet |
Tray | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 50 mA @ 4000 V | 4000 V | 700A | 150°C (Max) | - | |
|
|

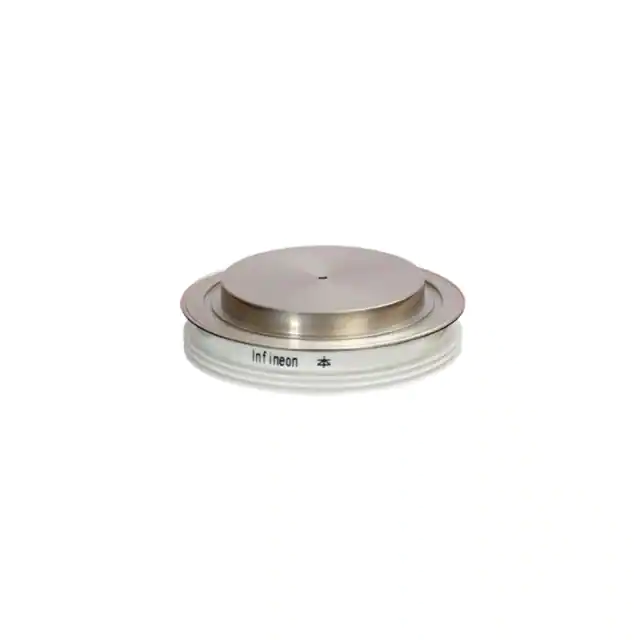

D2450N04TXPSA1DIODE GEN PURP 400V 2450A |
2,127 | 184.46 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 50 mA @ 400 V | 400 V | 2450A | -40°C ~ 180°C | 880 mV @ 2000 A | |
|
D4201N20TXPSA1DIODE GEN PURP 2KV 6010A |
2,488 | 1648.58 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 200 mA @ 2000 V | 2000 V | 6010A | -40°C ~ 160°C | 1 V @ 4000 A | |
|
|
D4201N22TXPSA1DIODE GEN PURP 2.2KV 6010A |
3,882 | 1735.37 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 200 mA @ 2200 V | 2200 V | 6010A | -40°C ~ 160°C | 1 V @ 4000 A | |
|
D1131SH65TXPSA1DIODE GEN PURP 6.5KV 1100A |
2,740 | 1804.46 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 150 mA @ 6500 V | 6500 V | 1100A | 0°C ~ 140°C | 5.6 V @ 2500 A | |
|
D1800N40TVFXPSA1DIODE GEN PURP 4KV 1800A |
2,901 | 496.51 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 100 mA @ 4000 V | 4000 V | 1800A | -40°C ~ 160°C | 1.32 V @ 1500 A | |
|
|
D3501N40TXPSA1DIODE GEN PURP 4KV 4870A |
2,762 | 1909.68 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 100 mA @ 4000 V | 4000 V | 4870A | -40°C ~ 160°C | 1.27 V @ 4000 A | |
|
|
D3041N60TXPSA1DIODE GEN PURP 6KV 4090A |
2,902 | 1927.10 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 100 mA @ 6000 V | 6000 V | 4090A | -40°C ~ 160°C | 1.7 V @ 4000 A | |
|
|
D3041N65TXPSA1DIODE GEN PURP 6.5KV 4090A |
3,019 | 1927.10 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 100 mA @ 6500 V | 6500 V | 4090A | -40°C ~ 160°C | 1.7 V @ 4000 A | |
|
|
D3501N42TXPSA1DIODE GEN PURP 4.2KV 4870A |
3,208 | 1948.12 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 100 mA @ 4200 V | 4200 V | 4870A | -40°C ~ 160°C | 1.27 V @ 4000 A | |
|
|
D1331SH45TXPSA1DIODE GEN PURP 4.5KV 1710A |
3,943 | 2014.68 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 150 mA @ 4500 V | 4500 V | 1710A | 0°C ~ 140°C | 4.2 V @ 2500 A | |
|
|
D1301SH45TXPSA1DIODE GEN PURP 4.5KV 1740A |
2,390 | 2014.68 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 150 mA @ 4500 V | 4500 V | 1740A | 0°C ~ 140°C | 4.3 V @ 2500 A | |
|
D841S45TXPSA1RECTIFIER DIODE DISC |
2,539 | 2014.68 |
RFQ |
Bulk | RoHS | - | - | Not For New Designs | - | - | - | - | - | - | - | - | ||
|
|
D3041N68TXPSA1DIODE GEN PURP 6.8KV 4090A |
2,525 | 2024.26 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 100 mA @ 6800 V | 6800 V | 4090A | -40°C ~ 160°C | 1.7 V @ 4000 A | |
|
|
D2601NH90TXPSA1DIODE GEN PURP 9KV 1790A |
2,704 | 2100.65 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 150 mA @ 9000 V | 9000 V | 1790A | 0°C ~ 140°C | 5.5 V @ 4000 A | |
|
|
D921S45TXPSA1DIODE GEN PURP 4.5KV 1630A |
2,838 | 2102.28 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 100 mA @ 4500 V | 4500 V | 1630A | -40°C ~ 140°C | 2.6 V @ 2500 A | |
|
|
D3001N68TXPSA1DIODE GEN PURP 6.8KV 3910A |
2,670 | 2102.28 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 100 mA @ 6800 V | 6800 V | 3910A | -40°C ~ 160°C | 1.7 V @ 4000 A | |
|
|
D2601N85TXPSA1DIODE GEN PURP 8.5KV 3040A |
3,156 | 2102.28 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | - | 100 mA @ 8500 V | 8500 V | 3040A | -40°C ~ 160°C | - |
