Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If
PU2BFSH 25NS, 2A, 100V, ULTRA FAST RECOV Taiwan Semiconductor Corporation	28,000	0.57	RFQ		Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	32pF @ 4V, 1MHz	25 ns	2 µA @ 100 V	100 V	2A (DC)	-55°C ~ 175°C	930 mV @ 2 A

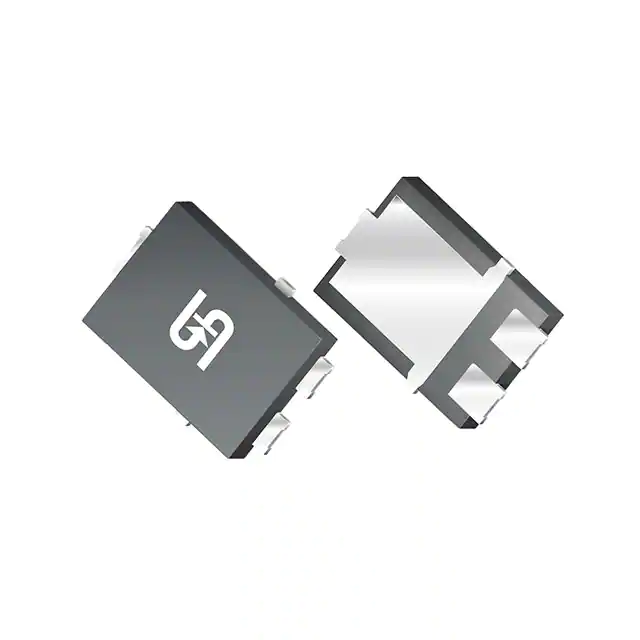

TSUP8M45SH M3G 8A, 45V, SCHOTTKY RECTIFIER Taiwan Semiconductor Corporation	5,995	1.29	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Automotive, AEC-Q101	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	932pF @ 4V, 1MHz	-	200 µA @ 45 V	45 V	8A (DC)	-55°C ~ 175°C	600 mV @ 8 A
TSP10U100S DIODE SCHOTTKY 100V 10A TO277A Taiwan Semiconductor Corporation	1,945	1.54	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	150 µA @ 100 V	100 V	10A	-55°C ~ 150°C	680 mV @ 10 A
HS1BFL 50NS 1A 100V HIGH EFFICIENT RECO Taiwan Semiconductor Corporation	8,911	0.45	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	11pF @ 4V, 1MHz	50 ns	5 µA @ 100 V	100 V	1A (DC)	-55°C ~ 150°C	950 mV @ 1 A
HS1FFL 50NS 1A 300V HIGH EFFICIENT RECO Taiwan Semiconductor Corporation	8,259	0.44	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	11pF @ 4V, 1MHz	50 ns	5 µA @ 300 V	300 V	1A (DC)	-55°C ~ 150°C	950 mV @ 1 A
HS1GFL 50NS 1A 400V HIGH EFFICIENT RECO Taiwan Semiconductor Corporation	11,820	0.44	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	11pF @ 4V, 1MHz	50 ns	5 µA @ 400 V	400 V	1A (DC)	-55°C ~ 150°C	1.3 V @ 1 A
SS24MHRSG DIODE SCHOTTKY 40V 2A MICRO SMA Taiwan Semiconductor Corporation	8,043	0.44	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	35pF @ 4V, 1MHz	-	150 µA @ 40 V	40 V	2A	-55°C ~ 150°C	600 mV @ 2 A
SS215L RVG DIODE SCHOTTKY 150V 2A SUB SMA Taiwan Semiconductor Corporation	4,440	0.46	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	-	-	100 µA @ 150 V	150 V	2A	-55°C ~ 150°C	850 mV @ 2 A
SS115LSHRVG DIODE SCHOTTKY 150V 1A SOD123HE Taiwan Semiconductor Corporation	5,220	0.47	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Surface Mount	80pF @ 4V, 1MHz	-	50 µA @ 150 V	150 V	1A	-55°C ~ 150°C	900 mV @ 1 A
FR104G A0G DIODE GEN PURP 400V 1A DO204AL Taiwan Semiconductor Corporation	4,878	0.47	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	10pF @ 4V, 1MHz	150 ns	5 µA @ 400 V	400 V	1A	-55°C ~ 150°C	1.3 V @ 1 A
PUUP4BH 25NS, 4A, 100V, ULTRA FAST RECOV Taiwan Semiconductor Corporation	6,000	0.93	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	71pF @ 4V, 1MHz	25 ns	2 µA @ 100 V	100 V	4A (DC)	-55°C ~ 175°C	930 mV @ 4 A
RS1JLS RVG DIODE GEN PURP 600V 1.2A SOD123 Taiwan Semiconductor Corporation	8,991	0.48	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	-	300 ns	5 µA @ 600 V	600 V	1.2A	-55°C ~ 150°C	1.3 V @ 1.2 A
PUUP4DH 25NS, 4A, 200V, ULTRA FAST RECOV Taiwan Semiconductor Corporation	6,000	0.93	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	71pF @ 4V, 1MHz	25 ns	2 µA @ 200 V	200 V	4A (DC)	-55°C ~ 175°C	930 mV @ 4 A
FR105G A0G DIODE GEN PURP 600V 1A DO204AL Taiwan Semiconductor Corporation	5,526	0.50	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	10pF @ 4V, 1MHz	250 ns	5 µA @ 600 V	600 V	1A	-55°C ~ 150°C	1.3 V @ 1 A
SR206 A0G DIODE SCHOTTKY 60V 2A DO204AC Taiwan Semiconductor Corporation	3,876	0.46	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Schottky	Active	Through Hole	-	-	500 µA @ 60 V	60 V	2A	-55°C ~ 150°C	700 mV @ 2 A
HS2KAL M3G 75NS, 2A, 800V, HIGH EFFICIENT R Taiwan Semiconductor Corporation	6,650	0.43	RFQ		Tape & Reel (TR),Cut Tape (CT)		RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Surface Mount	12pF @ 4V, 1MHz	75 ns	1 µA @ 800 V	800 V	2A	-55°C ~ 150°C	1.7 V @ 2 A
S2GA R3G DIODE GEN PURP 400V 1.5A DO214AC Taiwan Semiconductor Corporation	11,752	0.54	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Discontinued at Digi-Key	Surface Mount	30pF @ 4V, 1MHz	1.5 µs	5 µA @ 400 V	400 V	1.5A	-55°C ~ 150°C	1.1 V @ 1.5 A
S2MA R3G DIODE GEN PURP 1KV 1.5A DO214AC Taiwan Semiconductor Corporation	11,278	0.54	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Discontinued at Digi-Key	Surface Mount	30pF @ 4V, 1MHz	1.5 µs	5 µA @ 1000 V	1000 V	1.5A	-55°C ~ 150°C	1.1 V @ 1.5 A
S2JA R3G DIODE GEN PURP 600V 1.5A DO214AC Taiwan Semiconductor Corporation	3,580	0.49	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Discontinued at Digi-Key	Surface Mount	30pF @ 4V, 1MHz	1.5 µs	5 µA @ 600 V	600 V	1.5A	-55°C ~ 150°C	1.1 V @ 1.5 A
S2KA R3G DIODE GEN PURP 800V 1.5A DO214AC Taiwan Semiconductor Corporation	3,338	0.49	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)		RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Discontinued at Digi-Key	Surface Mount	30pF @ 4V, 1MHz	1.5 µs	5 µA @ 800 V	800 V	1.5A	-55°C ~ 150°C	1.1 V @ 1.5 A
