| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | EncoderType | OutputType | PulsesperRevolution | Voltage-Supply | ActuatorType | Detent | BuiltinSwitch | MountingType | Orientation | TerminationStyle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEDS-9100#F00ROTARY ENCODER OPTICAL 256PPR |
2,314 | 32.04 |
RFQ |
Datasheet |
Tube | HEDS | Active | Optical | Quadrature (Incremental) | 256 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins |
|
HEDS-9200#360ROTARY ENCODR OPTICAL 360 LPI |
2,936 | 33.10 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature (Incremental) | 360 LPI | 5V | Codestrip Not Included | No | No | Chassis Mount | Vertical | Terminal Pins |
|

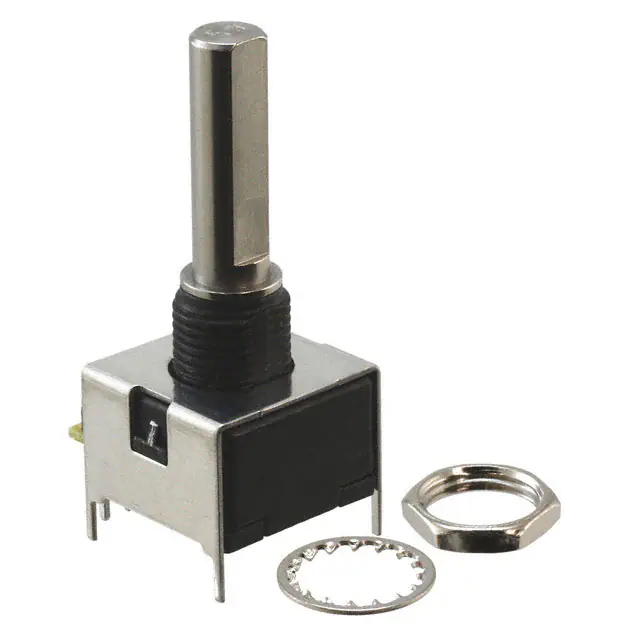

HRPG-AD32#56RROTARY ENCODER OPTICAL 32PPR |
3,738 | 40.27 |
RFQ |
Datasheet |
Bulk | HRPG | Active | Optical | Quadrature (Incremental) | 32 | 5V | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Vertical | PC Pin |
|

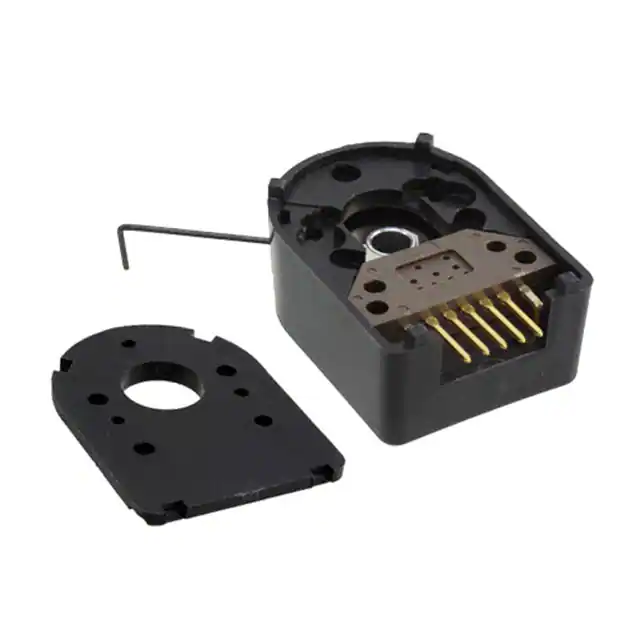

HEDS-5500#A14ROTARY ENCODER OPTICAL 500PPR |
2,190 | 55.92 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature (Incremental) | 500 | 5V | 5mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
|

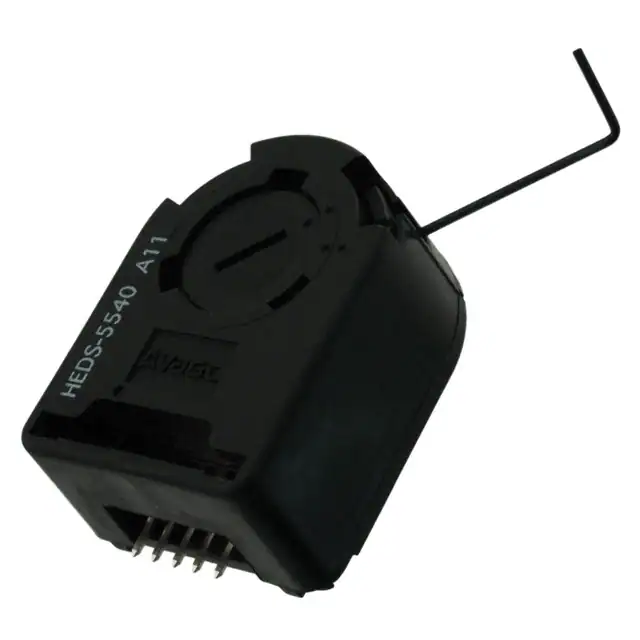

HEDS-5540#A11ROTARY ENCODER OPTICAL 500PPR |
3,306 | 55.92 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature with Index (Incremental) | 500 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
|
HEDM-5600#B13ROTARY ENCODER OPTICAL 1000PPR |
3,326 | 56.97 |
RFQ |
Datasheet |
Bulk | HEDM | Active | Optical | Quadrature (Incremental) | 1000 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
|
AEDL-5810-Z12ROTARY ENCODER OPTICAL 5000PPR |
3,418 | 71.08 |
RFQ |
Datasheet |
Bulk | AEDL-5 | Active | Optical | Quadrature with Index (Incremental) | 5000 | 4.5V ~ 5.5V | Shaft | No | No | - | - | - |
|
AEAT-6600-T16ROTARY ENCODER MAGNETIC |
2,912 | 8.94 |
RFQ |
Datasheet |
Bulk | - | Active | Magnetic | Quadrature (Incremental) | - | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | SMD (SMT) Tab |
|

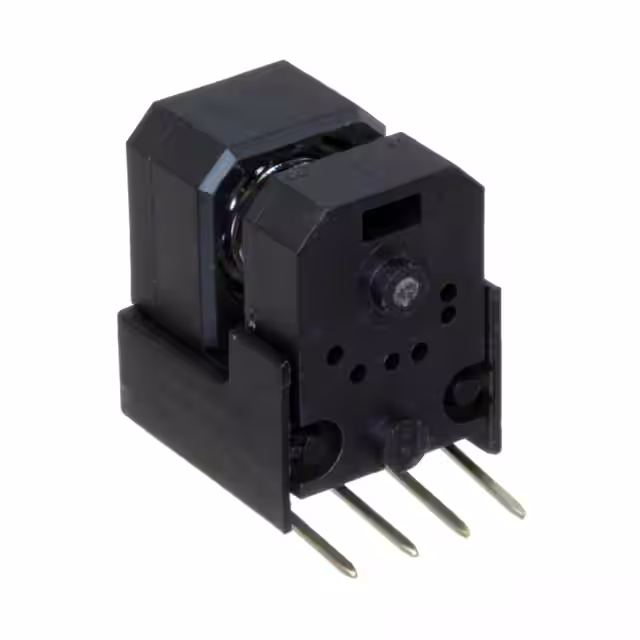

HEDS-9701#F54ROTARY ENCODER OPTICAL 256PPR |
2,266 | 15.42 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature (Incremental) | 256 | 5V | Codewheel Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins |
|
HEDS-9731#150ROTARY ENCODR OPTICAL 360 LPI |
2,152 | 17.29 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature (Incremental) | 360 LPI | 2.8V ~ 5.2V | Codestrip Not Included | No | No | Chassis Mount | Right Angle | Terminal Pins |
|
HEDS-9000#B00ROTARY ENCODER OPTICAL 1000PPR |
3,202 | 32.04 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature (Incremental) | 1000 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins |
|
HRPG-ASCA#54FROTARY ENCODER OPTICAL 120PPR |
3,859 | 40.27 |
RFQ |
Datasheet |
Bulk | HRPG | Active | Optical | Quadrature (Incremental) | 120 | 5V | 6mm Dia Round End | No | No | Panel, PCB Through Hole | Vertical | PC Pin |
|
HEDS-9140#G00ROTARY ENCODER OPTICAL 360PPR |
3,690 | 41.48 |
RFQ |
Datasheet |
Tube | HEDS | Active | Optical | Quadrature with Index (Incremental) | 360 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins |
|
HEDS-5500#A11ROTARY ENCODER OPTICAL 500PPR |
2,872 | 55.92 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature (Incremental) | 500 | 5V | 4mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
|

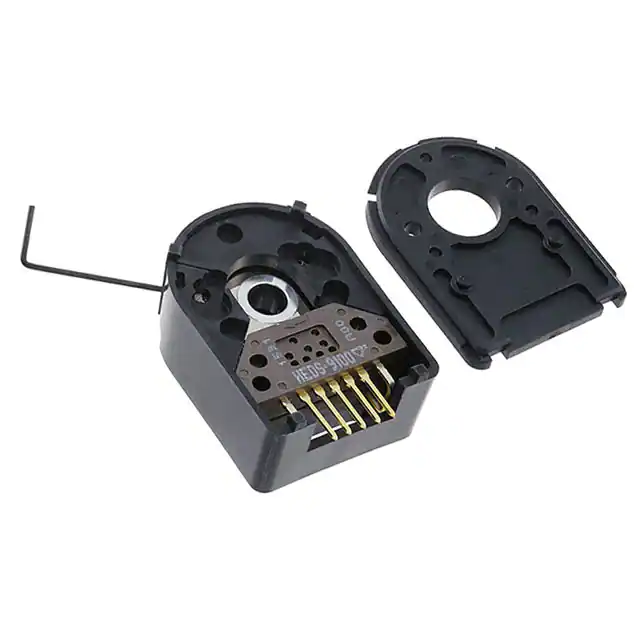

HEDS-5500#A12ROTARY ENCODER OPTICAL 500PPR |
3,290 | 55.92 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature (Incremental) | 500 | 5V | 6mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
|

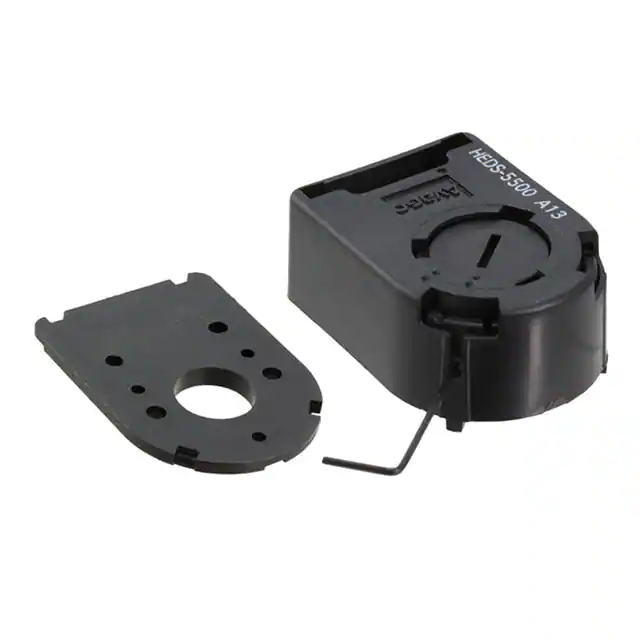

HEDS-5500#A13ROTARY ENCODER OPTICAL 500PPR |
3,835 | 55.92 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature (Incremental) | 500 | 5V | 8mm Open Center | No | No | Chassis Mount, Motors | Vertical | Terminal Pins |
|

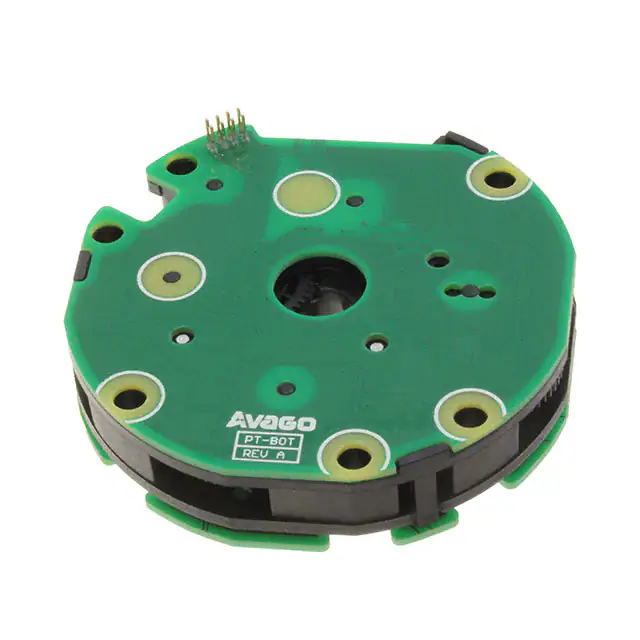

AEAT-84AD-LBSC0ROTARY ENCODER OPTICAL 4096PPR |
3,018 | 117.27 |
RFQ |
Datasheet |
Bulk | AEAT-84AD | Active | Optical | Gray Code (Absolute) | 4096 | 5V | 10mm Geared Center | No | No | Chassis Mount | - | Pin Strip |
|
|
HEDS-9700#D50ROTARY ENCODER OPTICAL 192PPR |
4,000 | 15.12 |
RFQ |
Datasheet |
Bulk | HEDS | Active | Optical | Quadrature (Incremental) | 192 | 5V | Codewheel Not Included | No | No | Chassis Mount | Vertical | Terminal Pins |
|

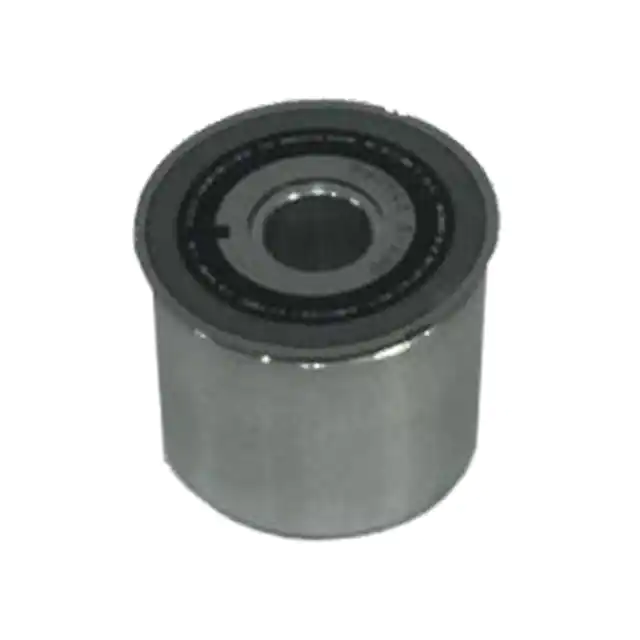

AR18-S11ROTARY ENCODER OPTICAL PROG |
3,538 | 28.49 |
RFQ |
Datasheet |
Bulk | AR18 | Active | Optical | Digital | Programmable | 3V ~ 3.6V, 4.5V ~ 5.5V | External Magnet, Not Included | No | No | Surface Mount | - | Surface Mount (SMD,SMT) |
|
|
AEDS-9340-L00ROTARY ENCODER OPTICAL 1250PPR |
3,966 | 33.68 |
RFQ |
Datasheet |
Tube | AEDS-9340 | Active | Optical | Quadrature with Index (Incremental) | 1250 | 5V | Codewheel Not Included | No | No | Chassis Mount | - | Terminal Pins |
