Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B65805P0000R087 FERRITE CORE RM 2.4UH N87 2PCS EPCOS - TDK Electronics	173	2.68	RFQ	Datasheet	Box	RM5/LP	Active	-	-	N87	-	-	-	-	-	-	-	-	-	-	-	-	-

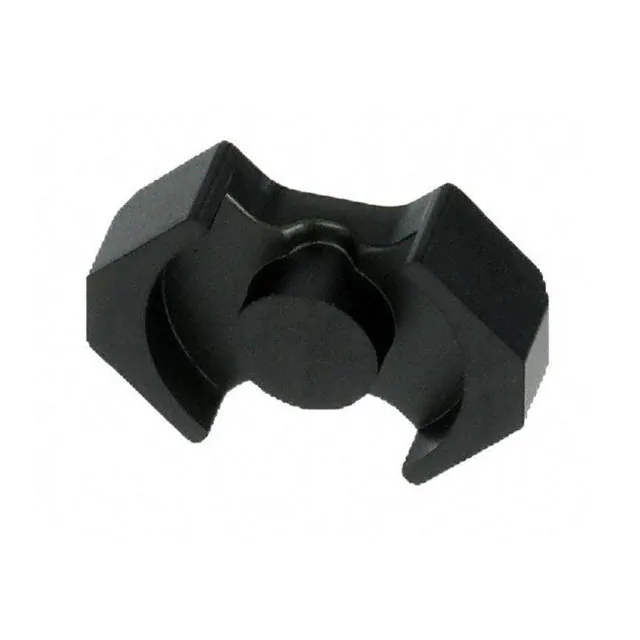

B65807C1000K048 FERRITE CORE EPCOS - TDK Electronics	780	2.81	RFQ		Box	RM6	Active	-	-	-	-	-	-	Gapped	-	-	-	-	-	-	-	-	-

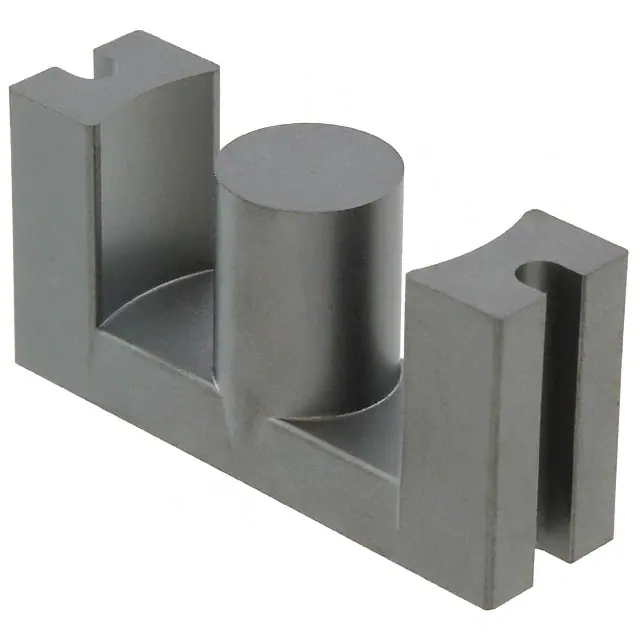

B66339G0000X127 FERRITE CORE EC N27 1PC EPCOS - TDK Electronics	239	2.82	RFQ	Datasheet	Box	EC41/20/12	Active	EC	EC 41 x 20 x 12	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.469 (11.90mm)

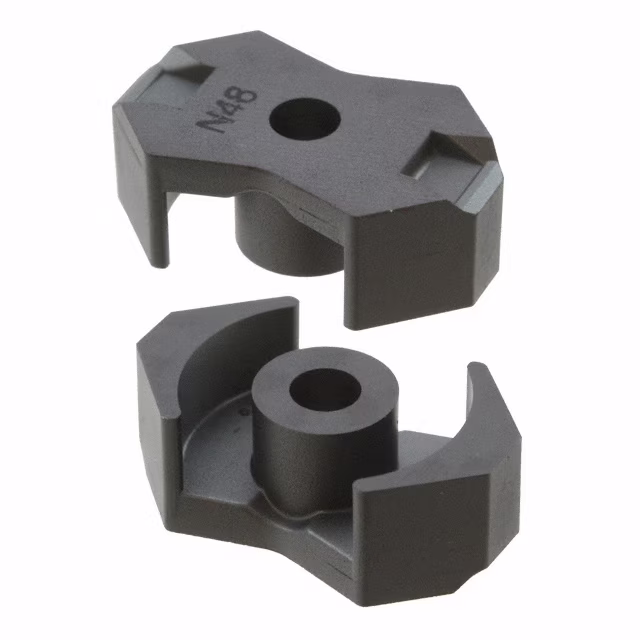

B65807C0000R048 FERRITE CORE RM 2.2UH N48 2PCS EPCOS - TDK Electronics	519	2.84	RFQ	Datasheet	Box	RM6	Active	RM	RM 6	N48	-	2.2 µH	-20%, +30%	Ungapped	1500	-	0.86	26.9	31.3	-	840	Uncoated	0.246 (6.25mm)
B66455K0000X149 FERRITE CORE I N49 EPCOS - TDK Electronics	442	2.85	RFQ	Datasheet	Tray	I22/2.5/16	Active	I	I 22 x 2.5 x 16	N49	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)
B66484G0000X192 FERRITE CORE ER N92 1PC EPCOS - TDK Electronics	378	2.87	RFQ	Datasheet	Box	ER25/6/15	Active	ER	ER 25 x 6 x 15	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.216 (5.50mm)
B66363G1000X127 FERRITE CORE ETD N27 1PC EPCOS - TDK Electronics	239	3.34	RFQ	Datasheet	Box	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.787 (20.00mm)
B66457G0000X197 FERRITE CORE ELP N97 1PC EPCOS - TDK Electronics	3,893	3.40	RFQ	Datasheet	Tray	ELP32/6/20	Active	ELP	ELP 32 x 6 x 20	N97	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.250 (6.35mm)
B66329G1000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	287	3.69	RFQ	Datasheet	Box	E42/21/20	Active	E	E 42 x 21 x 20	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)

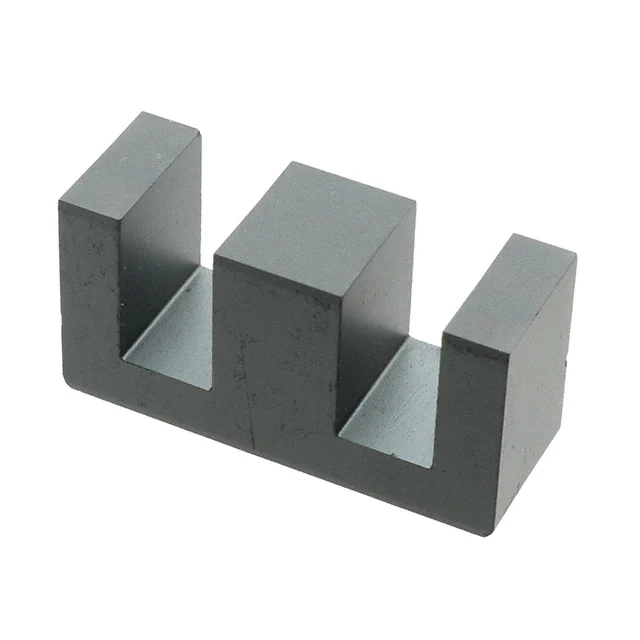

B66325G0000X130 FERRITE CORE E N30 1PC EPCOS - TDK Electronics	129	4.24	RFQ	Datasheet	Box	E42/21/15	Active	E	E 42 x 21 x 15	N30	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.835 (21.20mm)
B66501G0000X192 FERRITE CORE ER N92 1PC EPCOS - TDK Electronics	195	4.70	RFQ	Datasheet	Box	ER32/5/21	Active	ER	ER 32 x 5 x 21	N92	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.201 (5.10mm)
B66335G1500X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,173	6.10	RFQ	Datasheet	Box	E55/28/21	Active	E	E 55 x 28 x 21	N27	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)

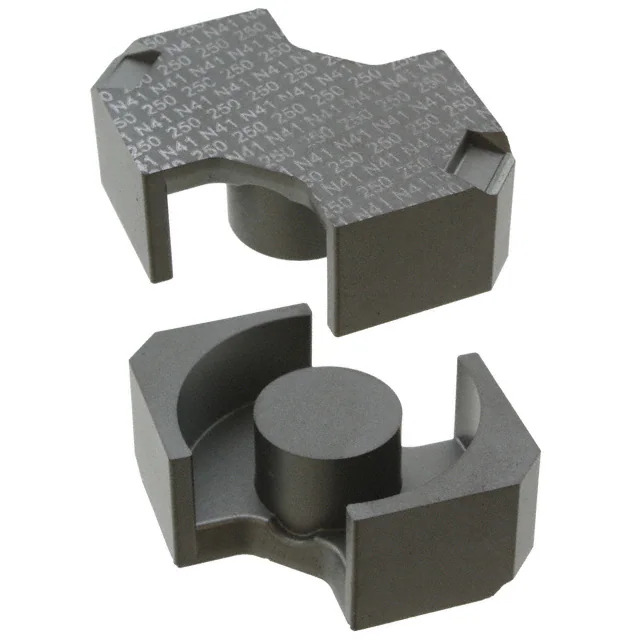

B65815E0250A041 FERRITE CORE RM 250NH N41 2PCS EPCOS - TDK Electronics	2,443	7.69	RFQ	Datasheet	Box	RM12	Active	RM	RM 12	N41	-	250 nH	±3%	Gapped	78	2800	0.39	57	146	125	8320	Uncoated	0.484 (12.30mm)
B66395G2000X187 FERRITE CORE ETD N87 1PC EPCOS - TDK Electronics	3,492	8.59	RFQ	Datasheet	Box	ETD54/28/19	Active	ETD	ETD 54 x 28 x 19	N87	-	-	-	Gapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)

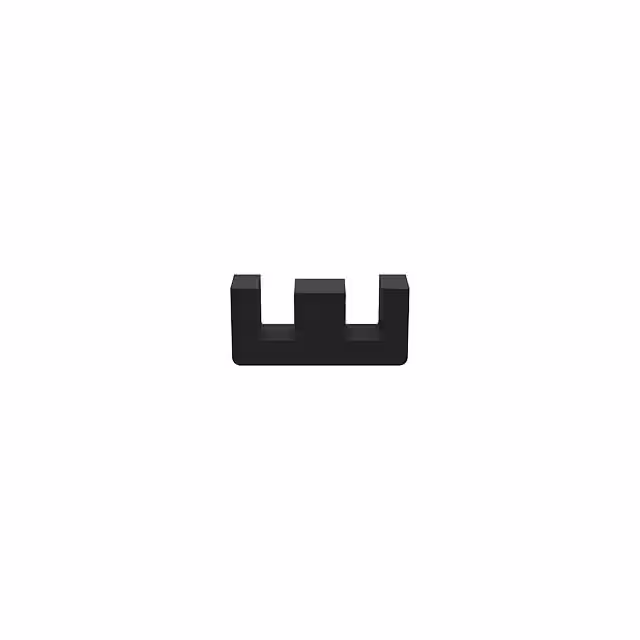

B66344G0000X127 FERRITE CORE E N27 1PC EPCOS - TDK Electronics	3,682	8.85	RFQ	Datasheet	Box	E55/28/25	Active	E	E 55 x 28 x 25	N27	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	1.094 (27.80mm)

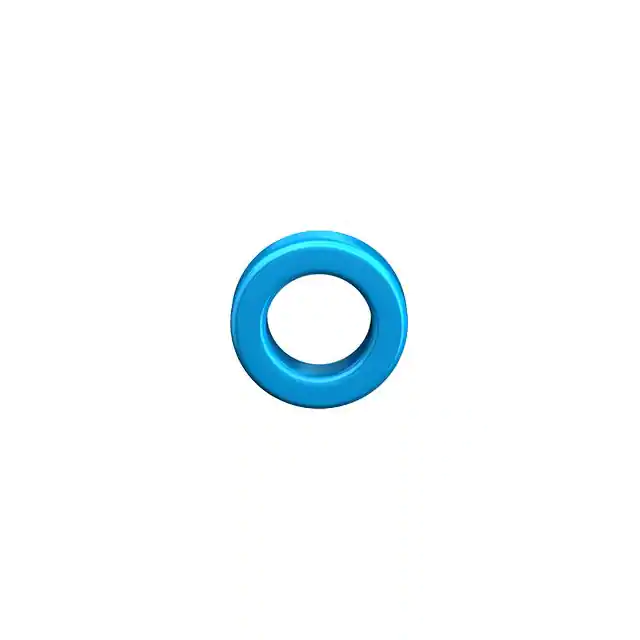

B64290L0659X065 FERRITE CORE TOROID 8.2UH T65 EPCOS - TDK Electronics	2,148	9.62	RFQ	Datasheet	Box	TX40/24/16	Active	Toroid	-	T65	1.646 (41.80mm)	8.2 µH	±30%	Ungapped	-	5000	0.77	96.29	125.3	125.3	12070	Epoxy	0.677 (17.20mm)
B66233Q0150K187 E32/16/11-N87-DG150 EPCOS - TDK Electronics	406	1.76	RFQ	Datasheet	Tray	E32/16/11	Active	E	E 32 x 16 x 11	N87	-	150 nH	±10%	Distributed Gapped	-	-	0.76	74	97	95	7187	Uncoated	0.433 (11.00mm)
B66233Q0100K187 E32/16/11-N87-DG100 EPCOS - TDK Electronics	370	1.76	RFQ	Datasheet	Bulk	E32/16/11	Active	E	E 32 x 16 x 11	N87	-	100 nH	±10%	Distributed Gapped	-	-	0.76	74	97	95	7187	Uncoated	0.433 (11.00mm)
B66361G0000X197 FERRITE CORES EPCOS - TDK Electronics	627	2.38	RFQ	Datasheet	Bulk	ETD34/17/11	Active	ETD	ETD 34/17/11	N97	-	-	-20%, +30%	Ungapped	1710	-	0.81	78.6	97.1	91.6	7630	Uncoated	0.689 (17.50mm)
B66363Q0150K187 ETD39/20/13-N87-DG150 EPCOS - TDK Electronics	157	3.09	RFQ	Datasheet	Bulk	ETD39/20/13	Active	ETD	ETD 39 x 20 x 13	N87	-	150 nH	±10%	Distributed Gapped	-	-	0.74	92.2	125	123	11500	Uncoated	0.504 (12.80mm)
