Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
B64290P0036X001 FERRITE CORE EPCOS - TDK Electronics	3,840	0.29	RFQ	Datasheet	Box	TC4.0/2.4/1.6	Active	Toroid	-	K1	-	-	-	Gapped	-	80	-	-	-	-	-	Parylene	-
B64290P0681X046 FERRITE CORE EPCOS - TDK Electronics	3,053	0.29	RFQ	Datasheet	Box	TC9.53/4.75/2.0	Active	Toroid	-	T46	-	-	-	Gapped	-	15000	-	-	-	-	-	Parylene	-
B64290P0687X830 FERRITE CORE TOROID 1.68UH N30 EPCOS - TDK Electronics	3,746	0.29	RFQ	Datasheet	Box	TC5.8/3/3	Active	Toroid	-	N30	0.231 (5.87mm)	1.68 µH	±25%	Ungapped	-	4300	3.22	13.03	4.04	-	52.6	Parylene	0.119 (3.02mm)
B65843A0040A087 FERRITE CORE EPCOS - TDK Electronics	3,569	0.29	RFQ	Datasheet	Box	-	Not For New Designs	EP	EP 13	N87	-	-	-	-	-	2200	1.24	24.2	19.5	14.9	472	Uncoated	0.256 (6.50mm)
B62110A4071X022 FERRITE CORES EPCOS - TDK Electronics	2,183	0.30	RFQ		Box	TUB4.1/1.5/4	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B64290L0690X038 FERRITE CORE EPCOS - TDK Electronics	2,449	0.30	RFQ	Datasheet	Box	TX9.53/4.75/2	Active	Toroid	-	T38	-	-	-	Gapped	-	10000	-	-	-	-	-	Epoxy	-
B64290P0687X038 FERRITE CORE TOROID 3.9UH T38 EPCOS - TDK Electronics	3,653	0.31	RFQ	Datasheet	Box	TC5.8/3/3	Active	Toroid	-	T38	0.231 (5.87mm)	3.9 µH	±30%	Ungapped	-	10000	3.22	13.03	4.04	-	52.6	Parylene	0.119 (3.02mm)
B62110A4044X022 FERRITE CORES EPCOS - TDK Electronics	2,698	0.31	RFQ		Box	TUB4.55/1.9/6.3	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B64290A0751X065 FERRITE CORE TOROID 2.55UH T65 EPCOS - TDK Electronics	2,094	0.31	RFQ	Datasheet	Box	T8/4/4	Active	Toroid	R 8 x 4 x 4	T65	0.315 (8.00mm)	2.55 µH	±30%	Ungapped	-	4600	2.26	17.42	7.7	-	134	Uncoated	0.157 (4.00mm)
B66300G0000X130 FERRITE CORE E N30 1PC EPCOS - TDK Electronics	2,083	0.32	RFQ	Datasheet	Box	E6.3	Active	E	E 6 x 3	N30	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.114 (2.90mm)
B64290A0707X010 FERRITE CORE EPCOS - TDK Electronics	3,107	0.32	RFQ	Datasheet	Box	T3.94/2.24/1.8	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
B62152A0007X027 FERRITE CORE EPCOS - TDK Electronics	3,103	0.32	RFQ		Box	MHB2-6.2/7.25/4.2	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B66307G1000X127 FERRITE CORE EPCOS - TDK Electronics	3,663	0.32	RFQ	Datasheet	Box	E16/8/5	Active	E	E 16 x 8 x 5	N27	-	-	-	Gapped	-	2000	1.87	37.6	20.1	19.4	756	Uncoated	0.323 (8.20mm)
B64290A0037X033 FERRITE CORE EPCOS - TDK Electronics	2,029	0.32	RFQ	Datasheet	Box	T6.3/3.8/2.5	Active	Toroid	R 6.3 x 3.8 x 2.5	M33	0.248 (6.30mm)	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	0.098 (2.50mm)
B66413G0100X187 FERRITE CORE EPCOS - TDK Electronics	2,534	0.33	RFQ	Datasheet	Box	EFD15/8/5	Active	EFD	EFD 15 x 8 x 5	N87	-	-	-	Gapped	-	2200	2.27	34	15	12.2	510	Uncoated	0.295 (7.50mm)
B64290P0074X033 FERRITE CORE EPCOS - TDK Electronics	3,938	0.33	RFQ	Datasheet	Box	TC5.84/3.05/1.75	Active	Toroid	-	M33	-	-	-	Gapped	-	750	-	-	-	-	-	Parylene	-

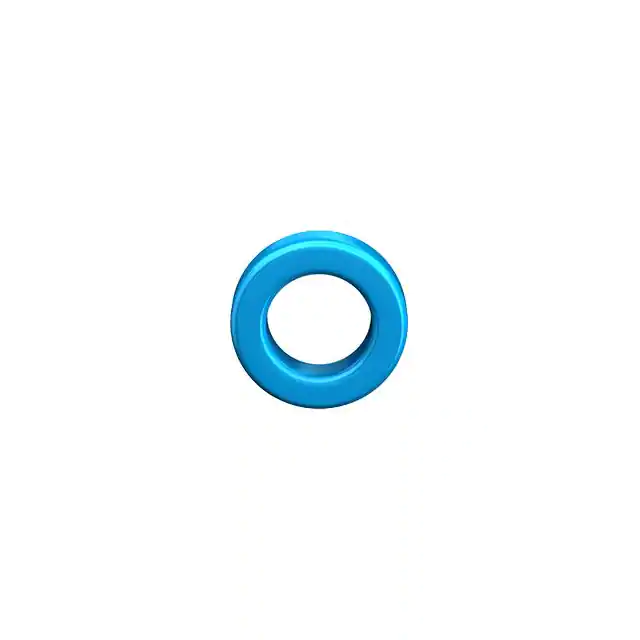

B64290L0658X035 FERRITE CORE TOROID 2.65UH T35 EPCOS - TDK Electronics	2,006	0.33	RFQ	Datasheet	Box	TX14/9/5	Active	Toroid	-	T35	0.594 (15.10mm)	2.65 µH	±25%	Ungapped	-	6000	2.84	34.98	12.3	-	430	Epoxy	0.236 (6.00mm)
B65807J0400A048 FERRITE CORE RM 400NH N48 2PCS EPCOS - TDK Electronics	3,918	1.34	RFQ	Datasheet	Box	RM6	Active	RM	RM 6	N48	-	400 nH	±3%	Gapped	274	-	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
B65807J0630J048 FERRITE CORE EPCOS - TDK Electronics	2,515	1.34	RFQ	Datasheet	Box	RM6	Active	RM	RM 6	N48	-	-	-	Gapped	-	2300	0.78	28.6	36.6	31	1050	Uncoated	0.246 (6.25mm)
B64290A0618X097 FERRITE CORE EPCOS - TDK Electronics	2,066	1.42	RFQ	Datasheet	Box	T25.3/14.8/15	Active	Toroid	-	-	-	-	-	Ungapped	-	-	-	-	-	-	-	Uncoated	-
