| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

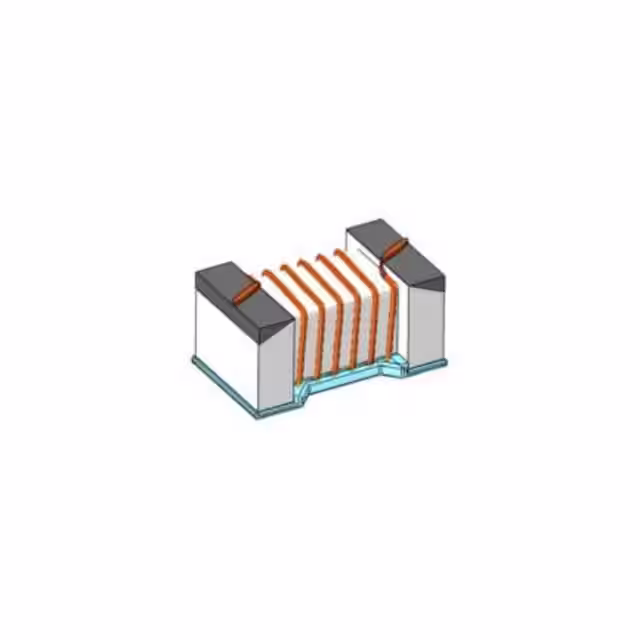

MWSD1005C6N3KTM81FIXED IND 6.3NH 1.6A 57MOHM SMD |
2,537 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M8X | Active | Drum Core, Wirewound | Ceramic | 6.3 nH | ±10% | 1.6 A | - | Unshielded | 57mOhm Max | 33 @ 250MHz | 7.8GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C13NKTM81FIXED IND 13NH 1.24A 93MOHM SMD |
3,728 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M8X | Active | Drum Core, Wirewound | Ceramic | 13 nH | ±10% | 1.24 A | - | Unshielded | 93mOhm Max | 30 @ 250MHz | 5.2GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C8N5KTM81FIXED IND 8.5NH 1.5A 69MOHM SMD |
3,030 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M8X | Active | Drum Core, Wirewound | Ceramic | 8.5 nH | ±10% | 1.5 A | - | Unshielded | 69mOhm Max | 32 @ 250MHz | 6.5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
MWSD1005C9N4GTM01FIXED IND 9.4NH 540MA 140MOHM SM |
3,965 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M | Active | Drum Core, Wirewound | Ceramic | 9.4 nH | ±2% | 540 mA | - | Unshielded | 140mOhm Max | 25 @ 250MHz | 5.5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C7N2JTM81FIXED IND 7.2NH 1.7A 50MOHM SMD |
2,736 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M | Active | Drum Core, Wirewound | Ceramic | 7.2 nH | ±5% | 1.7 A | - | Unshielded | 50mOhm Max | 32 @ 250MHz | 7GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C3N6DTM11FIXED IND 3.6NH 900MA 40MOHM SMD |
3,784 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M | Active | Drum Core, Wirewound | Ceramic | 3.6 nH | ±0.5nH | 900 mA | - | Unshielded | 40mOhm Max | 30 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C23NJTM01FIXED IND 23NH 310MA 300MOHM SMD |
2,714 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M | Active | Drum Core, Wirewound | Ceramic | 23 nH | ±5% | 310 mA | - | Unshielded | 300mOhm Max | 25 @ 250MHz | 3.8GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C1N7CTM01FIXED IND 1.7NH 640MA 100MOHM SM |
2,218 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M | Active | Drum Core, Wirewound | Ceramic | 1.7 nH | ±0.2nH | 640 mA | - | Unshielded | 100mOhm Max | 10 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
MWSD1005CHR16JSTFFIXED IND 160NH 240MA 2.4OHM SMD |
2,949 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CH | Active | Drum Core, Wirewound | Ceramic | 160 nH | ±5% | 240 mA | - | Unshielded | 2.4Ohm Max | 29 @ 250MHz | - | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C8N2HTM01FIXED IND 8.2NH 540MA 140MOHM SM |
2,091 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±3% | 540 mA | - | Unshielded | 140mOhm Max | 25 @ 250MHz | 5.5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C14NKTM81FIXED IND 14NH 1.15A 111MOHM SMD |
3,608 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M8X | Active | Drum Core, Wirewound | Ceramic | 14 nH | ±10% | 1.15 A | - | Unshielded | 111mOhm Max | 31 @ 250MHz | 5.2GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C7N3HTM81FIXED IND 7.3NH 1.7A 50MOHM SMD |
3,766 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M | Active | Drum Core, Wirewound | Ceramic | 7.3 nH | ±3% | 1.7 A | - | Unshielded | 50mOhm Max | 32 @ 250MHz | 7GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C39NGTFIXED IND 39NH 250MA 600MOHM SMD |
2,006 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±2% | 250 mA | - | Unshielded | 600mOhm Max | 25 @ 250MHz | 3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CHR15HSTFFIXED IND 150NH 240MA 2 OHM SMD |
2,734 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CH | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±3% | 240 mA | - | Unshielded | 2Ohm Max | 29 @ 250MHz | - | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C3N8BTM81FIXED IND 3.8NH 1.95A 30MOHM SMD |
3,651 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M | Active | Drum Core, Wirewound | Ceramic | 3.8 nH | ±0.1nH | 1.95 A | - | Unshielded | 30mOhm Max | 35 @ 250MHz | 10GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C5N7STM81FIXED IND 5.7NH 1.77A 40MOHM SMD |
2,051 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M | Active | Drum Core, Wirewound | Ceramic | 5.7 nH | ±0.3nH | 1.77 A | - | Unshielded | 40mOhm Max | 30 @ 250MHz | 8GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C5N8DTM01FIXED IND 5.8NH 700MA 120MOHM SM |
3,303 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M | Active | Drum Core, Wirewound | Ceramic | 5.8 nH | ±0.5nH | 700 mA | - | Unshielded | 120mOhm Max | 25 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C26NJTM81FIXED IND 26NH 720MA 282MOHM SMD |
2,363 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M | Active | Drum Core, Wirewound | Ceramic | 26 nH | ±5% | 720 mA | - | Unshielded | 282mOhm Max | 29 @ 250MHz | 4.1GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C3N1DTM01FIXED IND 3.1NH 570MA 130MOHM SM |
3,906 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M | Active | Drum Core, Wirewound | Ceramic | 3.1 nH | ±0.5nH | 570 mA | - | Unshielded | 130mOhm Max | 20 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005C36NJTM81FIXED IND 36NH 540MA 431MOHM SMD |
2,440 | 0.08 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-C-M | Active | Drum Core, Wirewound | Ceramic | 36 nH | ±5% | 540 mA | - | Unshielded | 431mOhm Max | 30 @ 250MHz | 3.5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 |
