| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

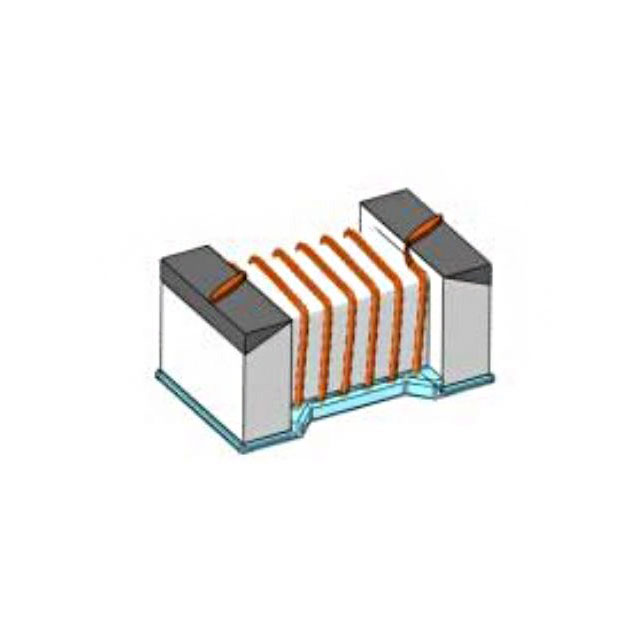

MWSD1005CP20NKSTFFIXED IND 20NH 780A 155MOHM SMD |
2,784 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 20 nH | ±10% | 780 mA | - | Unshielded | 155mOhm Max | 27 @ 250MHz | 3.5GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP15NGSTFFIXED IND 15NH 1.1A 115MOHM SMD |
2,834 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±2% | 1.1 A | - | Unshielded | 115mOhm Max | 28 @ 250MHz | 3.9GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP6N2SSTFFIXED IND 6.2NH 1.6A 50MOHM SMD |
3,816 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 6.2 nH | ±0.3nH | 1.6 A | - | Unshielded | 50mOhm Max | 29 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP23NJSTFFIXED IND 23NH 800A 160MOHM SMD |
2,580 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 23 nH | ±5% | 800 mA | - | Unshielded | 160mOhm Max | 28 @ 250MHz | 3.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP39NKSTFFIXED IND 39NH 450A 430MOHM SMD |
3,450 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±10% | 450 mA | - | Unshielded | 430mOhm Max | 28 @ 250MHz | 2.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP43NHSTFFIXED IND 43NH 450A 520MOHM SMD |
3,509 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 43 nH | ±3% | 450 mA | - | Unshielded | 520mOhm Max | 26 @ 250MHz | 2.5GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP5N6JSTFFIXED IND 5.6NH 1.6A 48MOHM SMD |
3,195 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±5% | 1.6 A | - | Unshielded | 48mOhm Max | 29 @ 250MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP4N7KSTFFIXED IND 4.7NH 1.5A 75MOHM SMD |
3,449 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 4.7 nH | ±10% | 1.5 A | - | Unshielded | 75mOhm Max | 23 @ 250MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP9N0GSTFFIXED IND 9NH 1.4A 80 MOHM SMD |
3,661 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 9 nH | ±2% | 1.4 A | - | Unshielded | 80mOhm Max | 27 @ 250MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP16NJSTFFIXED IND 16NH 850MA 130MOHM SMD |
3,956 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 16 nH | ±5% | 850 mA | - | Unshielded | 130mOhm Max | 27 @ 250MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP40NJSTFFIXED IND 40NH 450MA 520MOHM SMD |
2,799 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 40 nH | ±5% | 450 mA | - | Unshielded | 520mOhm Max | 28 @ 250MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP4N3SSTFFIXED IND 4.3NH 1.6A 50MOHM SMD |
2,127 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 4.3 nH | ±0.3nH | 1.6 A | - | Unshielded | 50mOhm Max | 27 @ 250MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP2N0DSTFFIXED IND 2NH 2.1A 38 MOHM SMD |
2,237 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 2 nH | ±0.5nH | 2.1 A | - | Unshielded | 38mOhm Max | 24 @ 250MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP25NGSTFFIXED IND 25NH 700MA 260MOHM SMD |
2,803 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 25 nH | ±2% | 700 mA | - | Unshielded | 260mOhm Max | 26 @ 250MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP51NHSTFFIXED IND 51NH 360MA 700MOHM SMD |
3,305 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 51 nH | ±3% | 360 mA | - | Unshielded | 700mOhm Max | 26 @ 250MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP3N9CSTFFIXED IND 3.9NH 1.7A 45MOHM SMD |
2,115 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±0.2nH | 1.7 A | - | Unshielded | 45mOhm Max | 28 @ 250MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP10NJSTFFIXED IND 10NH 1.3A 85 MOHM SMD |
2,660 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 1.3 A | - | Unshielded | 85mOhm Max | 26 @ 250MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP5N6SSTFFIXED IND 5.6NH 1.6A 48MOHM SMD |
2,956 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±0.3nH | 1.6 A | - | Unshielded | 48mOhm Max | 29 @ 250MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP5N1SSTFFIXED IND 5.1NH 1.2A 100MOHM SMD |
2,801 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 5.1 nH | ±0.3nH | 1.2 A | - | Unshielded | 100mOhm Max | 20 @ 250MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
|
|
MWSD1005CP47NGSTFFIXED IND 47NH 420MA 580MOHM SMD |
3,136 | 0.11 |
RFQ |
Datasheet |
0402 (1005 Metric) | Tape & Reel (TR) | MWSD-CP | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±2% | 420 mA | - | Unshielded | 580mOhm Max | 28 @ 250MHz | - | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 |
