| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD0120.503NLTFIXED IND 56.5UH 3.4A 82.5 MOHM |
3,701 | 1.83 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PD0120NL | Active | Wirewound | - | 56.5 µH | ±10% | 3.4 A | 4.3A | Unshielded | 82.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
PD0120.102NLTFIXED IND 1.2UH 15.4A 2 MOHM SMD |
3,737 | 1.83 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PD0120NL | Active | Wirewound | - | 1.2 µH | ±10% | 15.4 A | 29A | Unshielded | 2mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
PD0120.702NLTFIXED IND 7.2UH 8.6A 10 MOHM SMD |
3,582 | 1.83 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PD0120NL | Active | Wirewound | - | 7.2 µH | ±10% | 8.6 A | 12.6A | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
PD0120.113NLTFIXED IND 12.2UH 7.6A 16MOHM SMD |
2,697 | 1.83 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PD0120NL | Active | Wirewound | - | 12.2 µH | ±10% | 7.6 A | 9A | Unshielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
PD0120.373NLTFIXED IND 40.7UH 4A 58.5MOHM SMD |
2,740 | 1.83 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PD0120NL | Active | Wirewound | - | 40.7 µH | ±10% | 4 A | 5A | Unshielded | 58.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
PD0120.532NLTFIXED IND 5.7UH 10.4A 8.5MOHM SM |
3,610 | 1.83 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PD0120NL | Active | Wirewound | - | 5.7 µH | ±10% | 10.4 A | 13.6A | Unshielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
PD0120.183NLTFIXED IND 18.7UH 6.4A 25.5 MOHM |
3,830 | 1.83 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PD0120NL | Active | Wirewound | - | 18.7 µH | ±10% | 6.4 A | 7.6A | Unshielded | 25.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - |
|
PE-53362NLFIXED IND 1.1UH 21A 2.5 MOHM SMD |
2,318 | 1.83 |
RFQ |
Datasheet |
Nonstandard | Tube | SLIC | Active | Toroidal | - | 1.1 µH | - | 21 A | - | Unshielded | 2.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
PE-53362NLTFIXED IND 1.1UH 21A 2.5 MOHM SMD |
2,242 | 1.86 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLIC | Active | Toroidal | - | 1.1 µH | - | 21 A | - | Unshielded | 2.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|

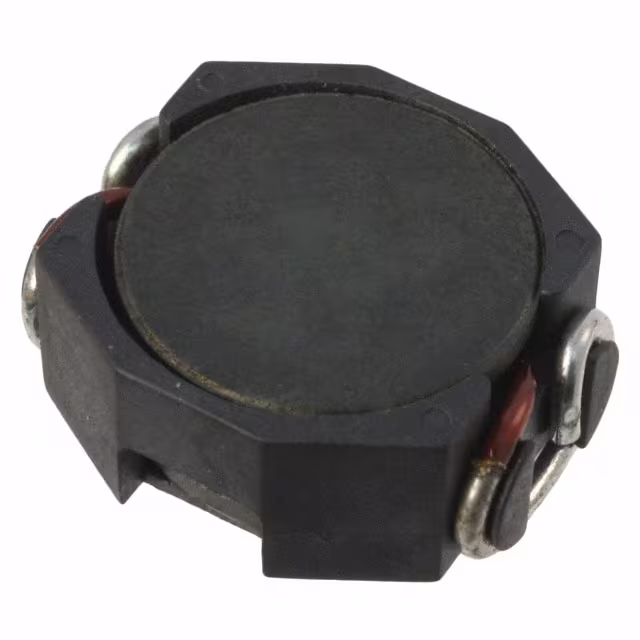

PB2020.102NLFIXED IND 1.2UH 23.7A 2.2MOHM SM |
3,990 | 1.87 |
RFQ |
Datasheet |
Nonstandard | Tube | PB2020NL | Active | Wirewound | - | 1.2 µH | ±20% | 23.7 A | 55A | Unshielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PE-53812NLFIXED IND 78UH 460MA 800 MOHM TH |
3,478 | 1.89 |
RFQ |
Datasheet |
Radial, Vertical - Corner Terminals | Tube | - | Active | Toroidal | - | 78 µH | ±20% | 460 mA | - | Shielded | 800mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - |
|
|
PE-53812SNLTFIXED IND 78UH 460MA 800MOHM SMD |
2,908 | 1.91 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | Toroidal | - | 78 µH | ±20% | 460 mA | - | Shielded | 800mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
PE-53363NLFIXED IND 2.1UH 22.4A 3.4MOHM SM |
2,947 | 1.96 |
RFQ |
Datasheet |
Nonstandard | Tube | SLIC | Active | Toroidal | - | 2.1 µH | - | 22.4 A | - | Unshielded | 3.4mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|

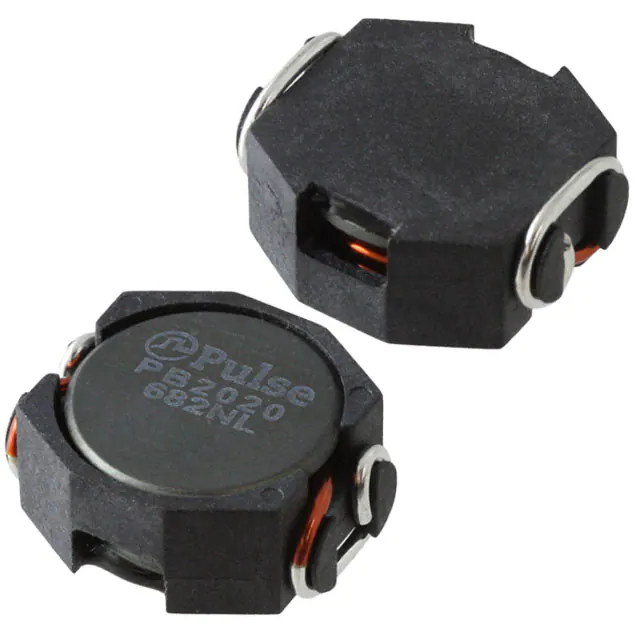

PB2020.682NLFIXED IND 6.8UH 13.6A 6.5MOHM SM |
3,057 | 1.97 |
RFQ |
Datasheet |
Nonstandard | Tube | PB2020NL | Active | Wirewound | - | 6.8 µH | ±20% | 13.6 A | 25A | Unshielded | 6.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|

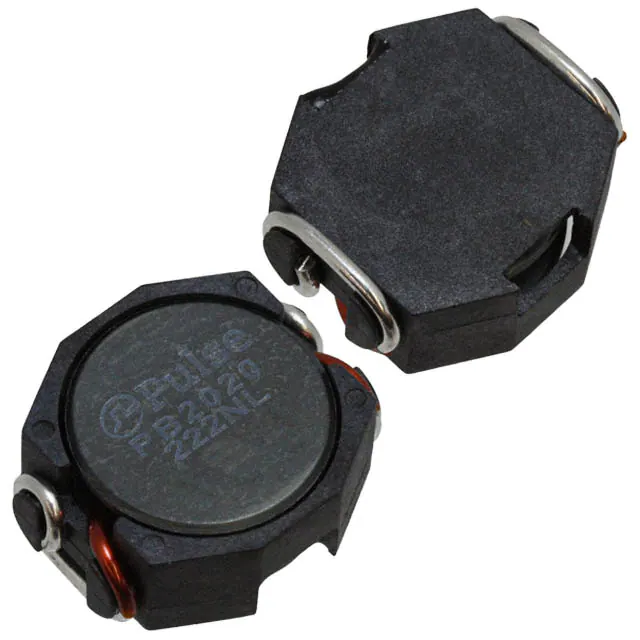

PB2020.222NLTFIXED IND 2.2UH 21.8A 2.8MOHM SM |
3,407 | 1.97 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PB2020NL | Active | Wirewound | - | 2.2 µH | ±20% | 21.8 A | 40A | Unshielded | 2.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PB2020.472NLTFIXED IND 4.7UH 16.8A 4.5MOHM SM |
3,862 | 1.97 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PB2020NL | Active | Wirewound | - | 4.7 µH | ±20% | 16.8 A | 28A | Unshielded | 4.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PB2020.682NLTFIXED IND 6.8UH 13.6A 6.5MOHM SM |
3,092 | 1.97 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PB2020NL | Active | Wirewound | - | 6.8 µH | ±20% | 13.6 A | 25A | Unshielded | 6.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
|
PE-53363NLTFIXED IND 2.1UH 22.4A 3.4MOHM SM |
3,227 | 1.99 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | SLIC | Active | Toroidal | - | 2.1 µH | - | 22.4 A | - | Unshielded | 3.4mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - |
|
PG0936.162NLTFIXED IND 1.6UH 31A 1.5 MOHM SMD |
3,263 | 2.03 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PG0936NL | Active | Wirewound | - | 1.6 µH | ±20% | 31 A | 36A | Unshielded | 1.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - |
|
|
PG0936.183NLTFIXED IND 18UH 9.8A 13.8MOHM SMD |
3,301 | 2.03 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | PG0936NL | Active | Wirewound | - | 18 µH | ±20% | 9.8 A | 11A | Unshielded | 13.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - |
