Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Material-Core	Inductance	Tolerance	CurrentRating(Amps)	Current-Saturation(Isat)	Shielding	DCResistance(DCR)	Q@Freq	Frequency-SelfResonant	Ratings	OperatingTemperature	InductanceFrequency-Test	Features	MountingType	Size/Dimension

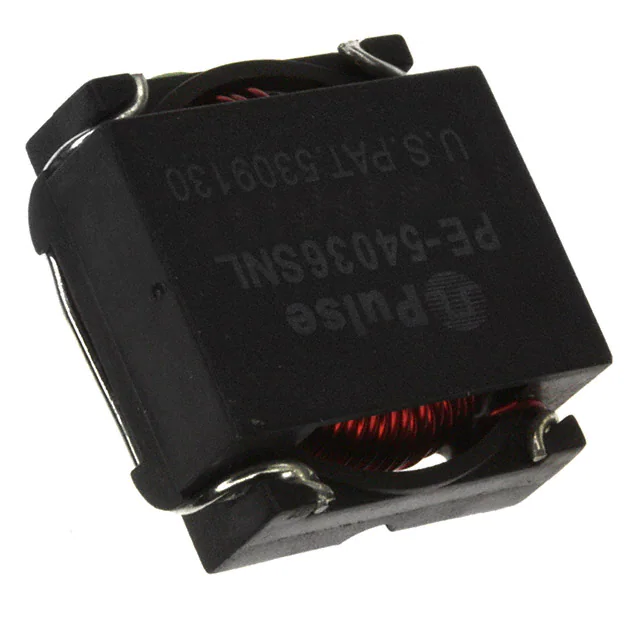

PE-54036SNL FIXED IND 168UH 1.81A 180MOHM SM Pulse Electronics Power	298	4.42	RFQ	Datasheet	Nonstandard	Bulk	-	Active	Toroidal	-	168 µH	±20%	1.81 A	-	Shielded	180mOhm	-	-	-	-40°C ~ 130°C	-	-	Surface Mount	-

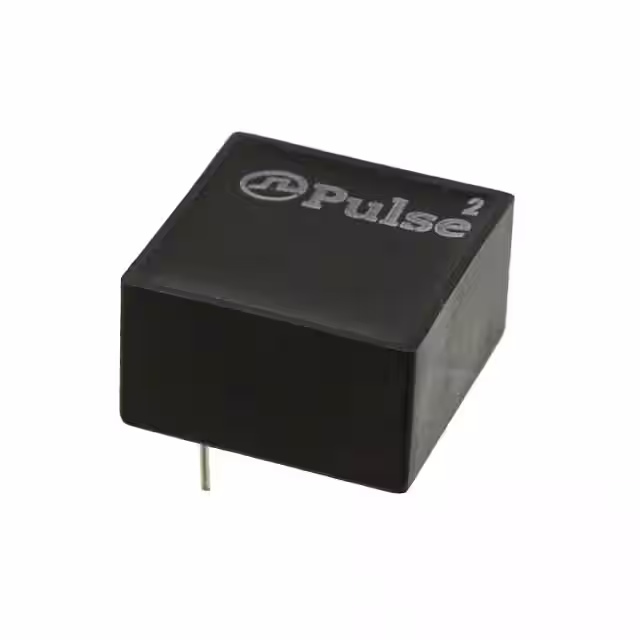

PE-53829NL FIXED IND 112UH 1.26A 300MOHM TH Pulse Electronics Power	839	4.45	RFQ	Datasheet	Radial, Vertical - Corner Terminals	Tube	-	Active	Toroidal	-	112 µH	±20%	1.26 A	-	Shielded	300mOhm	-	-	-	-40°C ~ 130°C	-	-	Through Hole	-
PE-51514NL FIXED IND 32UH 6.6A 25 MOHM TH Pulse Electronics Power	475	4.85	RFQ	Datasheet	Radial, Vertical, 4 Leads (Open)	Tray	-	Active	Toroidal	-	32 µH	-	6.6 A	-	Unshielded	25mOhm Max	-	-	-	-40°C ~ 130°C	50 kHz	-	Through Hole	-
P0146NL FIXED IND 25UH 2.43A 75 MOHM SMD Pulse Electronics Power	479	5.60	RFQ	Datasheet	Nonstandard	Tube	Bobcat	Active	Toroidal	-	25 µH	-	2.43 A	-	Unshielded	75mOhm Max	-	-	-	-40°C ~ 130°C	-	-	Surface Mount	-

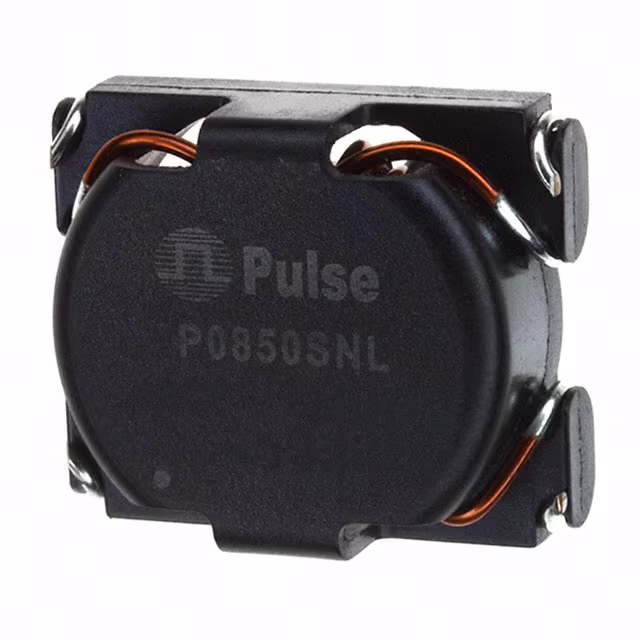

P0850SNL FIXED IND 23UH 5A 13 MOHM SMD Pulse Electronics Power	392	5.60	RFQ	Datasheet	Nonstandard	Tube	Bigfoot	Active	Toroidal	-	23 µH	±20%	5 A	-	Shielded	13mOhm	-	-	-	-40°C ~ 130°C	-	-	Surface Mount	-

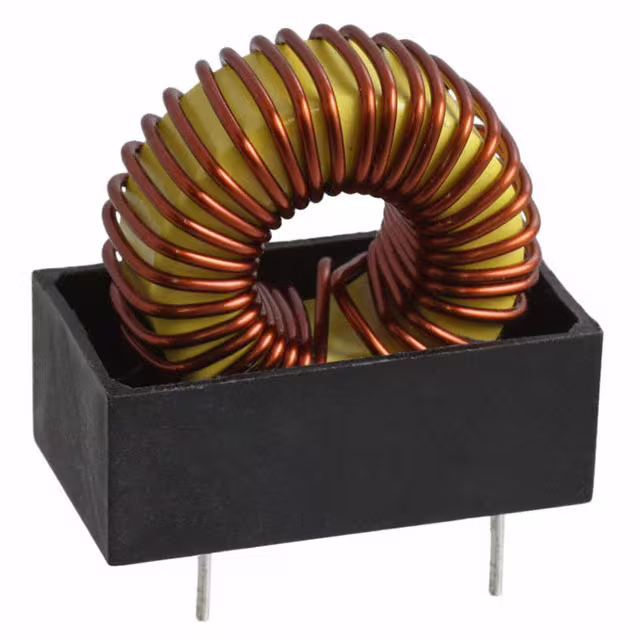

PE-51515NL FIXED IND 52UH 7A 32 MOHM TH Pulse Electronics Power	320	6.94	RFQ	Datasheet	Radial, Vertical, 4 Leads (Open)	Tube	-	Active	Toroidal	-	52 µH	-	7 A	-	Unshielded	32mOhm Max	-	-	-	-40°C ~ 130°C	50 kHz	-	Through Hole	-

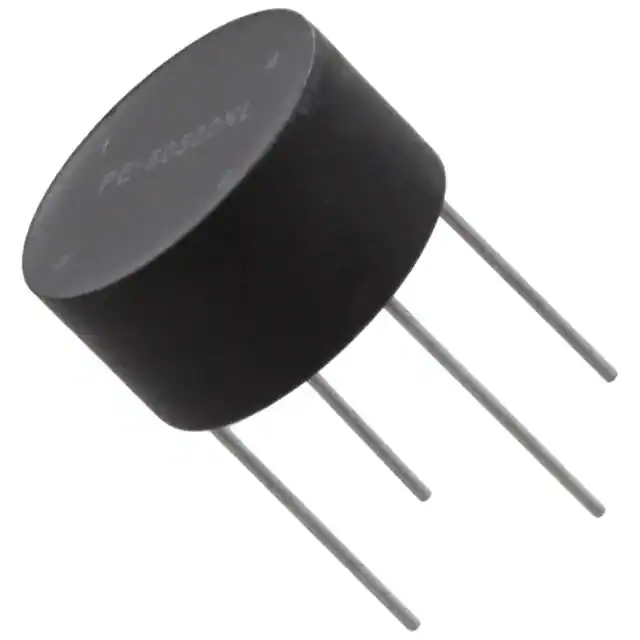

PE-50502NL FIXED IND 2MH 250MA 1.3 OHM TH Pulse Electronics Power	207	8.46	RFQ	Datasheet	Radial, Vertical Cylinder, 4 Leads	Tube	-	Active	Toroidal	-	2 mH	-	250 mA	-	Unshielded	1.3Ohm Max	-	-	-	-55°C ~ 70°C	20 kHz	-	Through Hole	-

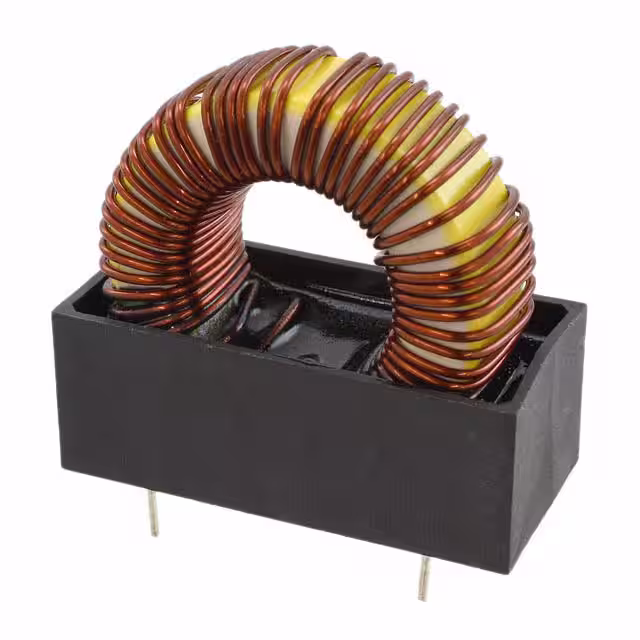

PE-51517NL FIXED IND 175UH 6A 68 MOHM TH Pulse Electronics Power	666	11.67	RFQ	Datasheet	Radial, Vertical, 4 Leads (Open)	Tray	-	Active	Toroidal	-	175 µH	-	6 A	-	Unshielded	68mOhm Max	-	-	-	-40°C ~ 130°C	50 kHz	-	Through Hole	-
BSCQ000603031N2B00 FIXED IND 1.2NH 800MA 80MOHM SMD Pulse Electronics Power	21,190	0.10	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	BSCQ	Active	Multilayer	Ceramic	1.2 nH	±0.1nH	800 mA	-	Unshielded	80mOhm Max	14 @ 500MHz	10GHz	-	-55°C ~ 125°C	500 MHz	-	Surface Mount	0201
BSCH000603034N7S00 FIXED IND 4.7NH 280MA 300MOHM SM Pulse Electronics Power	26,037	0.10	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	BSCH	Active	Multilayer	Ceramic	4.7 nH	±0.3nH	280 mA	-	Unshielded	300mOhm Max	4 @ 100MHz	5.3GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0201
BSCQ000603031N5B00 FIXED IND 1.5NH 600MA 150MOHM SM Pulse Electronics Power	27,580	0.10	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	BSCQ	Active	Multilayer	Ceramic	1.5 nH	±0.1nH	600 mA	-	Unshielded	150mOhm Max	14 @ 500MHz	10GHz	-	-55°C ~ 125°C	500 MHz	-	Surface Mount	0201
BSCQ000603031N0B00 FIXED IND 1NH 850MA 70 MOHM SMD Pulse Electronics Power	27,684	0.10	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	BSCQ	Active	Multilayer	Ceramic	1 nH	±0.1nH	850 mA	-	Unshielded	70mOhm Max	14 @ 500MHz	10GHz	-	-55°C ~ 125°C	500 MHz	-	Surface Mount	0201
BSCQ000603035N6C00 FIXED IND 5.6NH 325MA 470MOHM SM Pulse Electronics Power	44,247	0.10	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	BSCQ	Active	Multilayer	Ceramic	5.6 nH	±0.2nH	325 mA	-	Unshielded	470mOhm Max	14 @ 500MHz	5.5GHz	-	-55°C ~ 125°C	500 MHz	-	Surface Mount	0201
BSCH000603034N3S00 FIXED IND 4.3NH 280MA 300MOHM SM Pulse Electronics Power	40,012	0.10	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	BSCH	Active	Multilayer	Ceramic	4.3 nH	±0.3nH	280 mA	-	Unshielded	300mOhm Max	4 @ 100MHz	5.7GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0201
BSCQ000603033N0B00 FIXED IND 3NH 460MA 240MOHM SMD Pulse Electronics Power	44,492	0.10	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	BSCQ	Active	Multilayer	Ceramic	3 nH	±0.1nH	460 mA	-	Unshielded	240mOhm Max	14 @ 500MHz	9.1GHz	-	-55°C ~ 125°C	500 MHz	-	Surface Mount	0201
BSCH000603035N6S00 FIXED IND 5.6NH 260MA 360MOHM SM Pulse Electronics Power	27,192	0.10	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	BSCH	Active	Multilayer	Ceramic	5.6 nH	±0.3nH	260 mA	-	Unshielded	360mOhm Max	4 @ 100MHz	4.6GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0201
BSCH000603036N2S00 FIXED IND 6.2NH 250MA 380MOHM SM Pulse Electronics Power	24,084	0.10	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	BSCH	Active	Multilayer	Ceramic	6.2 nH	±0.3nH	250 mA	-	Unshielded	380mOhm Max	4 @ 100MHz	4.2GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0201
BSCQ000603032N4B00 FIXED IND 2.4NH 430MA 260MOHM SM Pulse Electronics Power	27,545	0.10	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	BSCQ	Active	Multilayer	Ceramic	2.4 nH	±0.1nH	430 mA	-	Unshielded	260mOhm Max	14 @ 500MHz	10GHz	-	-55°C ~ 125°C	500 MHz	-	Surface Mount	0201
BSCQ000603034N7C00 FIXED IND 4.7NH 350MA 420MOHM SM Pulse Electronics Power	27,478	0.10	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	BSCQ	Active	Multilayer	Ceramic	4.7 nH	±0.2nH	350 mA	-	Unshielded	420mOhm Max	14 @ 500MHz	6.4GHz	-	-55°C ~ 125°C	500 MHz	-	Surface Mount	0201
BSCH000603033N3S00 FIXED IND 3.3NH 320MA 230MOHM SM Pulse Electronics Power	24,133	0.10	RFQ	Datasheet	0201 (0603 Metric)	Tape & Reel (TR),Cut Tape (CT)	BSCH	Active	Multilayer	Ceramic	3.3 nH	±0.3nH	320 mA	-	Unshielded	230mOhm Max	4 @ 100MHz	6.7GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0201
