Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Material-Core	Inductance	Tolerance	CurrentRating(Amps)	Current-Saturation(Isat)	Shielding	DCResistance(DCR)	Q@Freq	Frequency-SelfResonant	Ratings	OperatingTemperature	InductanceFrequency-Test	Features	MountingType	Size/Dimension
2020R-36J FIXED IND 3.3UH 390MA 1.3 OHM TH API Delevan Inc.	2,450	21.09	RFQ	Datasheet	Radial, Vertical	Bulk	2020R	Active	Toroidal	Iron	3.3 µH	±5%	390 mA	-	Unshielded	1.3Ohm Max	60 @ 7.9MHz	70MHz	-	-55°C ~ 125°C	7.9 MHz	-	Through Hole	-
2020R-38J FIXED IND 3.9UH 360MA 1.5 OHM TH API Delevan Inc.	3,708	21.09	RFQ	Datasheet	Radial, Vertical	Bulk	2020R	Active	Toroidal	Iron	3.9 µH	±5%	360 mA	-	Unshielded	1.5Ohm Max	60 @ 7.9MHz	60MHz	-	-55°C ~ 125°C	7.9 MHz	-	Through Hole	-
2020R-40J FIXED IND 4.7UH 330MA 1.8 OHM TH API Delevan Inc.	3,190	21.09	RFQ	Datasheet	Radial, Vertical	Bulk	2020R	Active	Toroidal	Iron	4.7 µH	±5%	330 mA	-	Unshielded	1.8Ohm Max	60 @ 7.9MHz	50MHz	-	-55°C ~ 125°C	7.9 MHz	-	Through Hole	-
2020R-42J FIXED IND 5.6UH 310MA 2 OHM TH API Delevan Inc.	2,827	21.09	RFQ	Datasheet	Radial, Vertical	Bulk	2020R	Active	Toroidal	Iron	5.6 µH	±5%	310 mA	-	Unshielded	2Ohm Max	60 @ 7.9MHz	45MHz	-	-55°C ~ 125°C	7.9 MHz	-	Through Hole	-
2020R-44J FIXED IND 6.8UH 300MA 2.2 OHM TH API Delevan Inc.	2,566	21.09	RFQ	Datasheet	Radial, Vertical	Bulk	2020R	Active	Toroidal	Iron	6.8 µH	±5%	300 mA	-	Unshielded	2.2Ohm Max	60 @ 7.9MHz	40MHz	-	-55°C ~ 125°C	7.9 MHz	-	Through Hole	-
2020R-46J FIXED IND 8.2UH 290MA 2.4 OHM TH API Delevan Inc.	2,349	21.09	RFQ	Datasheet	Radial, Vertical	Bulk	2020R	Active	Toroidal	Iron	8.2 µH	±5%	290 mA	-	Unshielded	2.4Ohm Max	60 @ 7.9MHz	37MHz	-	-55°C ~ 125°C	7.9 MHz	-	Through Hole	-
2020R-48J FIXED IND 10UH 280MA 2.6 OHM TH API Delevan Inc.	2,048	21.09	RFQ	Datasheet	Radial, Vertical	Bulk	2020R	Active	Toroidal	Iron	10 µH	±5%	280 mA	-	Unshielded	2.6Ohm Max	60 @ 7.9MHz	35MHz	-	-55°C ~ 125°C	7.9 MHz	-	Through Hole	-
5400-107J FIXED IND 100MH 65MA 9.89 OHM TH API Delevan Inc.	3,807	21.34	RFQ	Datasheet	Radial, Vertical Cylinder	Bulk	5400	Active	-	Iron Powder	100 mH	±5%	65 mA	65mA	Unshielded	9.89Ohm Max	-	21kHz	-	-55°C ~ 125°C	1 kHz	-	Through Hole	-
5400-686J FIXED IND 68MH 78MA 6.47 OHM TH API Delevan Inc.	3,465	21.34	RFQ	Datasheet	Radial, Vertical Cylinder	Bulk	5400	Active	-	Iron Powder	68 mH	±5%	78 mA	78mA	Unshielded	6.47Ohm Max	-	48kHz	-	-55°C ~ 125°C	1 kHz	-	Through Hole	-
5400-826J FIXED IND 82MH 71MA 8.89 OHM TH API Delevan Inc.	3,905	21.34	RFQ	Datasheet	Radial, Vertical Cylinder	Bulk	5400	Active	-	Iron Powder	82 mH	±5%	71 mA	71mA	Unshielded	8.89Ohm Max	-	35kHz	-	-55°C ~ 125°C	1 kHz	-	Through Hole	-
5400R-107J FIXED IND 100MH 65MA 9.89 OHM TH API Delevan Inc.	3,130	21.34	RFQ	Datasheet	Radial, Vertical Cylinder	Bulk	5400R	Active	-	Iron Powder	100 mH	±5%	65 mA	65mA	Unshielded	9.89Ohm Max	-	21kHz	-	-55°C ~ 125°C	1 kHz	-	Through Hole	-
5400R-686J FIXED IND 68MH 78MA 6.47 OHM TH API Delevan Inc.	3,933	21.34	RFQ	Datasheet	Radial, Vertical Cylinder	Bulk	5400R	Active	-	Iron Powder	68 mH	±5%	78 mA	78mA	Unshielded	6.47Ohm Max	-	48kHz	-	-55°C ~ 125°C	1 kHz	-	Through Hole	-
5400R-826J FIXED IND 82MH 71MA 8.89 OHM TH API Delevan Inc.	2,275	21.34	RFQ	Datasheet	Radial, Vertical Cylinder	Bulk	5400R	Active	-	Iron Powder	82 mH	±5%	71 mA	71mA	Unshielded	8.89Ohm Max	-	35kHz	-	-55°C ~ 125°C	1 kHz	-	Through Hole	-

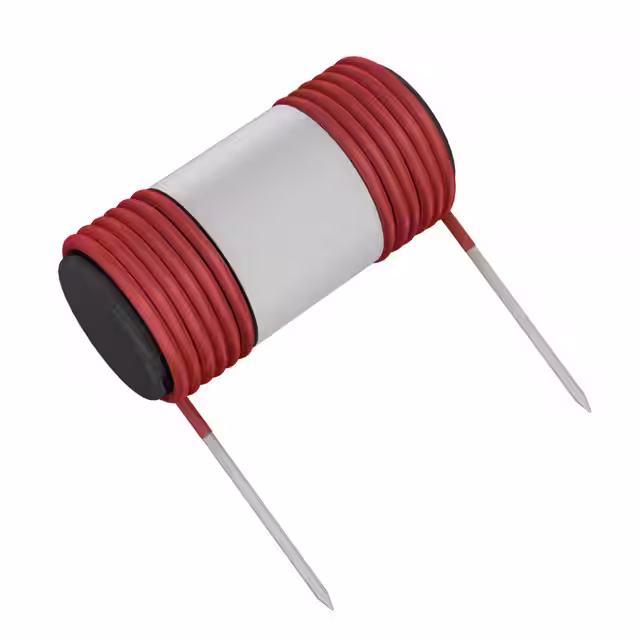

15HC-10 FIXED IND 10UH 15A 10 MOHM TH API Delevan Inc.	3,578	21.46	RFQ	Datasheet	Radial, Horizontal Cylinder (Open)	Bulk	HC	Active	Drum Core, Wirewound	Ferrite	10 µH	±10%	15 A	17A	Unshielded	10mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-

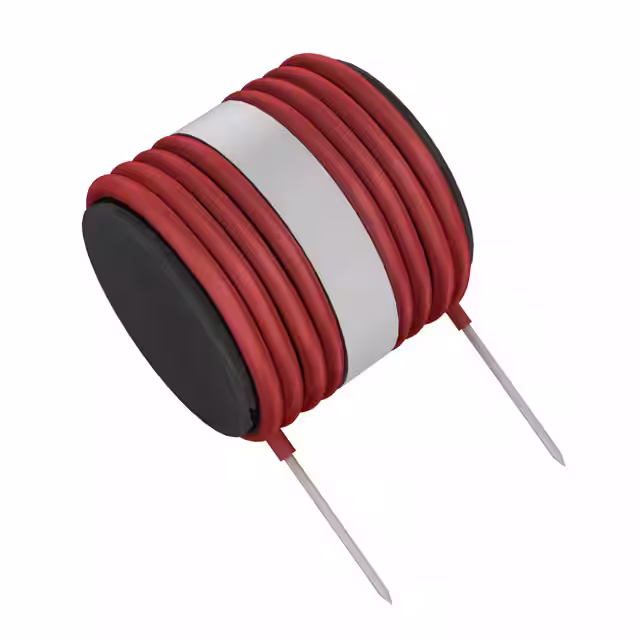

15HC-100 FIXED IND 100UH 15A 30 MOHM TH API Delevan Inc.	3,064	21.46	RFQ	Datasheet	Radial, Horizontal Cylinder (Open)	Bulk	HC	Active	Drum Core, Wirewound	Ferrite	100 µH	±10%	15 A	5A	Unshielded	30mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-

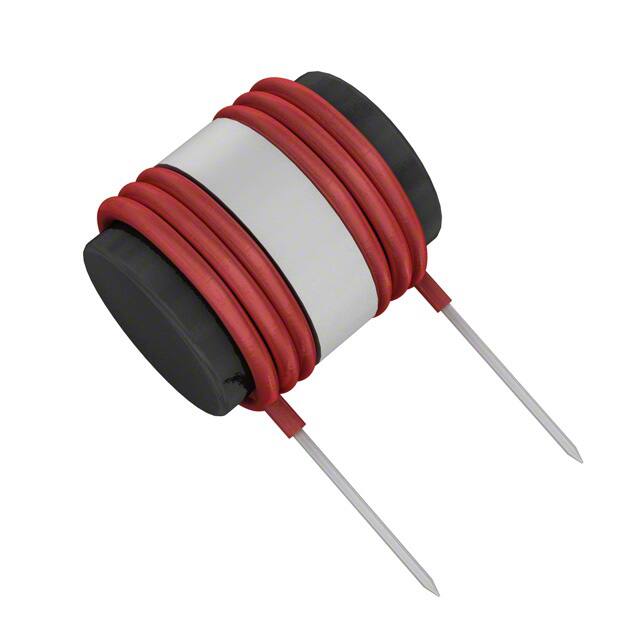

15HC-27 FIXED IND 27UH 15A 15 MOHM TH API Delevan Inc.	2,587	21.46	RFQ	Datasheet	Radial, Horizontal Cylinder (Open)	Bulk	HC	Active	Drum Core, Wirewound	Ferrite	27 µH	±10%	15 A	14A	Unshielded	15mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-

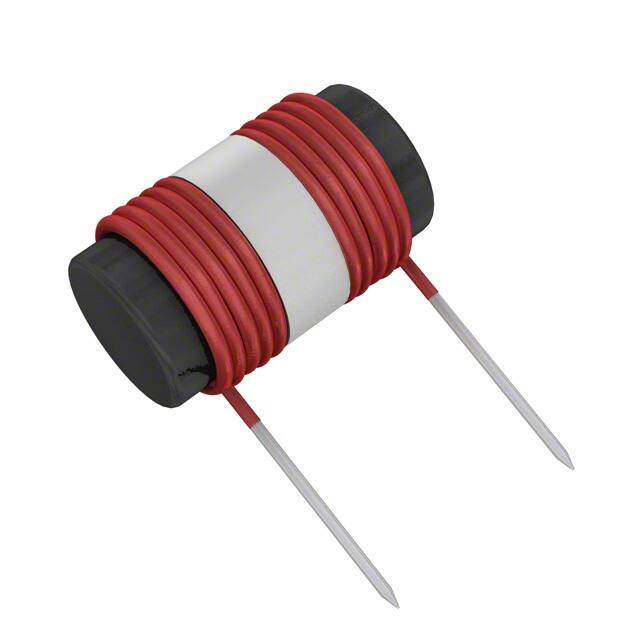

15HC-5 FIXED IND 5UH 15A 8 MOHM TH API Delevan Inc.	3,742	21.46	RFQ	Datasheet	Radial, Horizontal Cylinder (Open)	Bulk	HC	Active	Drum Core, Wirewound	Ferrite	5 µH	±10%	15 A	20A	Unshielded	8mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-
15HC-50 FIXED IND 50UH 15A 20 MOHM TH API Delevan Inc.	2,951	21.46	RFQ	Datasheet	Radial, Horizontal Cylinder (Open)	Bulk	HC	Active	Drum Core, Wirewound	Ferrite	50 µH	±10%	15 A	9A	Unshielded	20mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-
15HCR-10 FIXED IND 10UH 15A 10 MOHM TH API Delevan Inc.	3,528	21.46	RFQ	Datasheet	Radial, Horizontal Cylinder (Open)	Bulk	HCR	Active	Drum Core, Wirewound	Ferrite	10 µH	±10%	15 A	17A	Unshielded	10mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-
15HCR-100 FIXED IND 100UH 15A 30 MOHM TH API Delevan Inc.	2,786	21.46	RFQ	Datasheet	Radial, Horizontal Cylinder (Open)	Bulk	HCR	Active	Drum Core, Wirewound	Ferrite	100 µH	±10%	15 A	5A	Unshielded	30mOhm Max	-	-	-	-	1 kHz	-	Through Hole	-
