Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Material-Core	Inductance	Tolerance	CurrentRating(Amps)	Current-Saturation(Isat)	Shielding	DCResistance(DCR)	Q@Freq	Frequency-SelfResonant	Ratings	OperatingTemperature	InductanceFrequency-Test	Features	MountingType	Size/Dimension

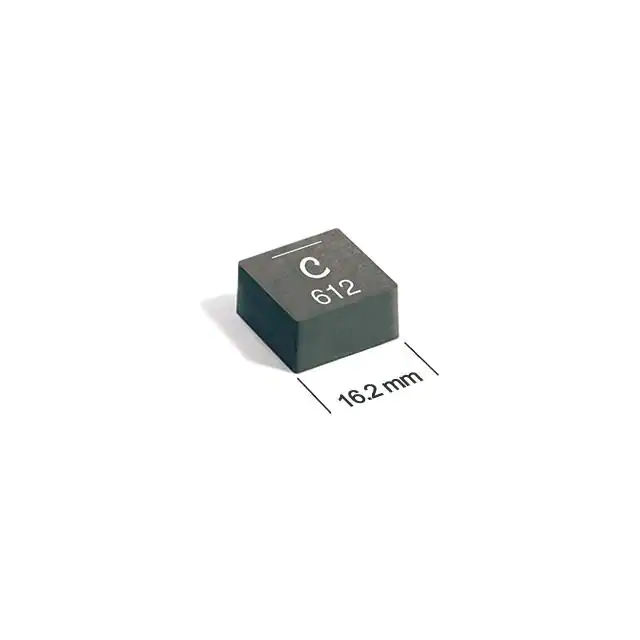

XAL1580-401MED POWER INDUCTOR, SHIELDED, 20% TO COILCRAFT	149	7.15	RFQ	Datasheet	Nonstandard	Strip	XAL1580	Active	-	Metal Composite	400 nH	-	60 A	111A	Shielded	0.7mOhm Max	-	53MHz	AEC-Q200	-40°C ~ 165°C	1 MHz	-	Surface Mount	-
XAL1580-612MED POWER INDUCTOR, SHIELDED, 20% TO COILCRAFT	117	7.15	RFQ	Datasheet	Nonstandard	Strip	XAL1580	Active	-	Metal Composite	6.1 µH	-	22.6 A	31A	Shielded	6.79mOhm Max	-	11.7MHz	AEC-Q200	-40°C ~ 165°C	1 MHz	-	Surface Mount	-

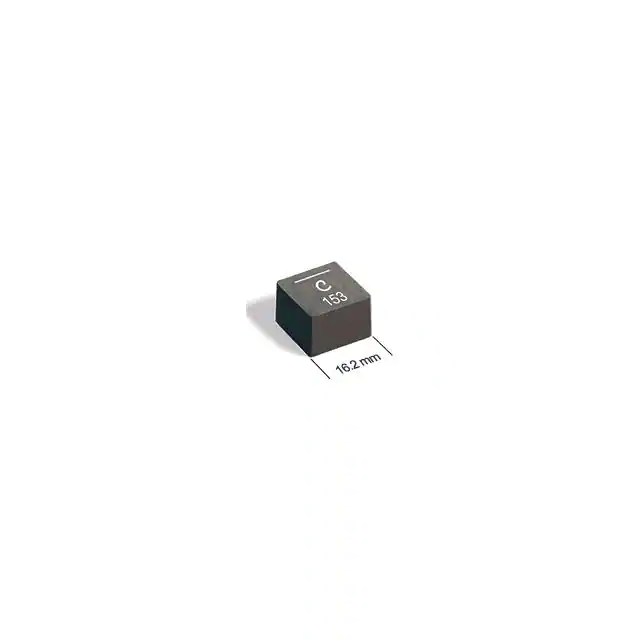

XAL1510-153MED POWER INDUCTOR, SHIELDED, 20% TO COILCRAFT	6,382	8.13	RFQ	Datasheet	Nonstandard	Strip	XAL1510	Active	-	Metal Composite	15 µH	-	18 A	23A	Shielded	12.4mOhm Max	-	8MHz	AEC-Q200	-40°C ~ 165°C	1 MHz	-	Surface Mount	-
XAL1510-333MED POWER INDUCTOR, SHIELDED, 20% TO COILCRAFT	4,206	8.13	RFQ	Datasheet	Nonstandard	Strip	XAL1510	Active	-	Metal Composite	33 µH	-	-	16.7A	Shielded	20mOhm Max	-	5.8MHz	AEC-Q200	-40°C ~ 165°C	1 MHz	-	Surface Mount	-
XAL1510-472MED POWER INDUCTOR, SHIELDED, 20% TO COILCRAFT	1,281	8.13	RFQ	Datasheet	Nonstandard	Strip	XAL1510	Active	-	Metal Composite	4.7 µH	-	29 A	39A	Shielded	3.8mOhm Max	-	12.7MHz	AEC-Q200	-40°C ~ 165°C	1 MHz	-	Surface Mount	-
XAL1510-103MED POWER INDUCTOR, SHIELDED, 20% TO COILCRAFT	502	8.13	RFQ	Datasheet	Nonstandard	Strip	XAL1510	Active	-	Metal Composite	10 µH	-	22 A	26.3A	Shielded	9mOhm Max	-	10.1MHz	AEC-Q200	-40°C ~ 165°C	1 MHz	-	Surface Mount	-
XAL1510-682MED POWER INDUCTOR, SHIELDED, 20% TO COILCRAFT	719	8.13	RFQ	Datasheet	Nonstandard	Strip	XAL1510	Active	-	Metal Composite	6.8 µH	-	26 A	36A	Shielded	4.6mOhm Max	-	11.5MHz	AEC-Q200	-40°C ~ 165°C	1 MHz	-	Surface Mount	-
XAL1510-822MED POWER INDUCTOR, SHIELDED, 20% TO COILCRAFT	662	8.13	RFQ	Datasheet	Nonstandard	Strip	XAL1510	Active	-	Metal Composite	8.2 µH	-	24 A	30A	Shielded	7.5mOhm Max	-	10.8MHz	AEC-Q200	-40°C ~ 165°C	1 MHz	-	Surface Mount	-
XAL1510-223MED POWER INDUCTOR, SHIELDED, 20% TO COILCRAFT	118	8.13	RFQ	Datasheet	Nonstandard	Strip	XAL1510	Active	-	Metal Composite	22 µH	-	14 A	18.7A	Shielded	16mOhm Max	-	6.3MHz	AEC-Q200	-40°C ~ 165°C	1 MHz	-	Surface Mount	-
0603DC-15NXJRW FIXED IND 15NH 2.04A 74MOHM SMD COILCRAFT	719	0.89	RFQ	Datasheet	0603 (1608 Metric)	Strip	0603DC	Active	Drum Core, Wirewound	Ceramic	15 nH	±5%	2.04 A	-	Unshielded	74mOhm Max	87 @ 900MHz	3.5GHz	AEC-Q200	-40°C ~ 125°C	250 MHz	-	Surface Mount	0603
0402DC-1N7XJRW FIXED IND 1.7NH 2.1A 35MOHM SMD COILCRAFT	978	1.11	RFQ	Datasheet	0402 (1005 Metric)	Strip	0402DC	Active	Drum Core, Wirewound	Ceramic	1.7 nH	±5%	2.1 A	-	Unshielded	35mOhm Max	62 @ 900MHz	18GHz	AEC-Q200	-40°C ~ 125°C	250 MHz	-	Surface Mount	0402
0402DC-23NXJRW FIXED IND 23NH 970MA 176.5 MOHM COILCRAFT	861	1.11	RFQ	Datasheet	0402 (1005 Metric)	Strip	0402DC	Active	Drum Core, Wirewound	Ceramic	23 nH	±5%	970 mA	-	Unshielded	176.5mOhm Max	68 @ 900MHz	4.98GHz	AEC-Q200	-40°C ~ 125°C	250 MHz	-	Surface Mount	0402
0402DC-8N0XJRW FIXED IND 8NH 1.6A 70 MOHM SMD COILCRAFT	796	1.11	RFQ	Datasheet	0402 (1005 Metric)	Strip	0402DC	Active	Drum Core, Wirewound	Ceramic	8 nH	±5%	1.6 A	-	Unshielded	70mOhm Max	71 @ 900MHz	8.6GHz	AEC-Q200	-40°C ~ 125°C	250 MHz	-	Surface Mount	0402
0402DC-9N1XJRW FIXED IND 9.1NH 1.6A 70MOHM SMD COILCRAFT	640	1.11	RFQ	Datasheet	0402 (1005 Metric)	Strip	0402DC	Active	Drum Core, Wirewound	Ceramic	9.1 nH	±5%	1.6 A	-	Unshielded	70mOhm Max	75 @ 900MHz	7.15GHz	AEC-Q200	-40°C ~ 125°C	250 MHz	-	Surface Mount	0402
0402DC-20NXJRW FIXED IND 20NH 1A 162.7MOHM SMD COILCRAFT	538	1.11	RFQ	Datasheet	0402 (1005 Metric)	Strip	0402DC	Active	Drum Core, Wirewound	Ceramic	20 nH	±5%	1 A	-	Unshielded	162.7mOhm Max	67 @ 900MHz	5.11GHz	AEC-Q200	-40°C ~ 125°C	250 MHz	-	Surface Mount	0402
0402DC-6N2XJRW FIXED IND 6.2NH 1.8A 57MOHM SMD COILCRAFT	162	1.11	RFQ	Datasheet	0402 (1005 Metric)	Strip	0402DC	Active	Drum Core, Wirewound	Ceramic	6.2 nH	±5%	1.8 A	-	Unshielded	57mOhm Max	71 @ 900MHz	9.2GHz	AEC-Q200	-40°C ~ 125°C	250 MHz	-	Surface Mount	0402
0402DC-2N8XJRW FIXED IND 2.8NH 2.1A 37MOHM SMD COILCRAFT	13,887	1.11	RFQ	Datasheet	0402 (1005 Metric)	Strip	0402DC	Active	Drum Core, Wirewound	Ceramic	2.8 nH	±5%	2.1 A	-	Unshielded	37mOhm Max	57 @ 900MHz	16.8GHz	AEC-Q200	-40°C ~ 125°C	250 MHz	-	Surface Mount	0402
0402DC-56NXJRW FIXED IND 56NH 460MA 690MOHM SMD COILCRAFT	3,323	1.11	RFQ	Datasheet	0402 (1005 Metric)	Strip	0402DC	Active	Drum Core, Wirewound	Ceramic	56 nH	±5%	460 mA	-	Unshielded	690mOhm Max	54 @ 900MHz	3.21GHz	AEC-Q200	-40°C ~ 125°C	250 MHz	-	Surface Mount	0402
0402DC-43NXJRW FIXED IND 43NH 640MA 430MOHM SMD COILCRAFT	2,584	1.11	RFQ	Datasheet	0402 (1005 Metric)	Strip	0402DC	Active	Drum Core, Wirewound	Ceramic	43 nH	±5%	640 mA	-	Unshielded	430mOhm Max	55 @ 900MHz	3.82GHz	AEC-Q200	-40°C ~ 125°C	250 MHz	-	Surface Mount	0402
0402DC-5N0XJRW FIXED IND 5NH 1.85A 48 MOHM SMD COILCRAFT	2,194	1.11	RFQ	Datasheet	0402 (1005 Metric)	Strip	0402DC	Active	Drum Core, Wirewound	Ceramic	5 nH	±5%	1.85 A	-	Unshielded	48mOhm Max	68 @ 900MHz	12.15GHz	AEC-Q200	-40°C ~ 125°C	250 MHz	-	Surface Mount	0402
